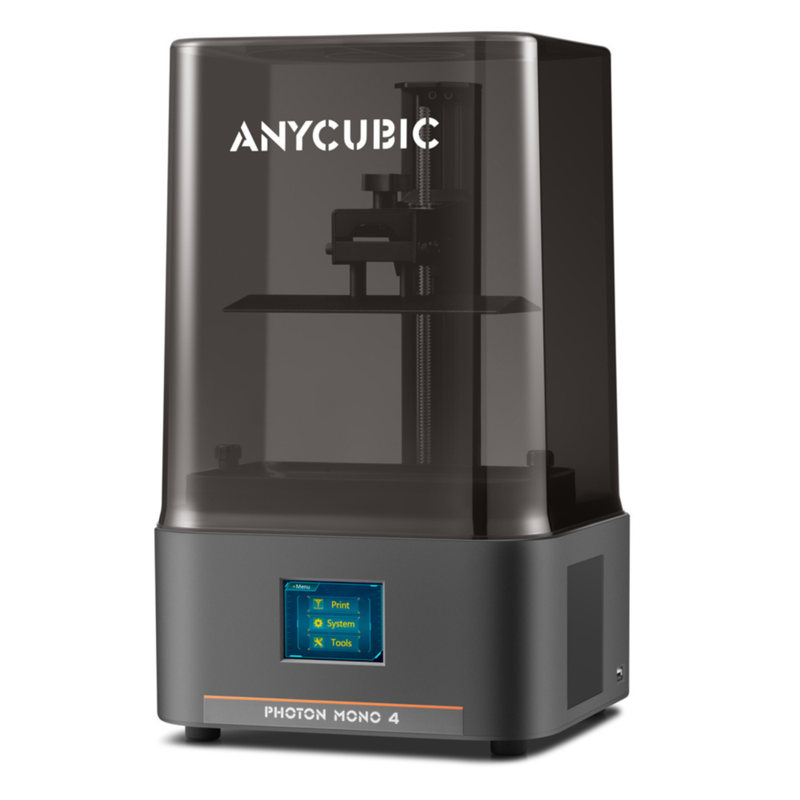

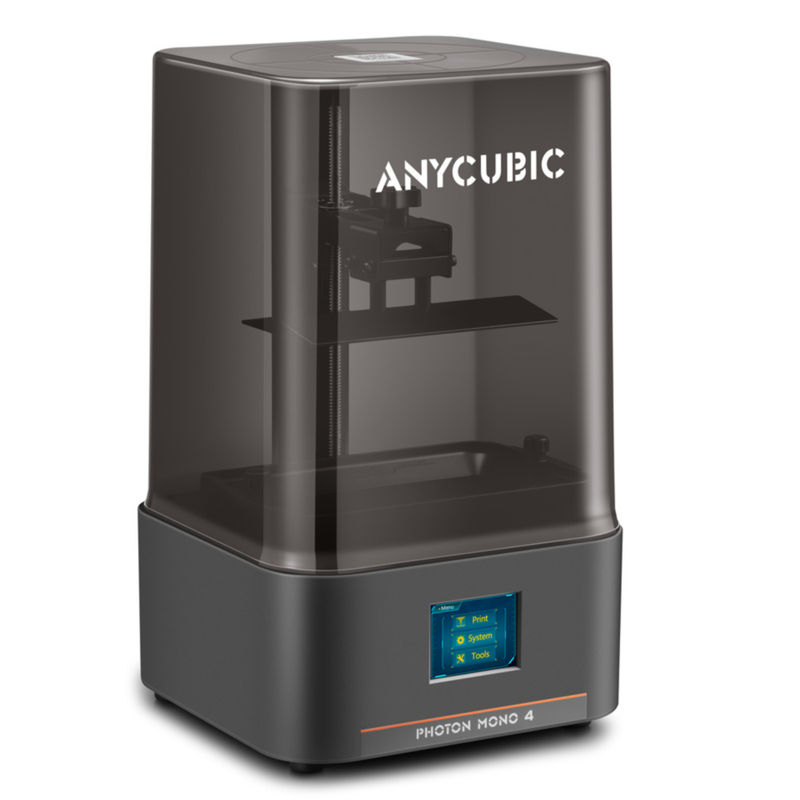

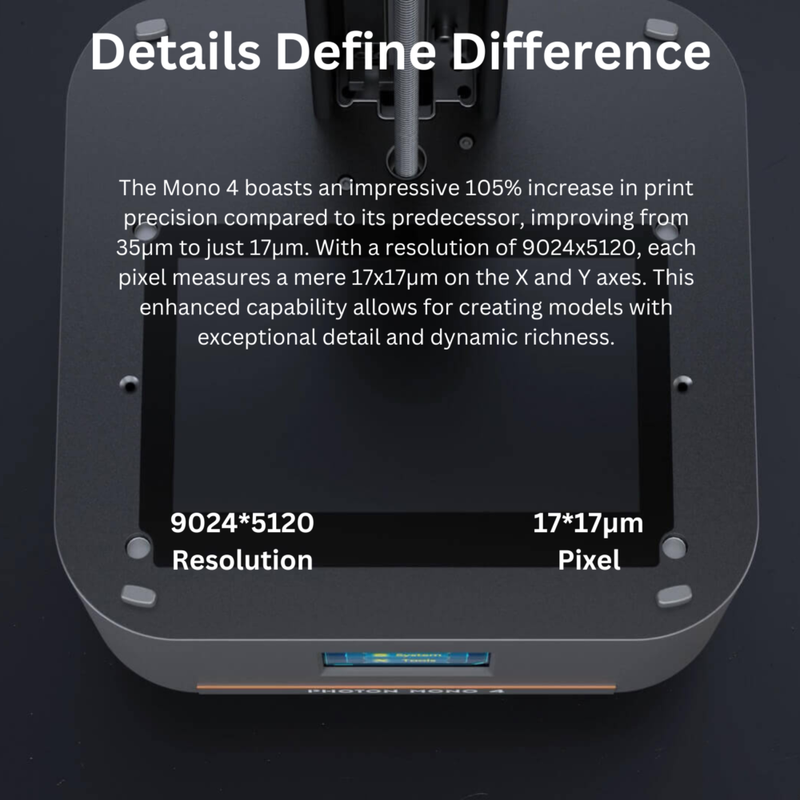

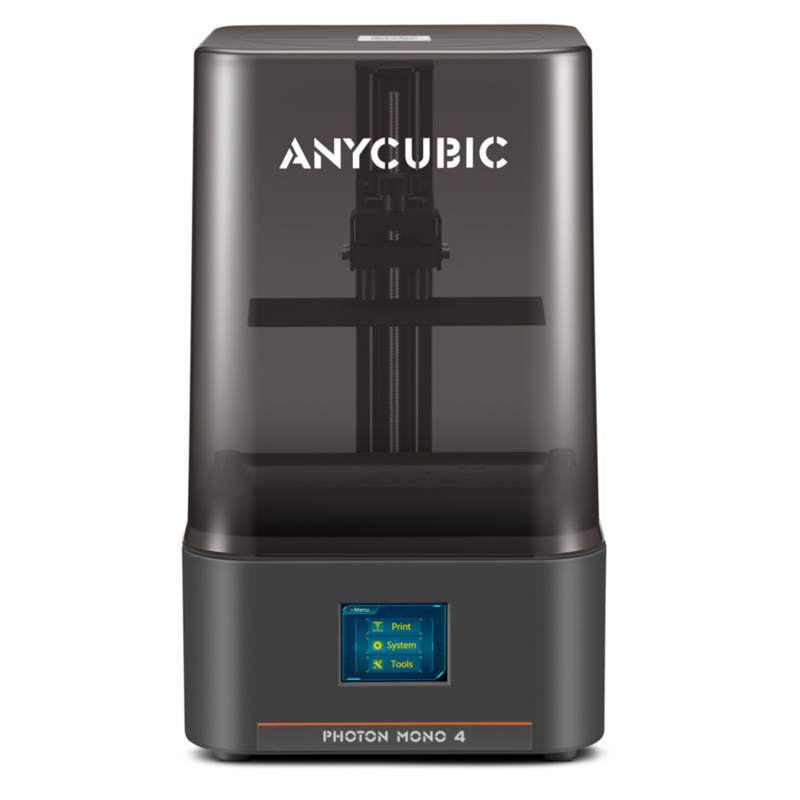

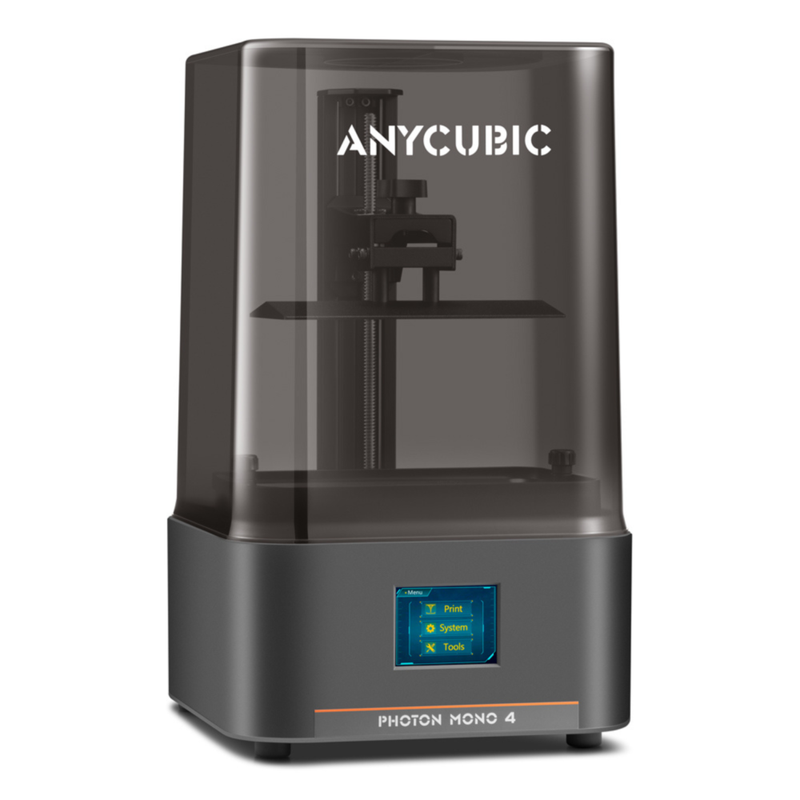

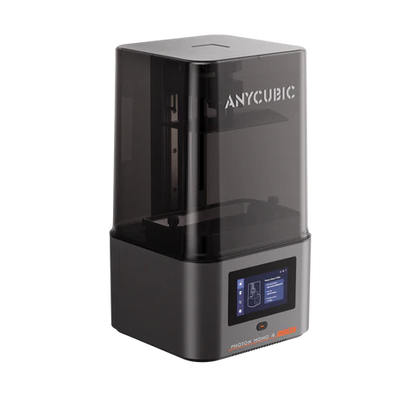

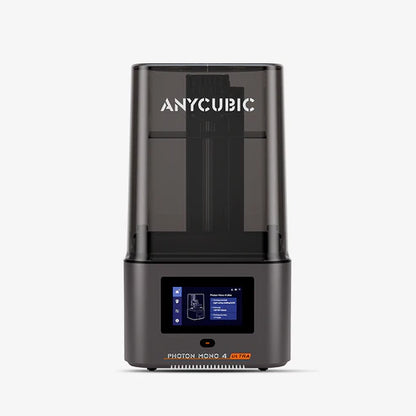

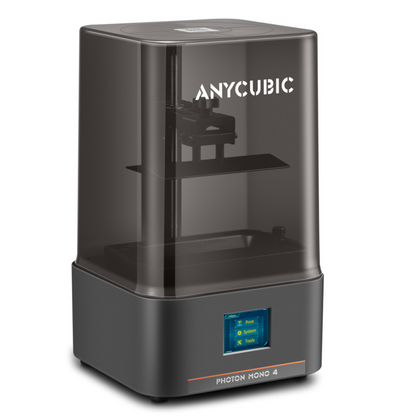

The Photon Mono 4 is an entry-level MSLA resin printer, but it offers surprisingly high detail for its size. Its biggest selling point is the 7-inch 10K monochrome LCD with 17 × 17 μm XY resolution.
Feature
Photon Mono 4
Technology
MSLA resin
LCD
7" 10K monochrome
LCD resolution
9024 × 5120
XY resolution
17 × 17 μm
Build volume
153.4 × 87 × 165 mm (2.2 L)
Layer height
0.03–0.15 mm
Max speed
70 mm/h with high-speed resin
Standard resin speed
Up to 50 mm/h

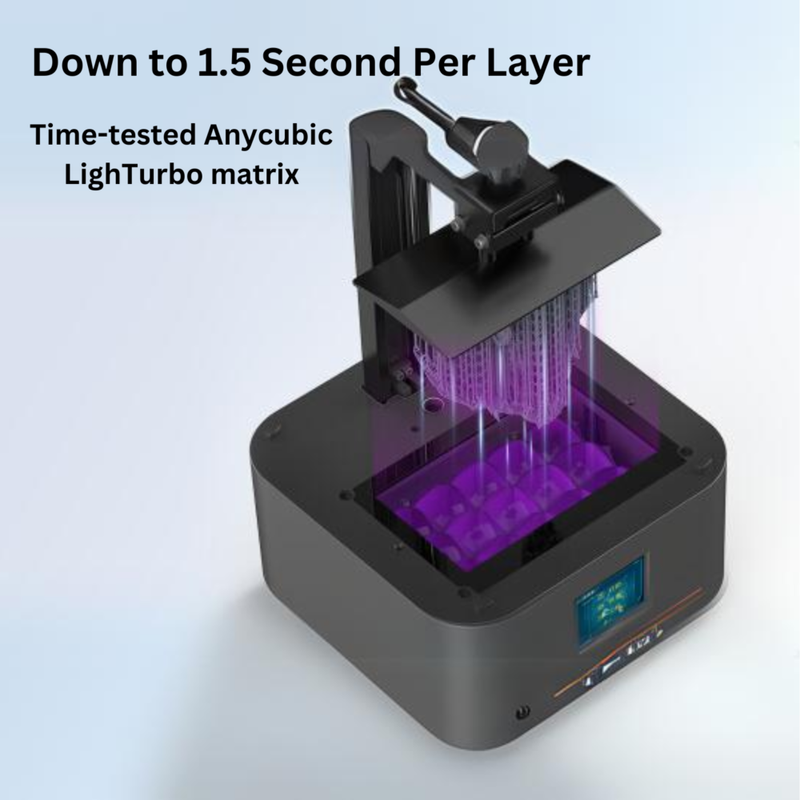

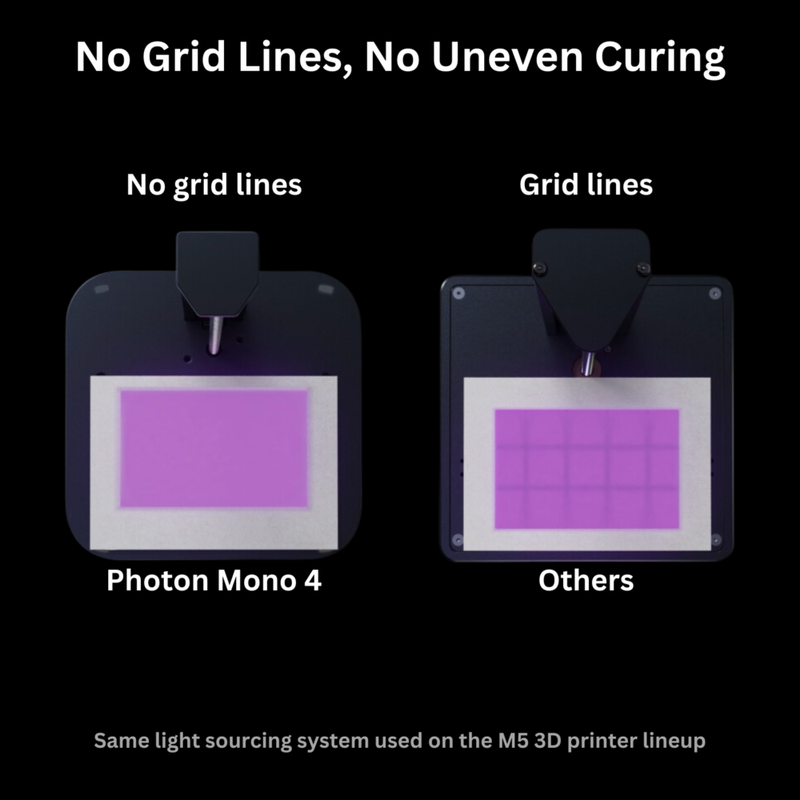

Light source
Parallel Matrix upgrade light source
Light intensity
~3000 μW/cm²
Leveling
4-point manual leveling
Release film
FEP
Z-axis
Single linear rail, 30 μm accuracy
Build plate
Laser-engraved
Connectivity
USB
Screen
2.8" touch-control
Power-loss recovery
Yes
Resin auto-fill
No
Heated resin vat
No
Weight
4 kg
17 μm XY resolution: Very sharp detail for miniatures, figurines, jewelry and small models.
10K monochrome LCD: Excellent detail for an entry-level printer.

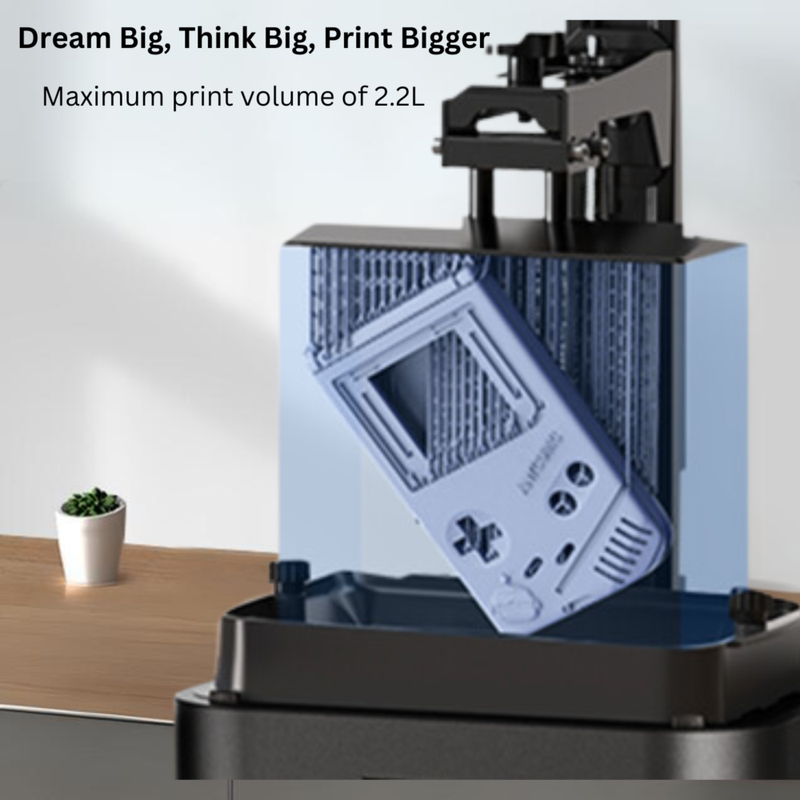

2.2 L build volume: 153.4 × 87 × 165 mm is enough for most small-to-medium resin prints.
Up to 70 mm/h: When using Anycubic high-speed resin; standard resin is rated up to 50 mm/h.

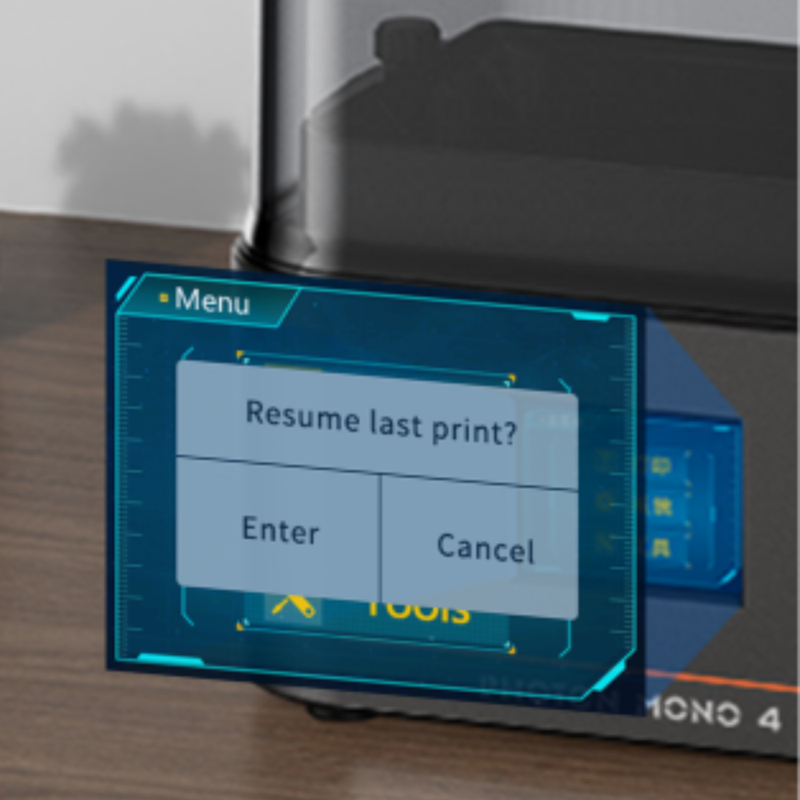

Power-loss resume: Can continue a print after an interruption.

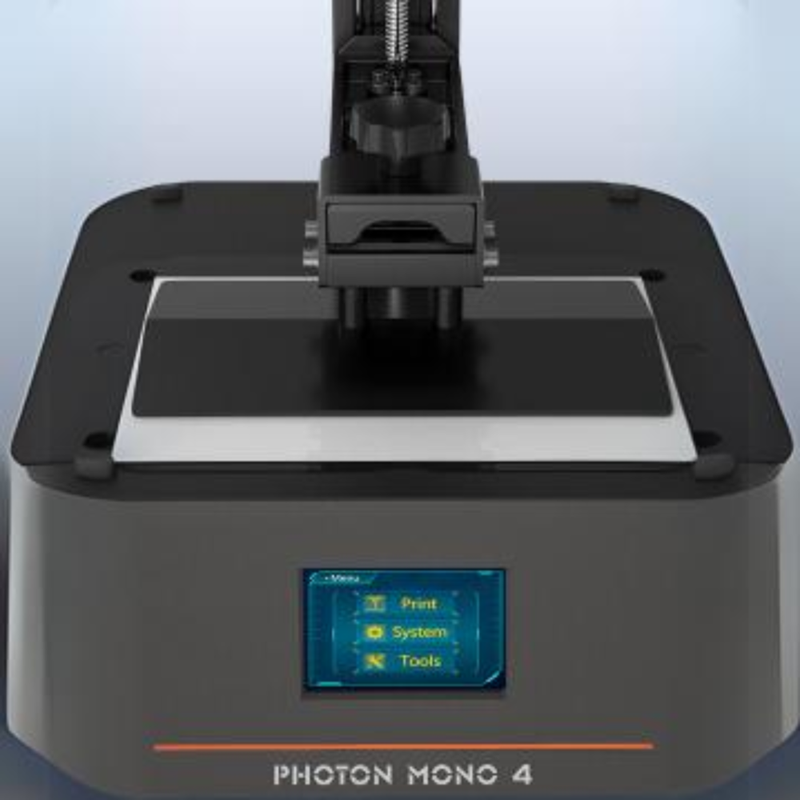

Laser-engraved build plate: Designed to improve first-layer adhesion.
Replaceable scratch-resistant screen protector.
Optional activated-carbon air purifier: Available separately to help with resin odor.
Supports standard, ABS-like, water-washable, plant-based and high-speed .
