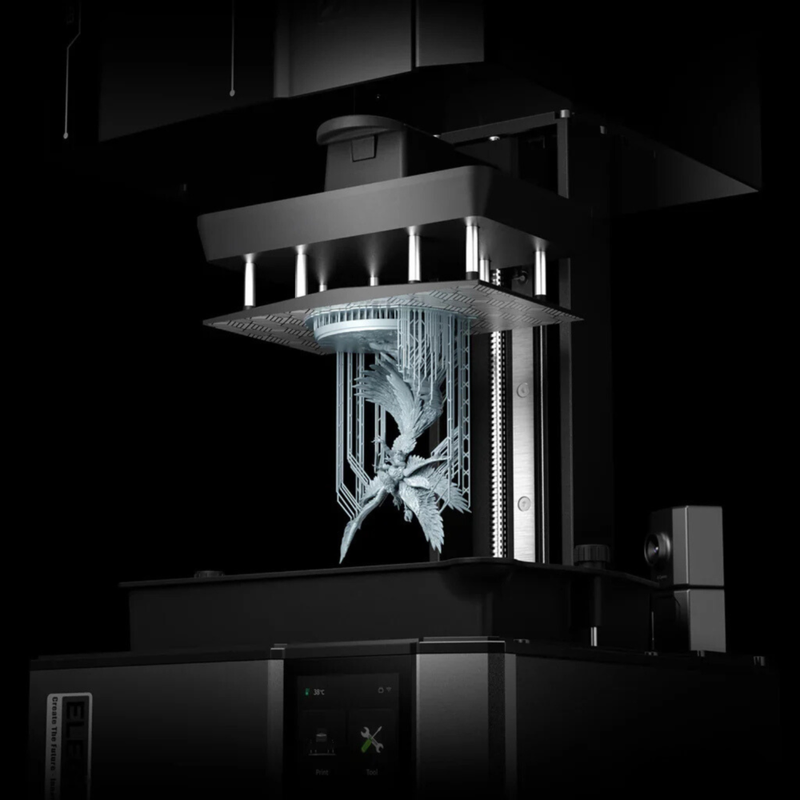

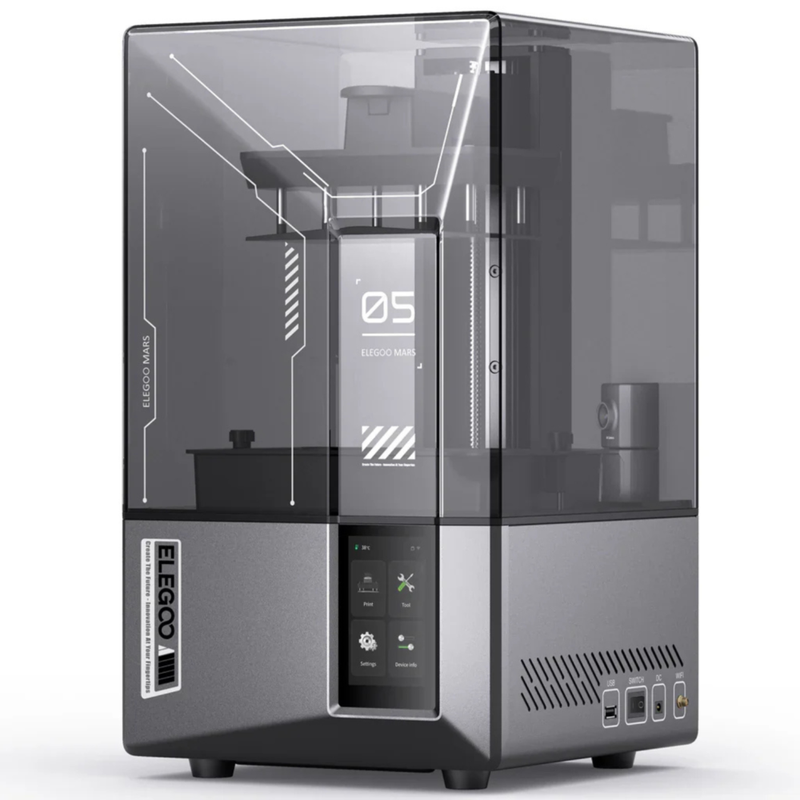

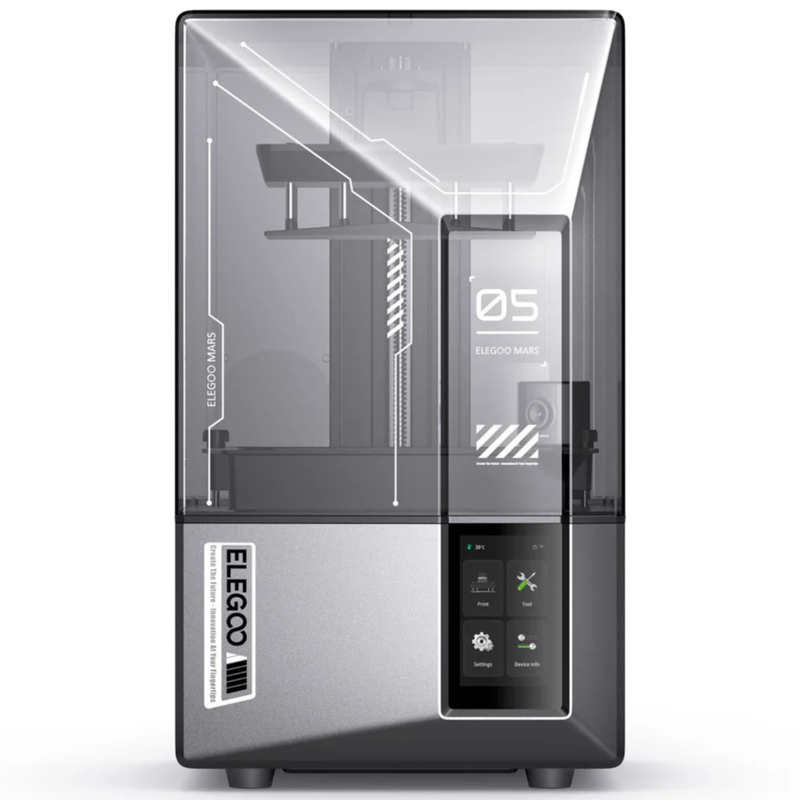

The Mars 5 Ultra is a compact, high-detail MSLA resin printer designed especially for miniatures, figures, jewelry prototypes, and small precision parts.
Feature
Mars 5 Ultra
Printing technology
MSLA
LCD
7-inch 9K monochrome LCD
XY resolution
18 × 18 μm

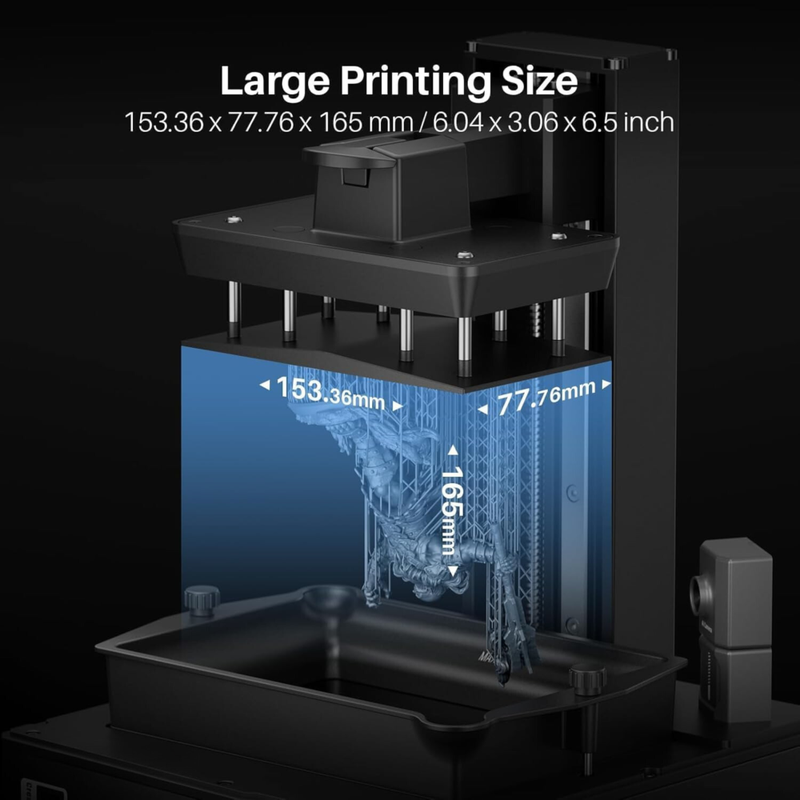

Build volume
153.36 × 77.76 × 165 mm
Max print speed
150 mm/h
Layer thickness
0.01–0.20 mm
Light source
405 nm COB
Z-axis accuracy
0.02 mm
Leveling
One-click automatic leveling
Release system
Tilt Release Technology
Camera
Built-in AI camera
Connectivity
Wi-Fi + USB
Screen
4-inch capacitive touchscreen
Power recovery
Yes
Resin detection
Shortage + residue detection
Overheat protection
Yes
Weight
8.8 kg
Printer dimensions
260 × 268 × 451.5 mm
What makes it special

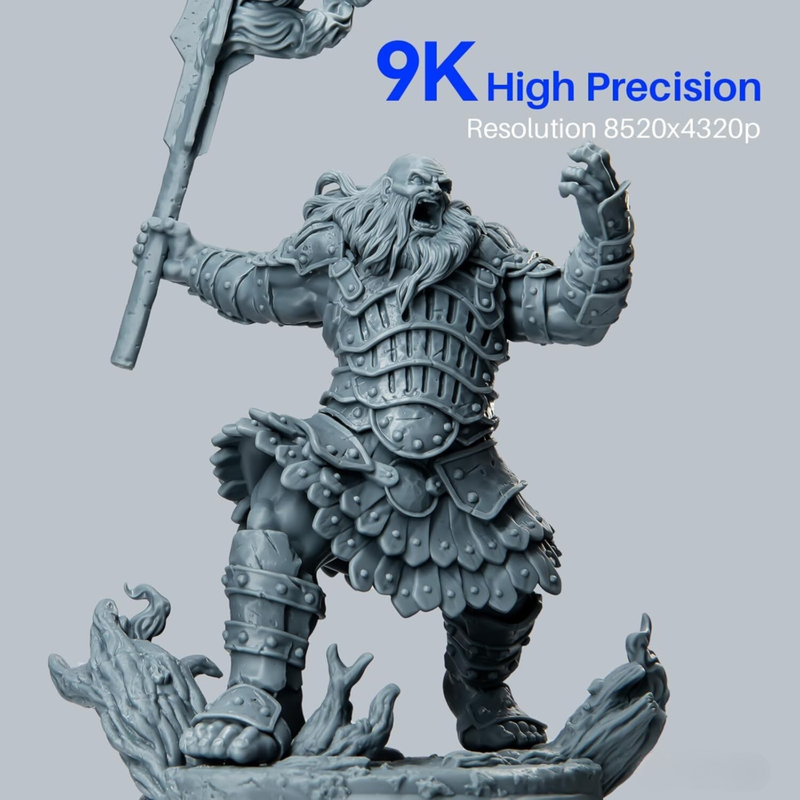

9K resolution + 18 μm XY resolution gives excellent fine detail for miniatures and small parts.
Tilt Release Technology reduces the force needed to separate prints from the release film and enables speeds up to 150 mm/h.

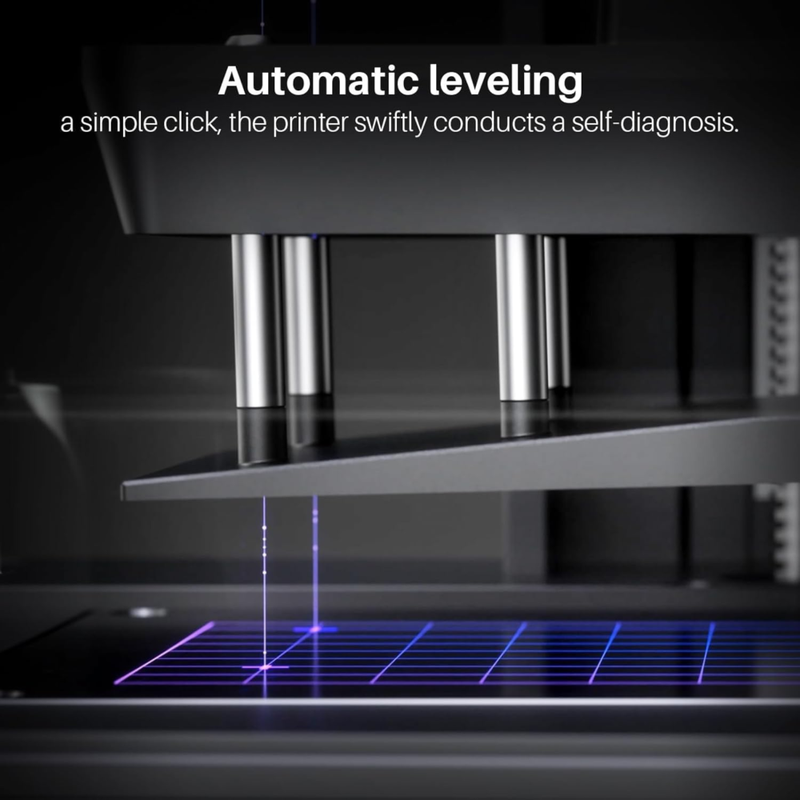

Automatic leveling makes setup considerably easier than older Mars models.

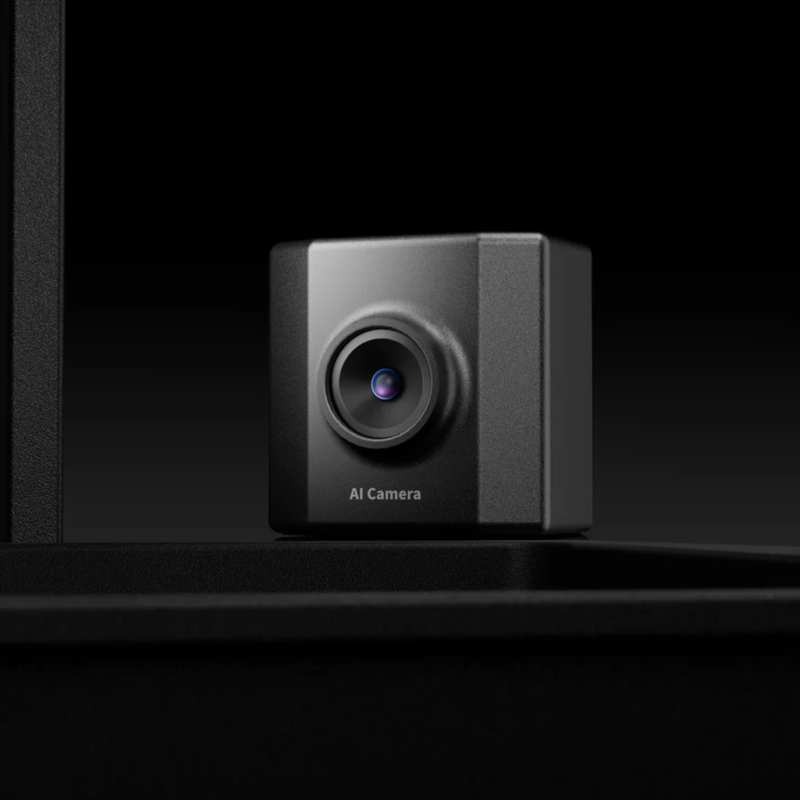

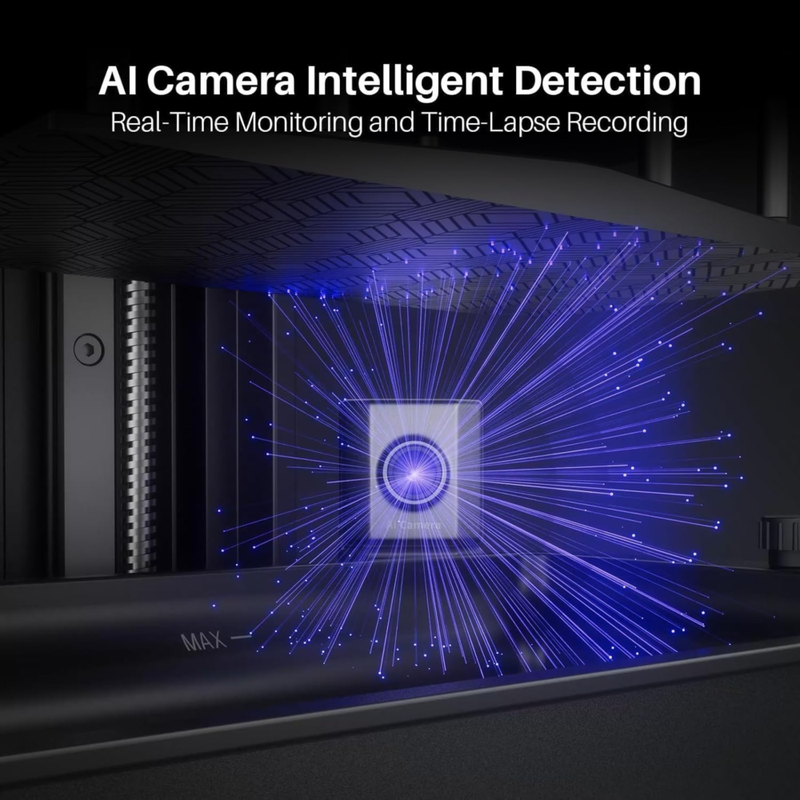

AI camera can detect issues such as an empty build plate and model warping, while also allowing remote monitoring and timelapse recording.

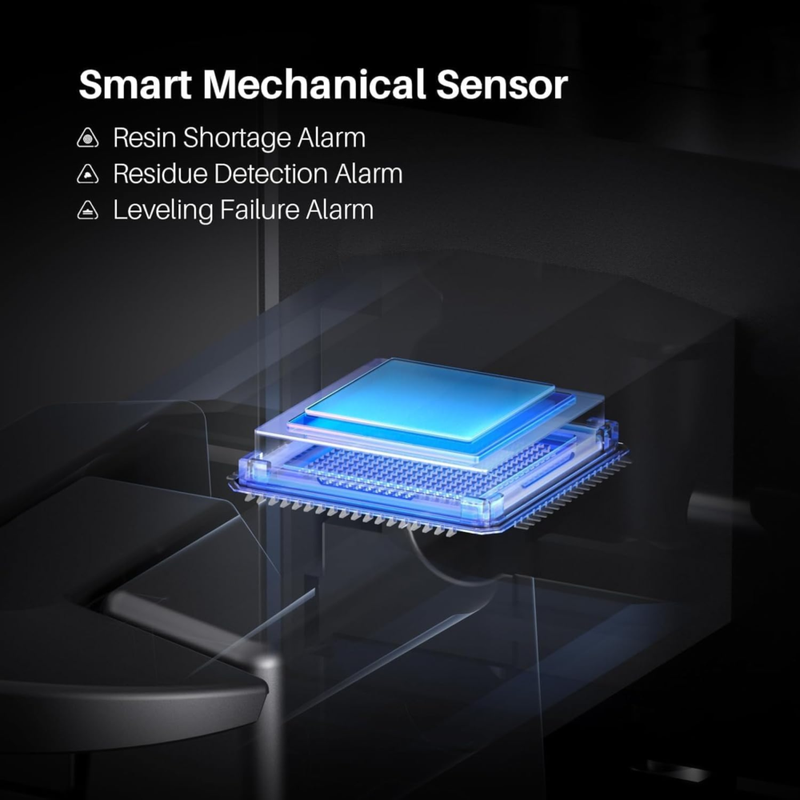

Smart mechanical sensor provides resin-shortage, residue and leveling-failure alerts.
Self-check function checks the printer before printing and can remind you when the release film is nearing its rated usage.
Power-loss resume lets the printer continue after an interruption.
Wi-Fi cluster printing allows multiple printers to be managed together.

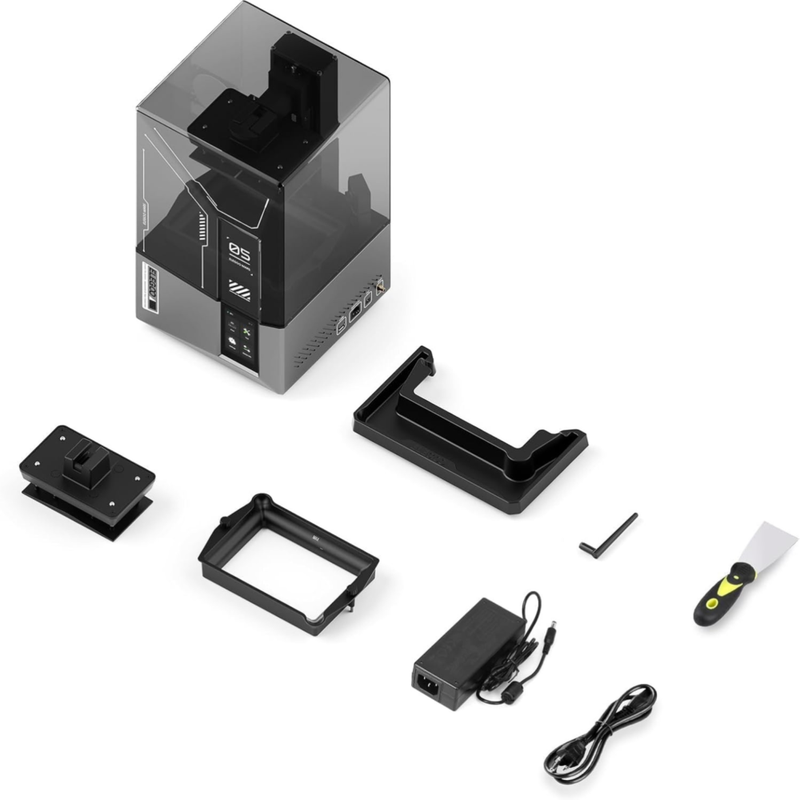

Quick-release build plate and dual-pour-spout resin vat make cleaning and resin handling easier.
9H tempered glass protects the LCD.
Supports standard, ABS-like, water-washable and plant-based resins.
