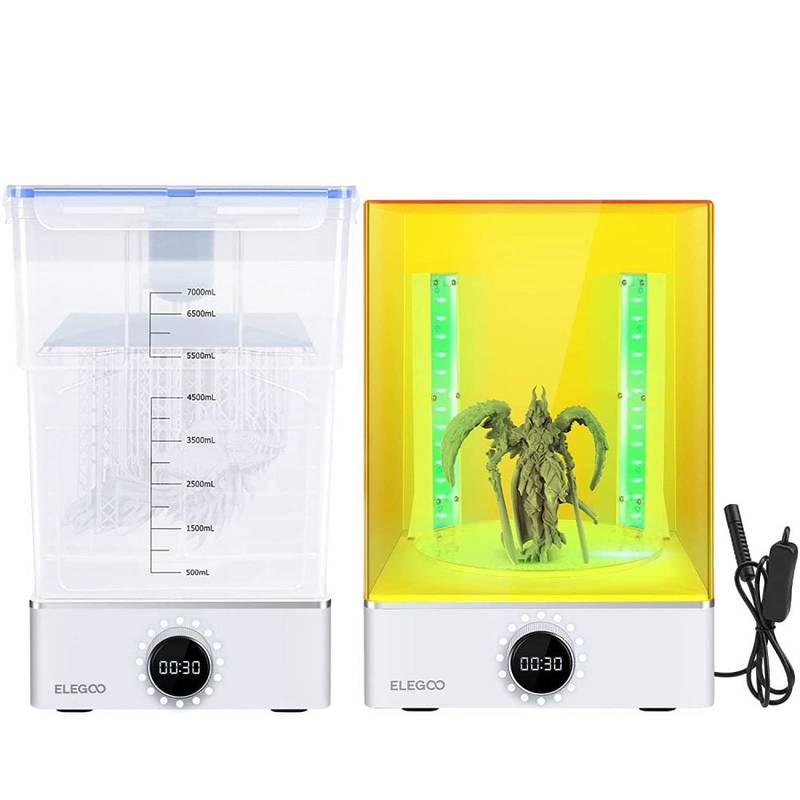

The ELEGOO Mercury XS Bundle is a separate washing machine + curing machine, rather than a single combined unit. This is its biggest advantage: you can wash one batch while curing another, which can significantly speed up resin-print post-processing.
Separate Wash & Cure machines: Dedicated units let washing and curing happen simultaneously.
7,000 mL washing capacity: The sealed wash tank is designed for larger models and batch cleaning.
Powerful turbine washing: A turbine blade creates strong agitation to help remove uncured resin from complex surfaces and details.

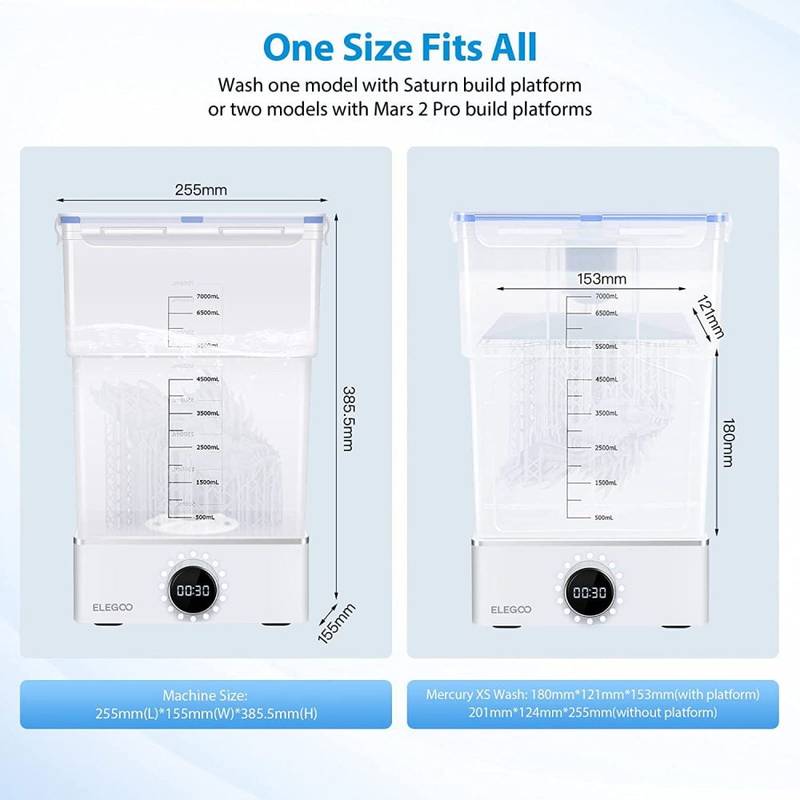

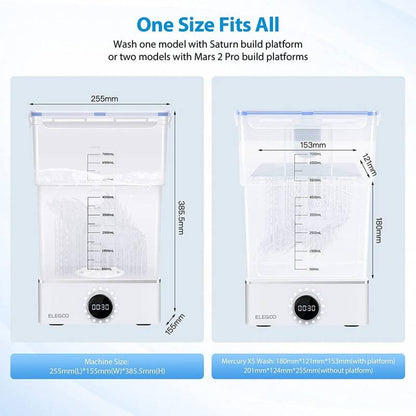

Large wash volume: Maximum washing size is:
With build platform: 180 × 121 × 153 mm
Without build platform: 201 × 124 × 255 mm
360° curing: The curing unit uses two adjustable L-shaped UV light bars, plus four LEDs underneath the rotating platform, for more uniform exposure.
405 nm UV curing: The Fresnel lens system helps distribute the UV light more evenly across the model

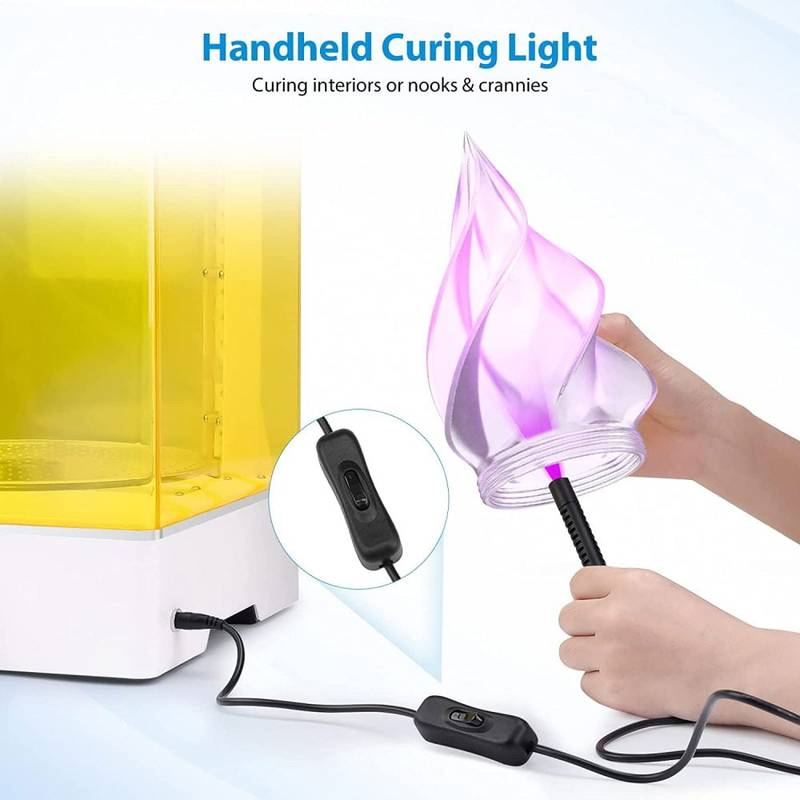

Handheld UV lamp: Useful for curing recessed areas, interiors, corners and assembled parts that may not receive enough light from the main curing chamber.

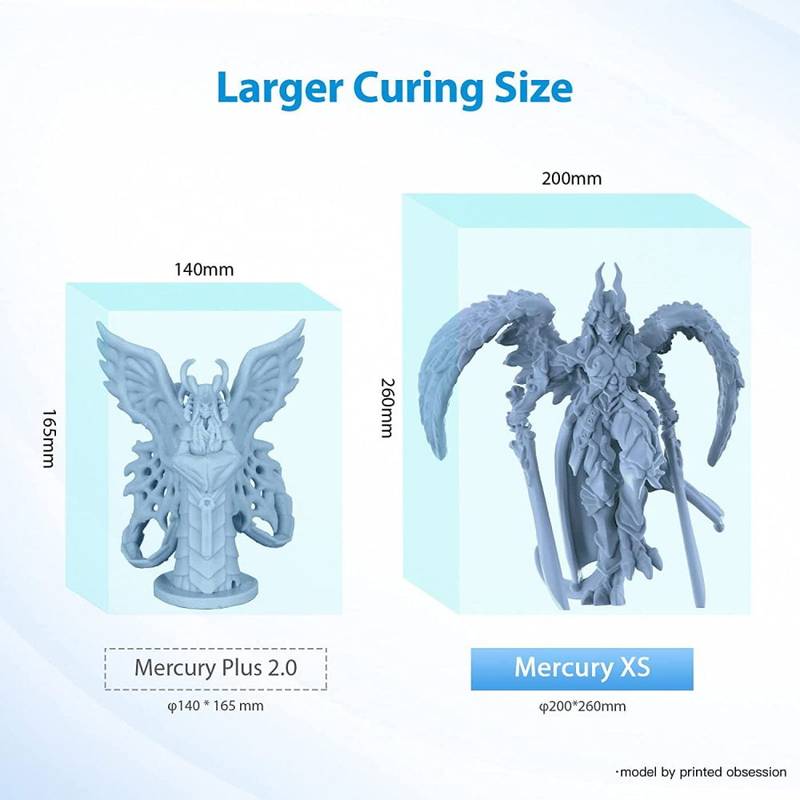

Maximum curing size: Approximately Ø200 × 260 mm.
99.9% UV protection: The curing cover blocks up to 99.9% of UV radiation, and curing automatically stops when the cover is removed.

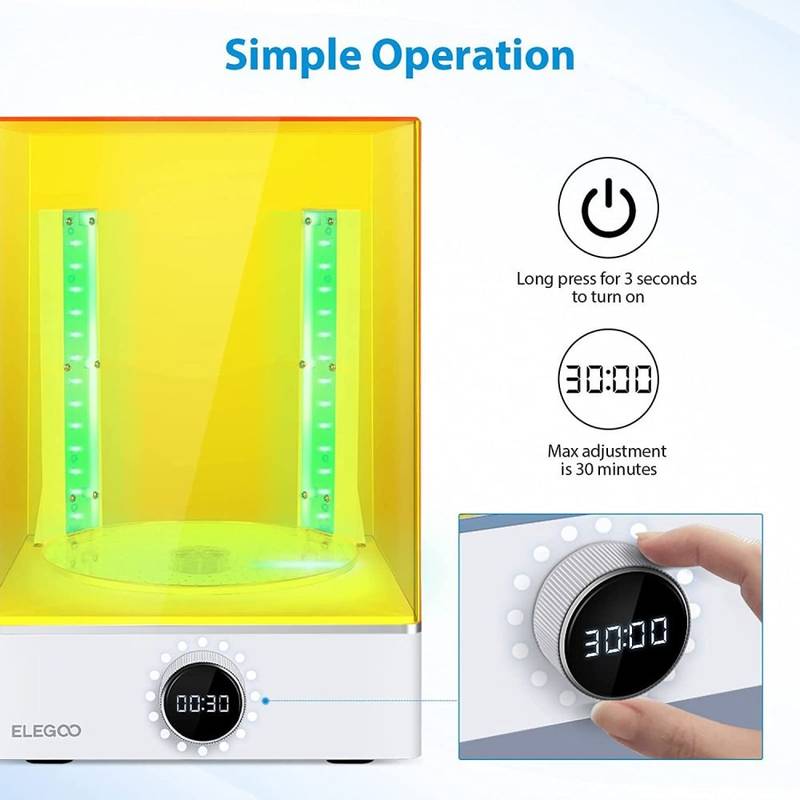

Simple knob controls: Wash and cure times can be set from 0–30 minutes.
Wide compatibility: Designed for ELEGOO resin printers and compatible with other resin printers within its specified wash dimensions. For Saturn and Jupiter series printers, the build plate needs to be removed before washing.
