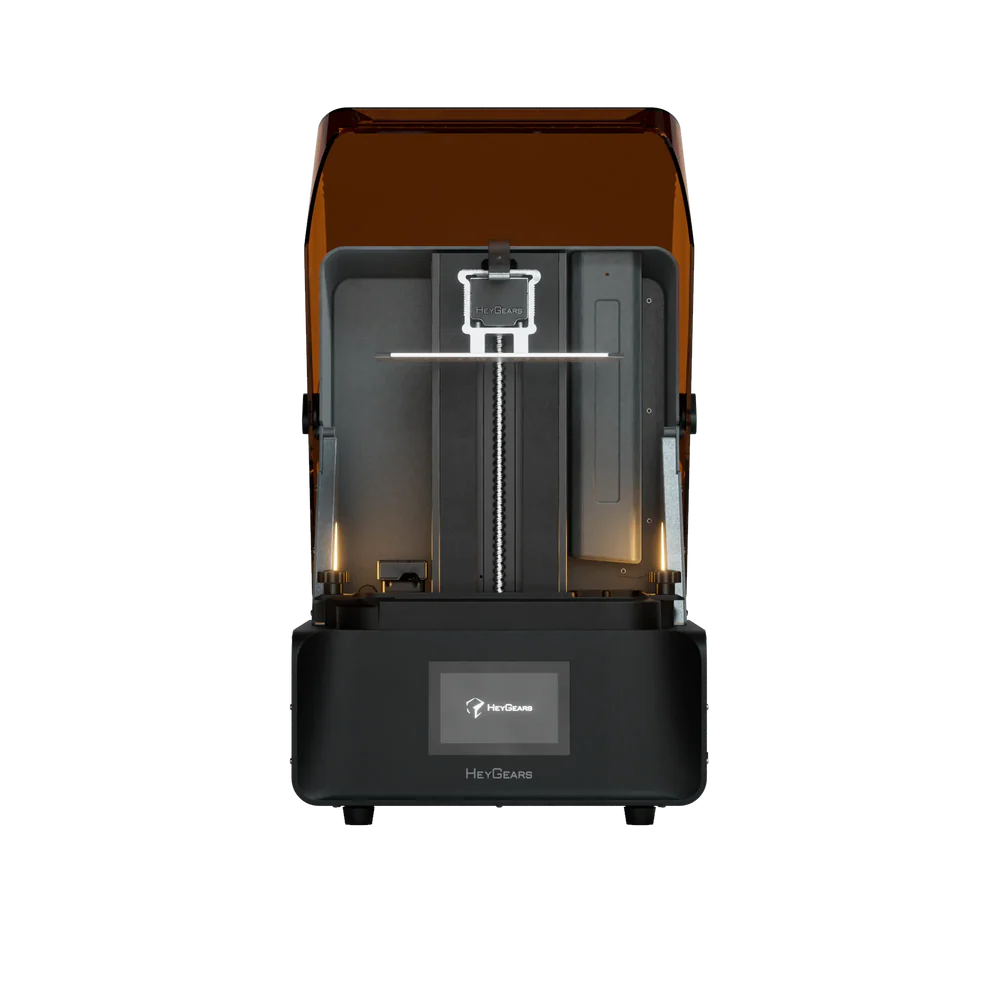

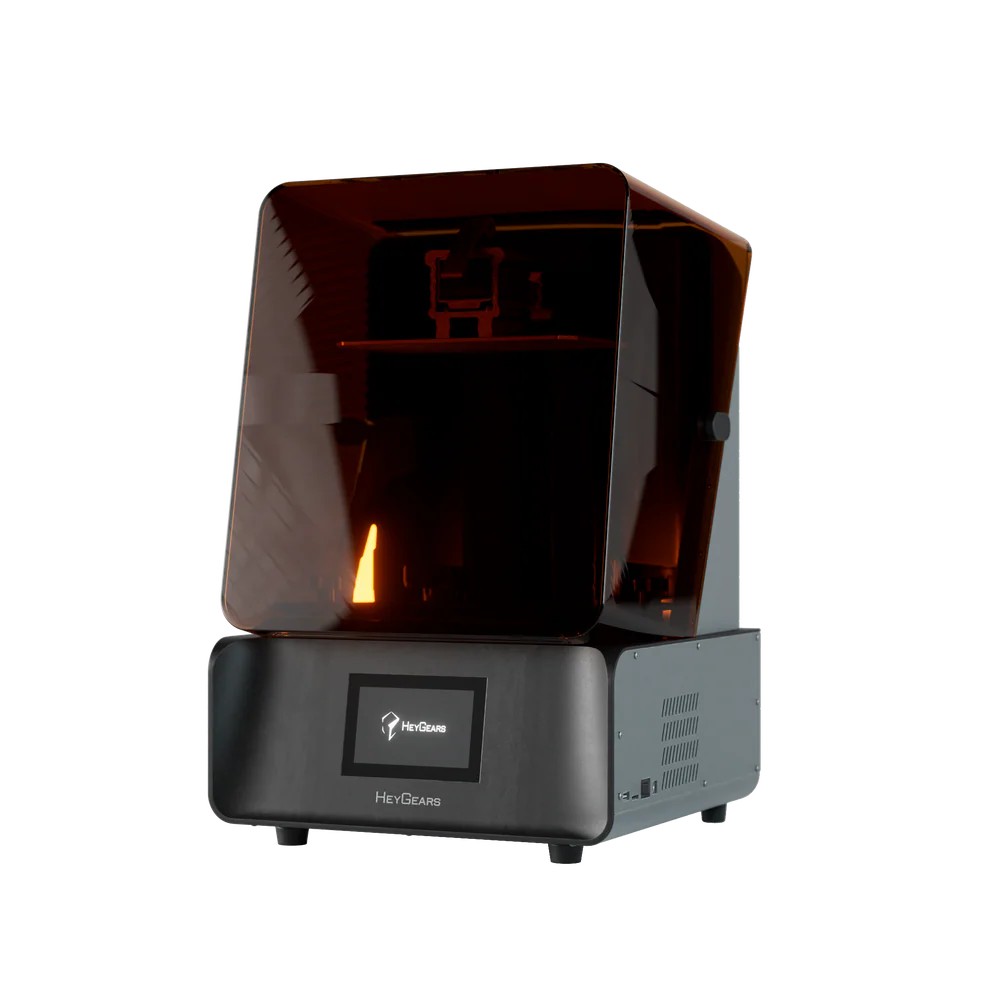

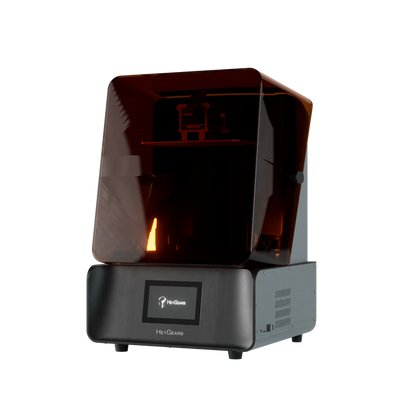

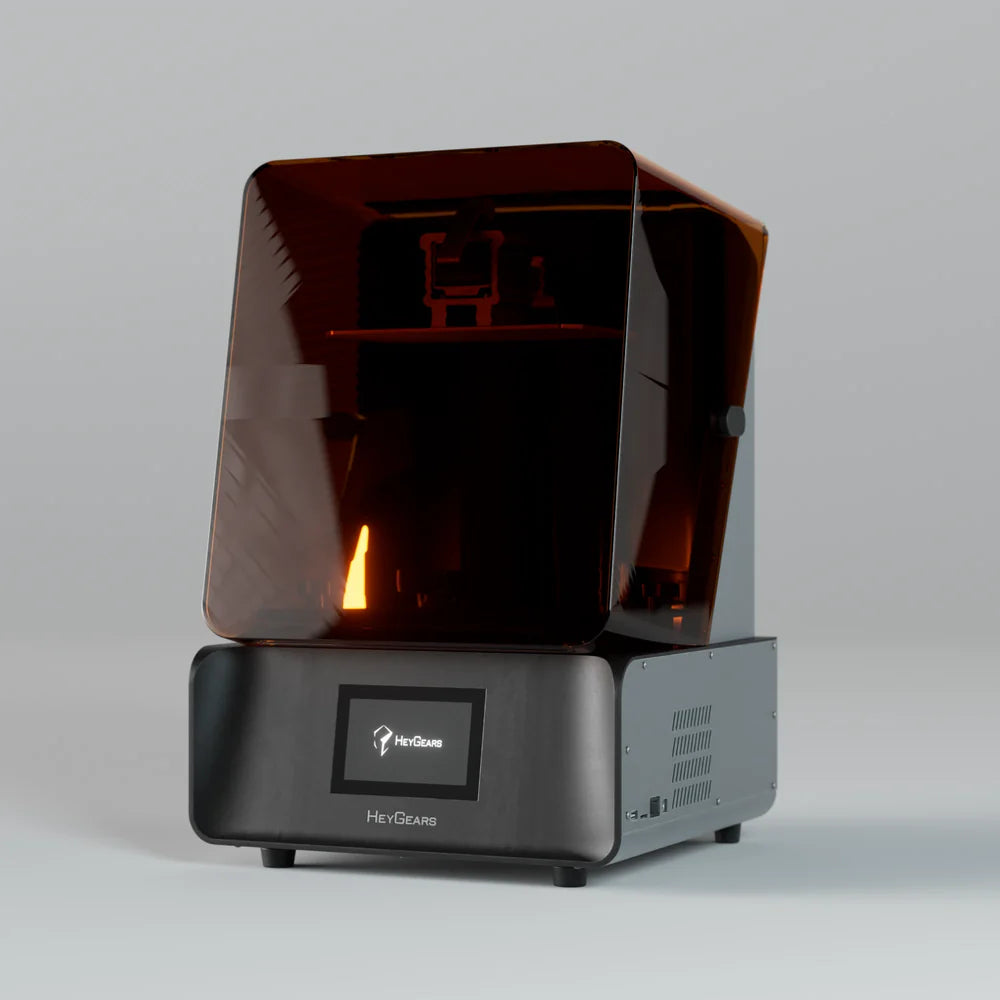

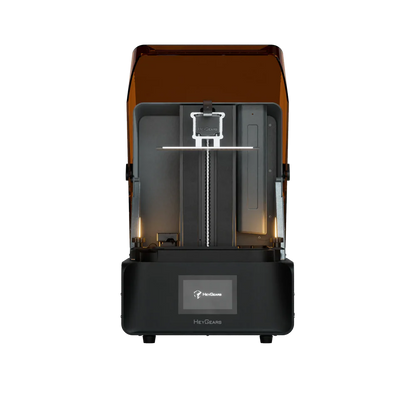

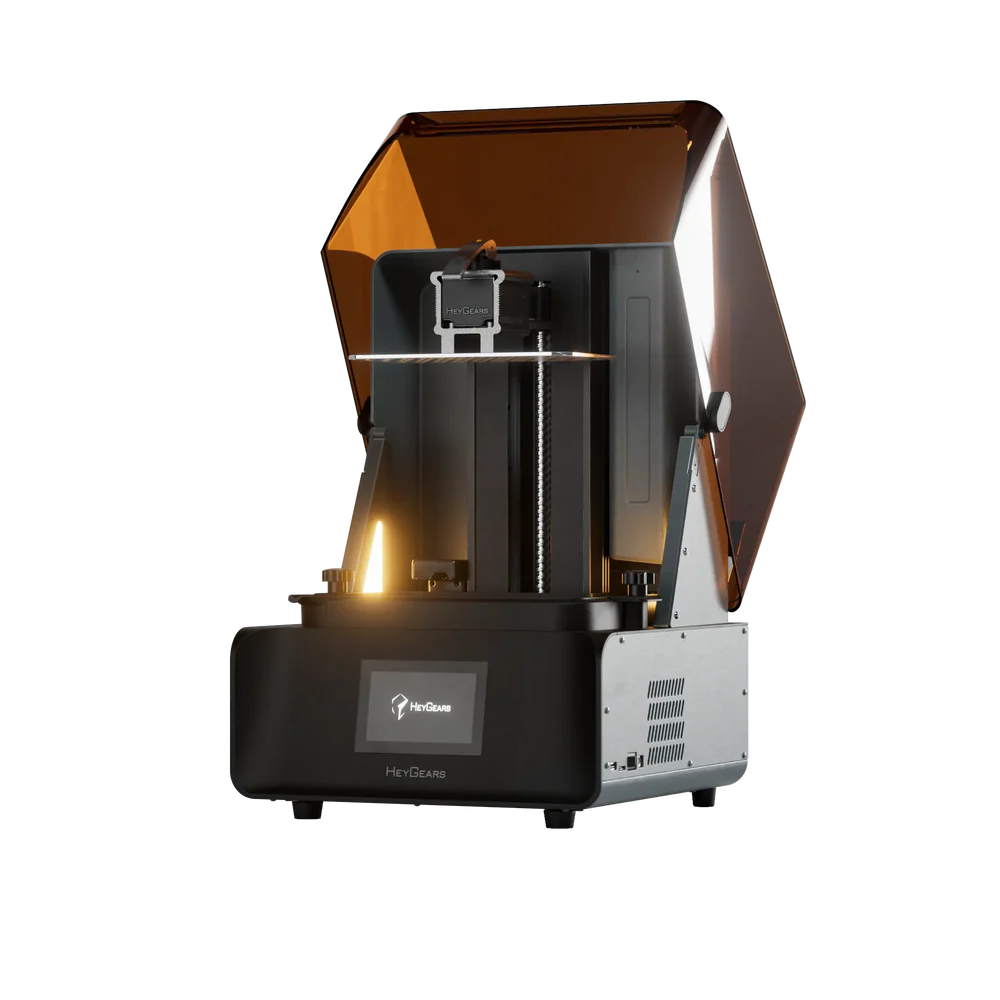

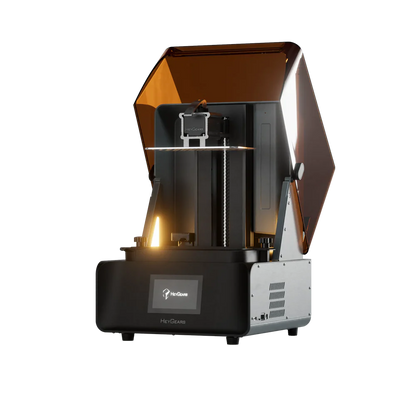

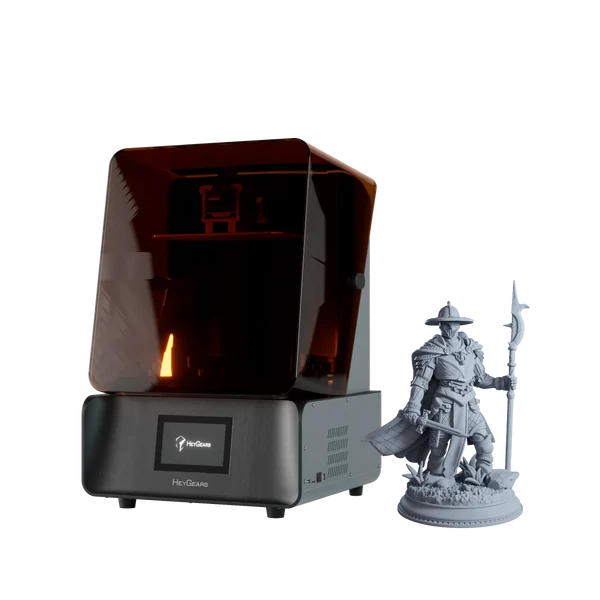

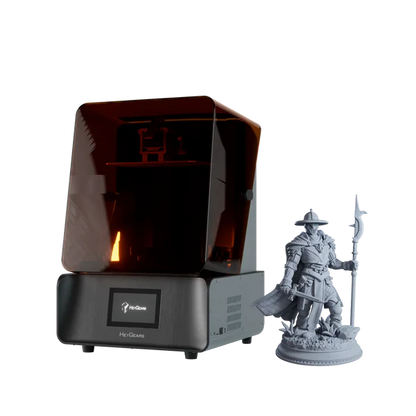

HeyGears UltraCraft Reflex RS 3D Printer

HeyGears UltraCraft Reflex RS 3D Printer

Rs. 106,999.00
Rs. 106,999.00
Sale Sold out
Taxes included.
  • Floating-screen auto-leveling: The screen can compensate for slight deviations automatically, reducing the need for manual leveling. HeyGears says it can compensate for gaps up to 240 μm.
  • C5-grade Z-axis: Designed for extremely stable layer positioning; HeyGears claims positioning errors of no more than 2 μm under its test conditions.
  • Full-field screen calibration: Helps maintain consistent exposure across the entire LCD, improving dimensional consistency and surface quality.
  • Adaptive Z-axis compensation: Automatically compensates for variations during printing.
  • Automatic resin refill: The system can replenish resin before and during a print.
  • Optional heated resin tank: The heated tank can bring resin from about 10°C to 22°C in 20 minutes and maintain the target temperature. This is an optional accessory, not standard on the base RS.
  • Dynamic Motion Algorithm 3.0: HeyGears claims up to a 33% speed increase, depending on the model and resin.
  • Open Material Mode: Experienced users can adjust print settings to use a broader range of resins instead of being restricted entirely to the HeyGears ecosystem.
  • Integrated print strategies: With supported HeyGears materials, the workflow is highly automated, reducing the amount of exposure/printing parameter tuning required.
    Feature Reflex RS
    Technology LCD / MSLA
    Build volume 222 × 122 × 228 mm
    LCD 10.3" 8K monochrome
    XY pixel size 29.7 μm
    Claimed accuracy ±15 μm
    Layer thickness 30–100 μm
    Light wavelength 405 nm
    Z-axis C5-grade precision module
    Connectivity Wi-Fi + USB
    Weight 20 kg
    Dimensions 380 × 360 × 584 mm
