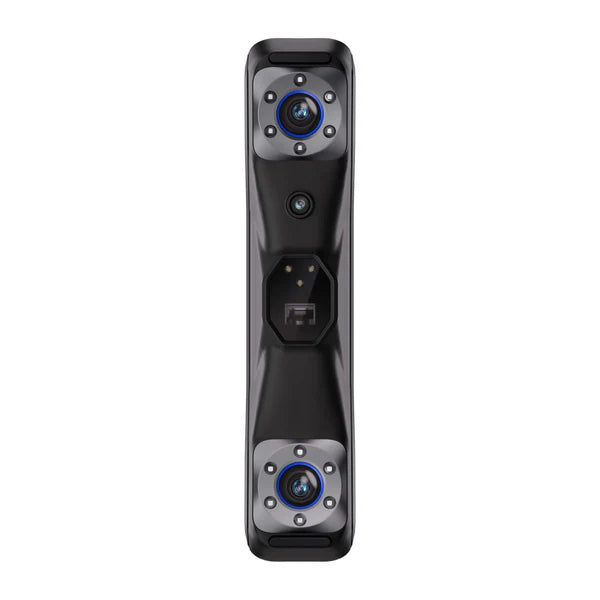

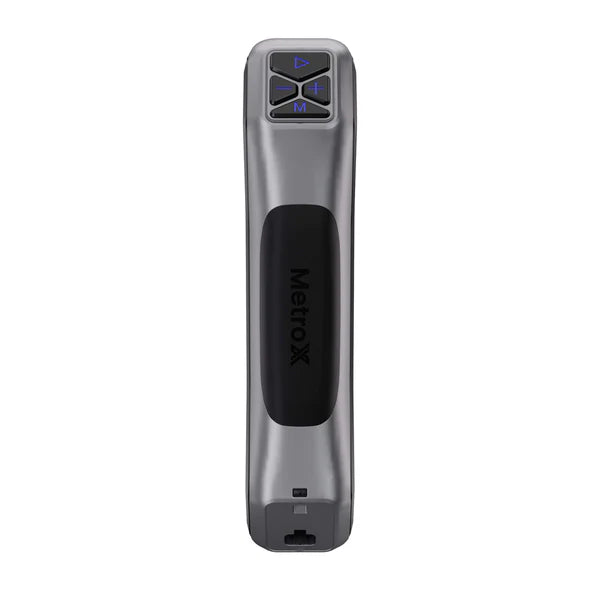

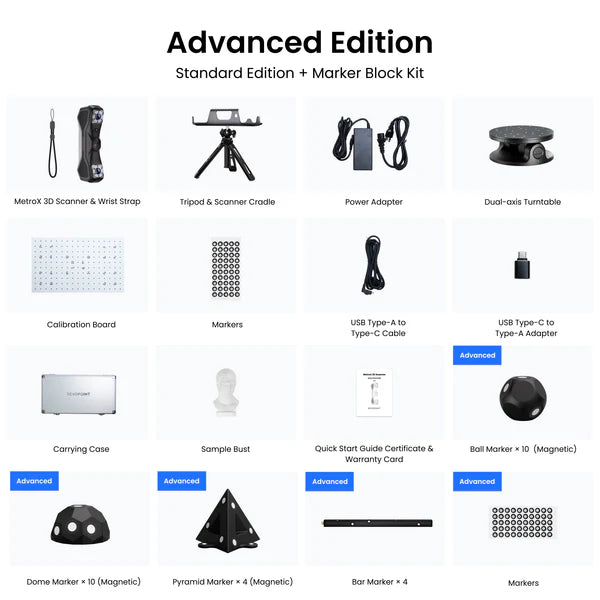

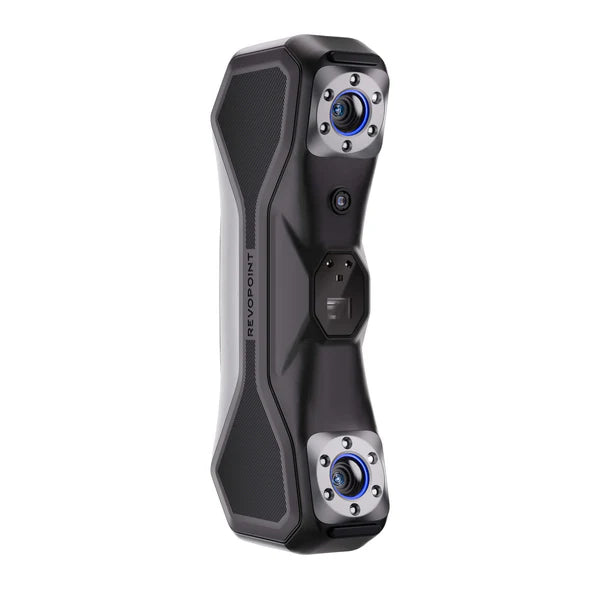

Revopoint MetroX Advanced Edition-High Precision 3D Scanner with Blue Laser and Structured Light Technology

Key features

• High precision: up to 0.01 mm precision.
• Accuracy: up to 0.02 mm single-frame accuracy under specified conditions.
• Volumetric accuracy: up to 0.025 mm + 0.05 mm × L (m) for the MetroX.
• 4 scanning modes:
  • 14 Blue Cross-Laser Lines — fast scanning of flat, dark and shiny surfaces.
  • 7 Blue Parallel-Laser Lines — captures fine details, edges and complex geometry.
  • 62-Line Full-Field Blue Structured Light — rapid scanning of feature-rich objects, including marker-free scanning.
  • Auto Turntable Mode — automated one-click scanning using the dual-axis turntable.
• High scanning speed: up to 800,000 points/swith multi-line laser and 7 million points/s with full-field structured light.
• Small-to-medium object range: approximately 10 × 10 × 10 mm to 1 × 1 × 1 m.
• Scan shiny and black surfaces: Cross-Laser mode can capture many dark/shiny surfaces without scanning spray.
• Marker, Feature and Global Marker tracking for different types of objects.
• Single-shot scanning is available in Full-Field and Auto Turntable modes for detailed, stable captures.
• Flexible capture area: approximately 160 × 70 mm at 200 mm working distance and 320 × 215 mm at 400 mm.
• PC-to-mobile scan streaming, allowing the scan display to be viewed across screens.
• GPU-powered scanning up to 60 FPS with compatible hardware.
• 2 MP RGB camera for color capture; color scanning is available in Auto Turntable mode.
• Portable design: approximately 508 g.
• Revo Metro software for point-cloud creation, fusion, meshing, editing, merging, importing and exporting.
