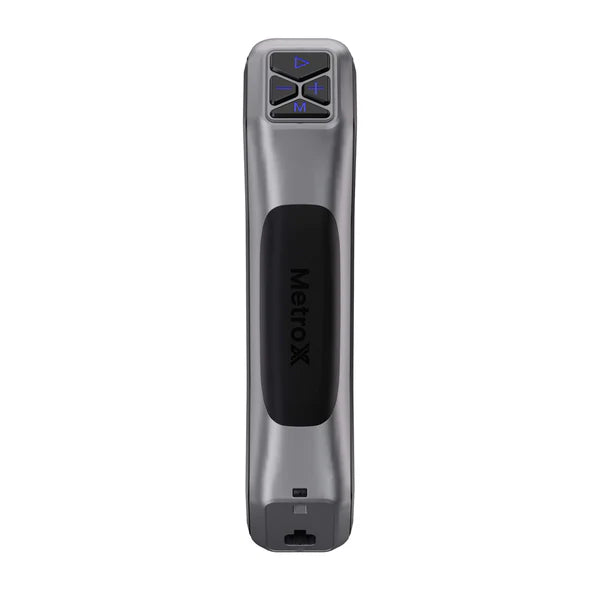

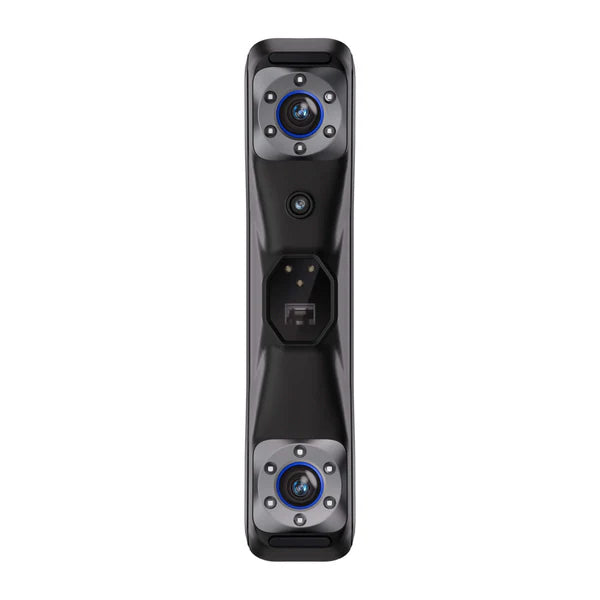

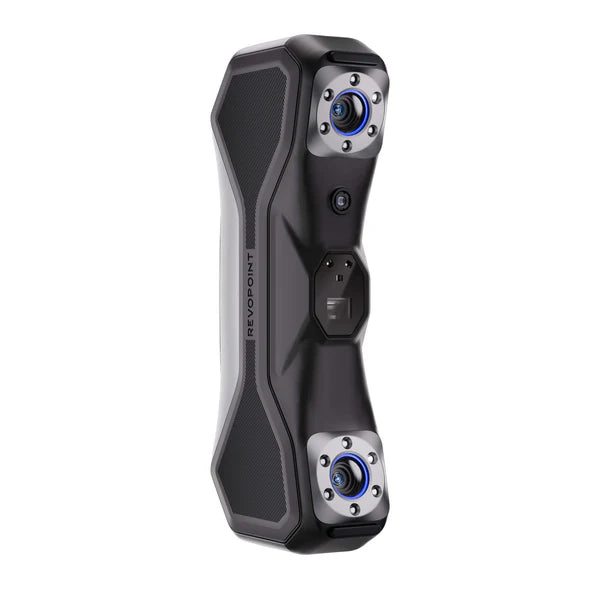

Revopoint MetroX Standard Edition-High Precision Blue Laser and Structured Light 3D Scanner

Key features

• High precision: up to 0.01 mm precision.
• Accuracy: up to 0.02 mm single-frame accuracy under specified conditions.
• Volumetric accuracy: 0.025 mm + 0.05 mm × L (m), where L is the object's length.
• 4 scanning modes:
  • 14 Blue Cross-Laser Lines — fast scanning of flat, dark or shiny surfaces.
  • 7 Blue Parallel-Laser Lines — captures fine details, edges and complex geometry.
  • 62-Line Full-Field Blue Structured Light — very fast scanning of feature-rich objects, including marker-free scanning.
  • Auto Turntable — automated one-click scanning with the dual-axis turntable.
• High scanning speed: up to 800,000 points/second in multi-line laser mode and 7 million points/second in full-field structured-light mode.
• Scanning size: approximately 10 × 10 × 10 mm to 1 × 1 × 1 m.
• Working distance: 200–400 mm.
• Capture area: approximately 160 × 70 mm at 200 mm and 320 × 215 mm at 400 mm.
• Blue laser technology: particularly useful for capturing difficult surfaces such as dark and shiny parts. Cross-line laser mode can scan these surfaces without scanning spray;spray may still be recommended for dark/shiny surfaces in full-field and Auto Turntable modes.
• Tracking: Feature, Marker and Global Marker tracking.
• Color scanning: available in Auto Turntable mode.
• 2 MP RGB camera for color capture.
• PC-to-mobile scan streaming for viewing/controlling the scan across screens.
• Up to 60 FPS GPU-powered scanning with a compatible computer.
• Portable: approximately 508 g.
• Revo Metro software: supports point-cloud creation, fusion, meshing, editing, merging, importing and exporting.
