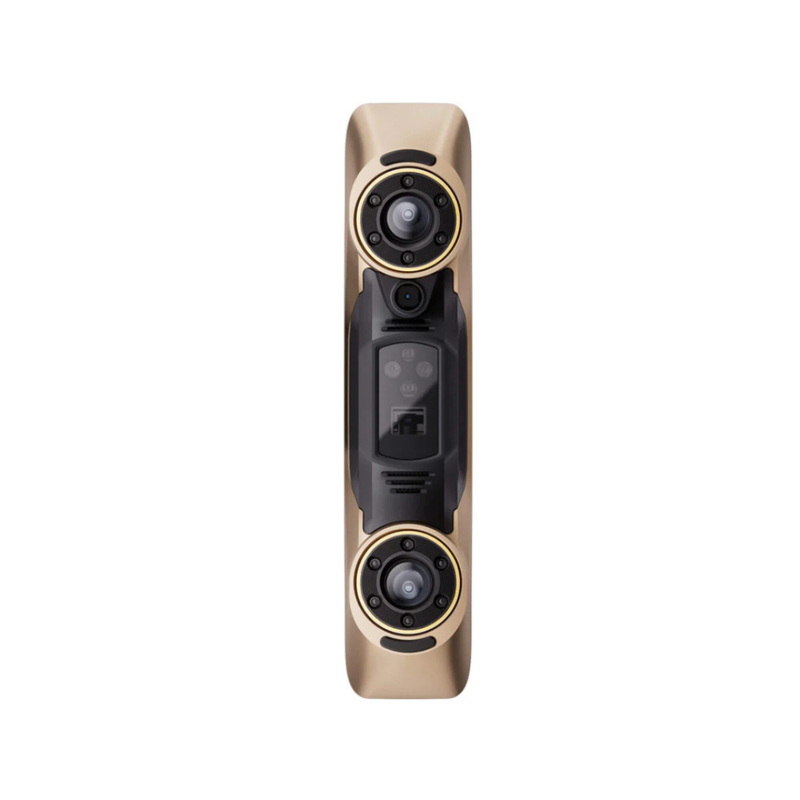

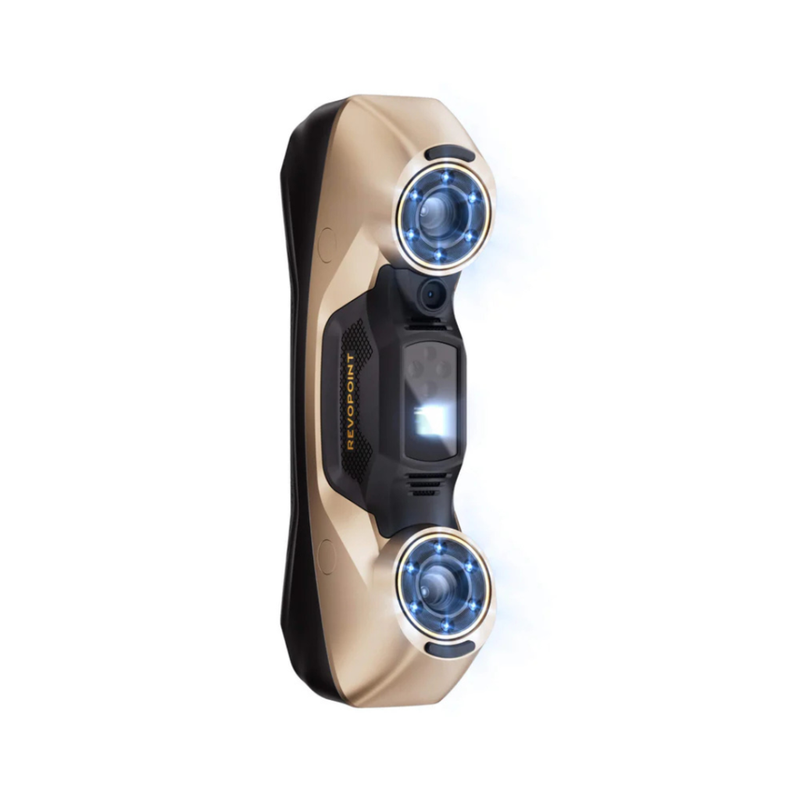

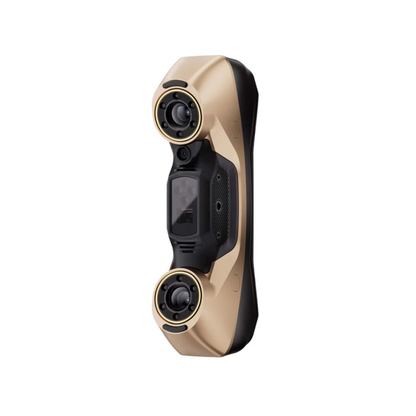

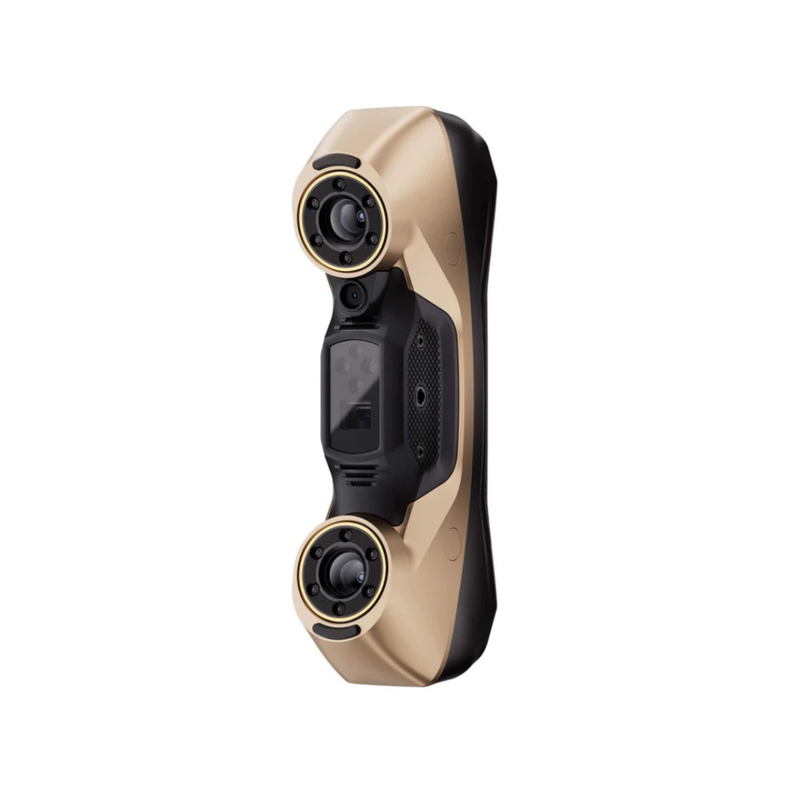

Revopoint MetroY Ultra (CMM Edition):High Performance Wireless 3D Scanner For Small To Medium Workpieces

Revopoint MetroY Ultra (CMM Edition):High Performance Wireless 3D Scanner For Small To Medium Workpieces

Rs. 287,999.00
Rs. 287,999.00
Sale Sold out
Taxes included.

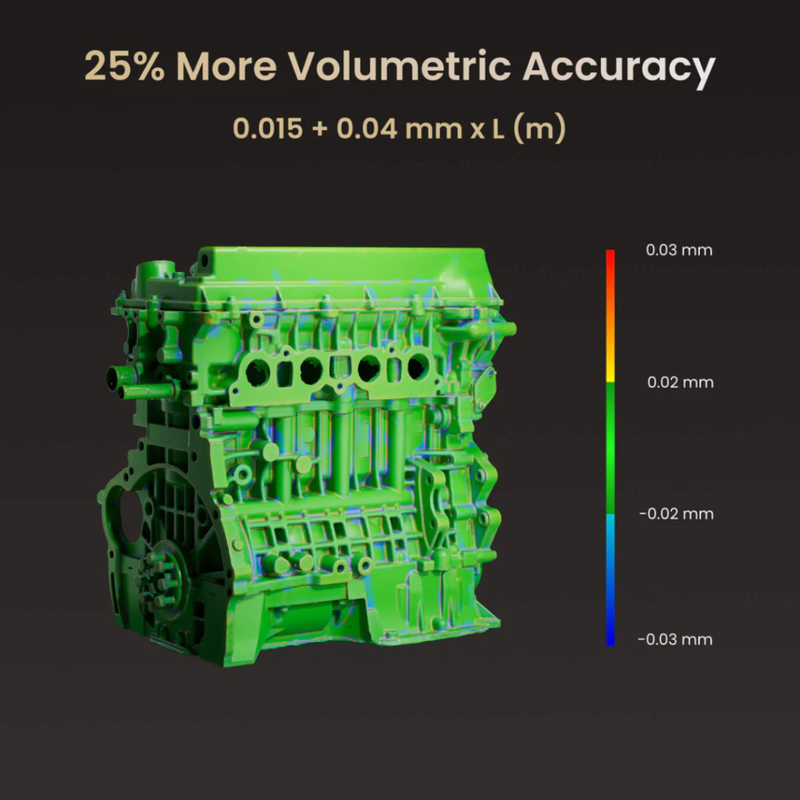

  • Metrology-grade volumetric accuracy: 0.015 mm + 0.04 mm × L (m).
  • CMM-certified accuracy verification: Includes a carbon-fiber ball plate for on-site, real-time verification of scanner performance. Revo Metro compares the scan against the ball plate's unique metrology file to calculate volumetric deviation.
  • Revo Measure software included: Comes with a 1-year license for certified 3D measurement and inspection. It is supported on Windows 10/11.
  • GD&T inspection: Revo Measure supports checking 11 types of geometric tolerances.
  • CAD deviation analysis: Compare scanned data against CAD models to identify dimensional deviations.
  • Dimensional measurement: Measure dimensions, angles, shapes and volumedirectly from scan data.
  • Professional reports: Measurement and deviation results can be exported as PDF reports.
  • 5 blue-light scanning modes:
    • 34-cross-line high-speed laser
    • 15-parallel-line detail scanning
    • Single-line deep-hole scanning
    • Full-field structured light
    • Automatic turntable scanning
  • Fast scanning: Up to 3 million points/s in laser mode and up to 7 million points/s with structured light.

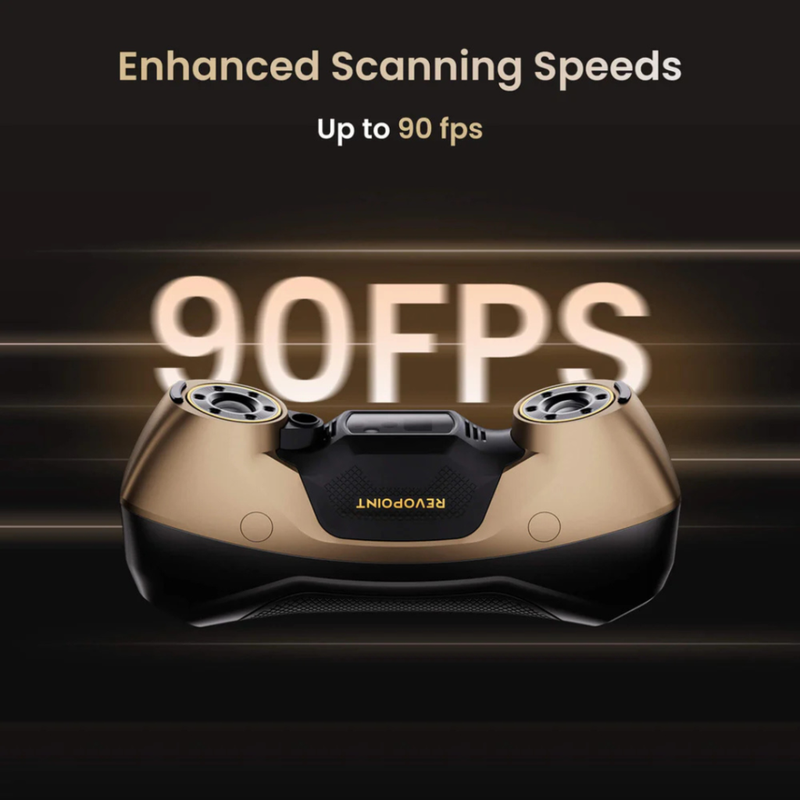

  • Up to 90 FPS scanning for faster capture of workpieces.
  • Small-to-medium workpieces: Recommended scanning range is approximately 10 × 10 × 10 mm to 2 × 2 × 2 m.
  • Dark and shiny surface scanning: Blue-laser modes can scan difficult black, glossy and reflective surfaces without scanning spray.
  • Deep-hole capability: The single-line laser mode is designed for deep holes, grooves, grilles and recessed areas.
  • Wireless Wi-Fi 6: Real-time wireless scanning and screen mirroring.
  • Outdoor laser scanning: Supports laser scanning in lighting conditions up to 100,000 lux.
  • Color scanning: Captures color information for realistic 3D models.

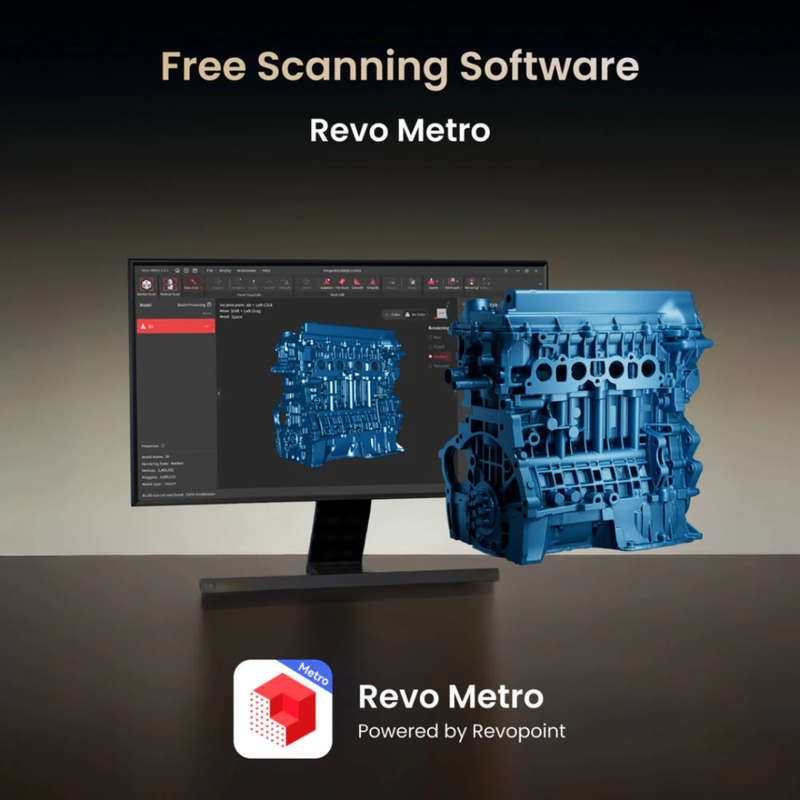

  • Revo Metro: Professional scanning and post-processing software for capturing, processing and aligning scan data.

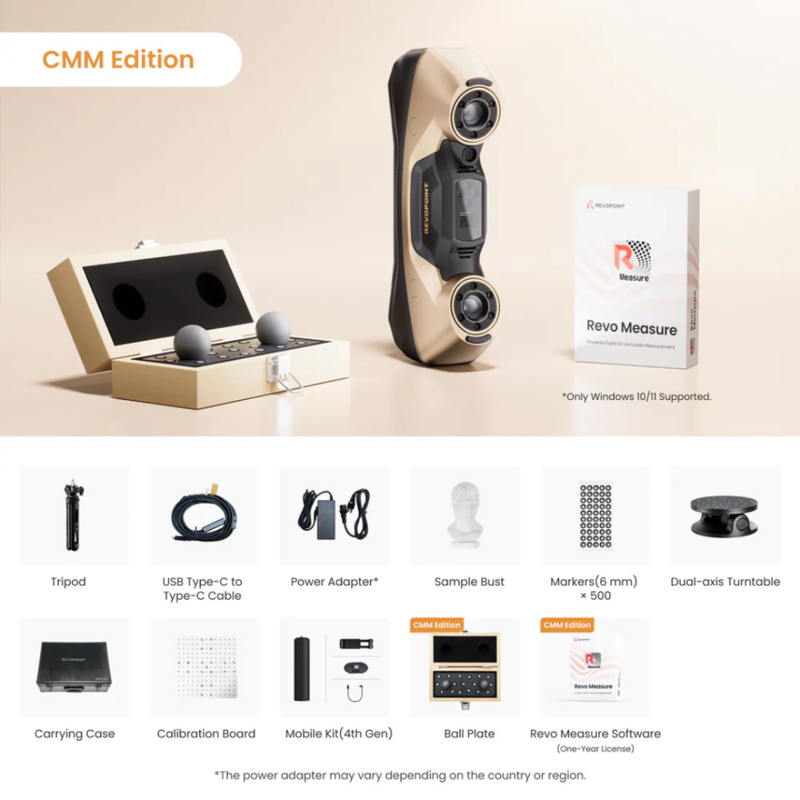

  • CMM Edition package: Adds the ball plate + 1-year Revo Measure license + sample test service to the Standard Edition package.
