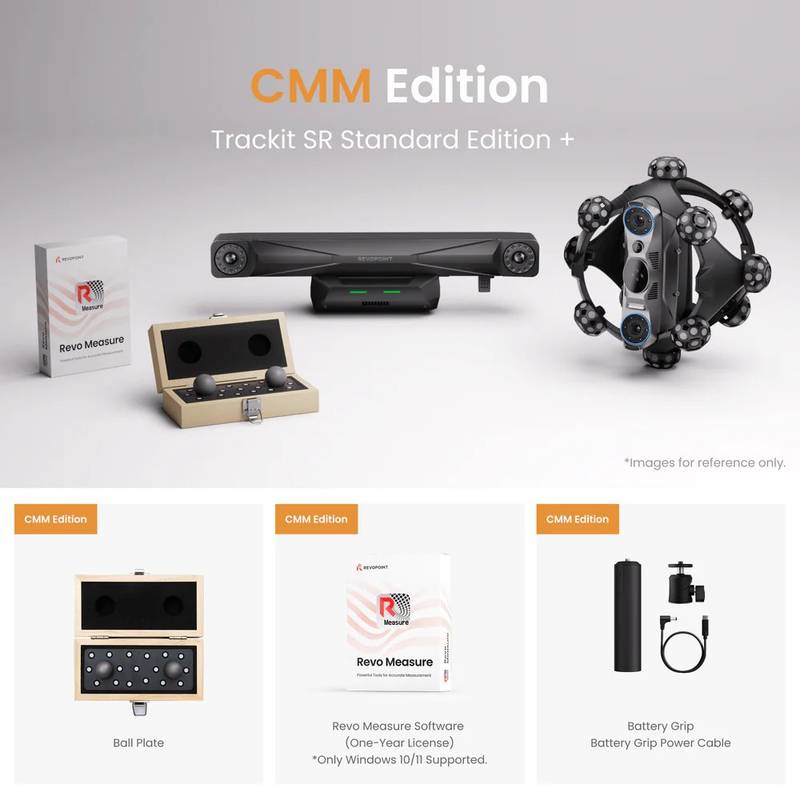

CMM-Ready Measurement Solution – Includes a CMM-certified ball plate and Revo Measure software with a 1-year license for accurate, verifiable 3D measurement and inspection workflows.

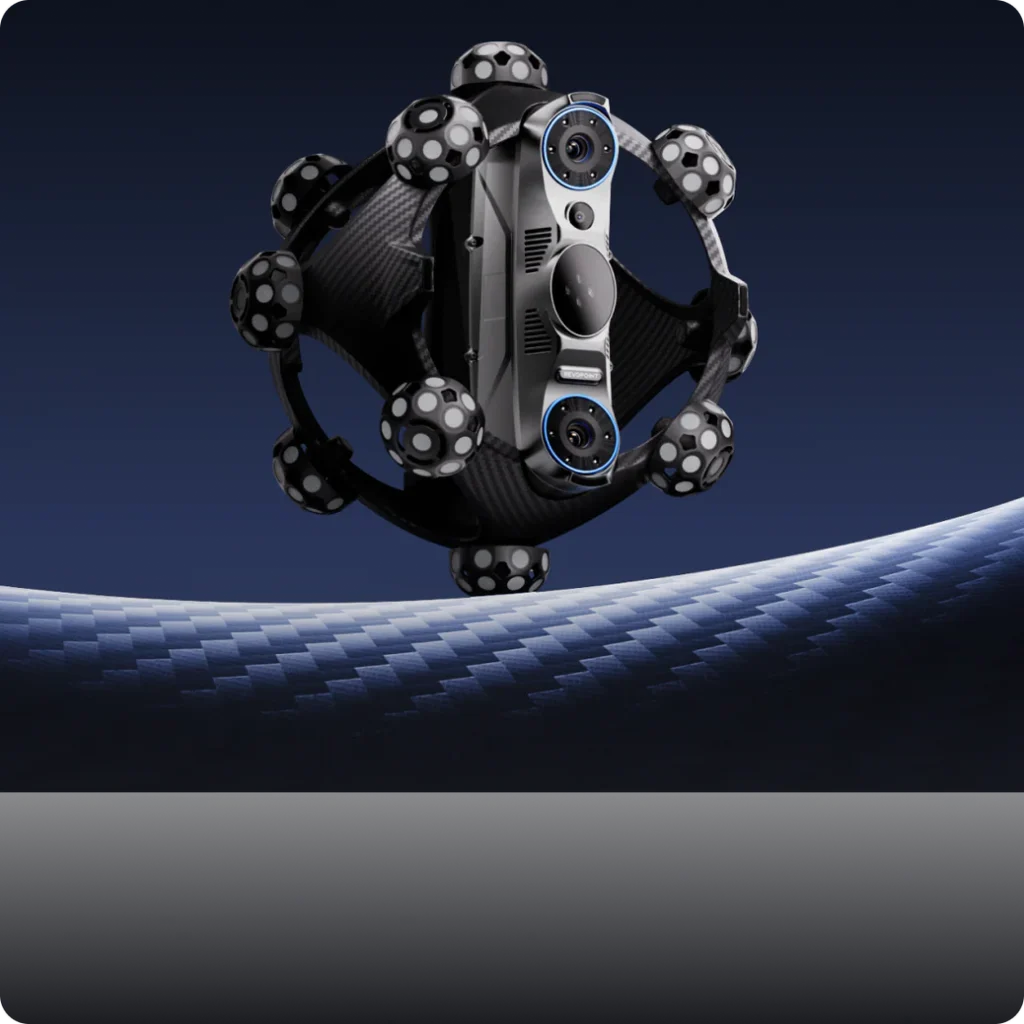

Marker-Free Optical Tracking – Advanced optical tracking continuously determines the scanner's position, allowing objects to be scanned without attaching tracking markers to their surfaces.

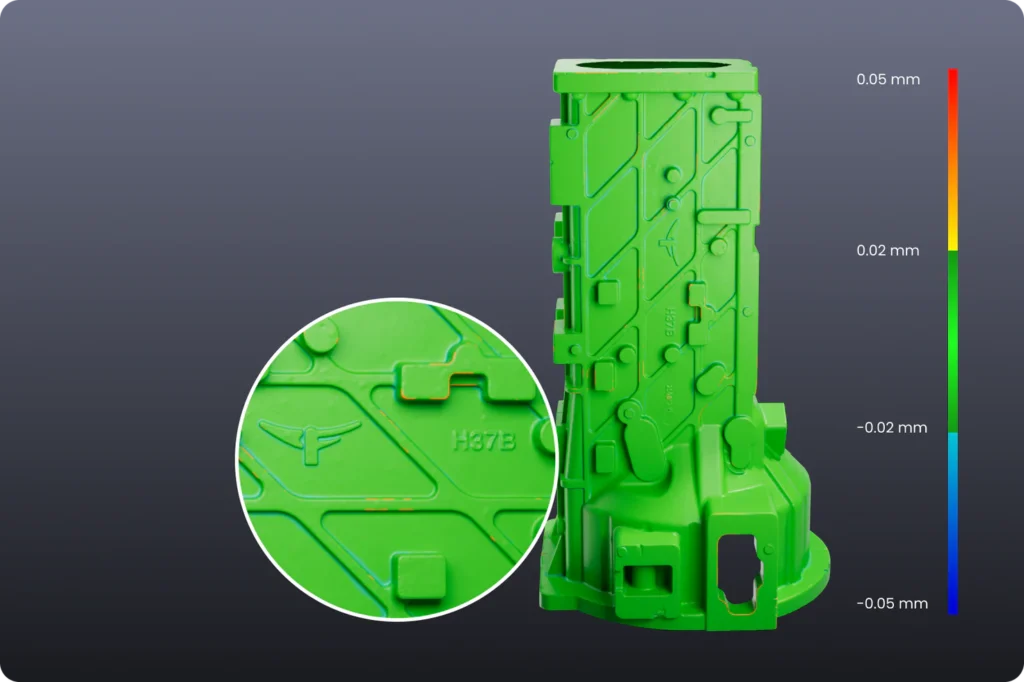

0.02 mm Single-Frame Accuracy – High-resolution blue-laser scanning provides up to 0.02 mm single-frame accuracy under controlled conditions.
High Volumetric Accuracy – Tracking-system volumetric accuracy of up to 0.025 mm + 0.04 mm × L (m).
Up to 2,000,000 Points/Second – High-speed scanning enables efficient capture of detailed and large workpieces.
Triple Blue-Laser Scanning – Choose between 30 cross-line lasers, 17 parallel laser lines, and a single laser line for different scanning requirements.

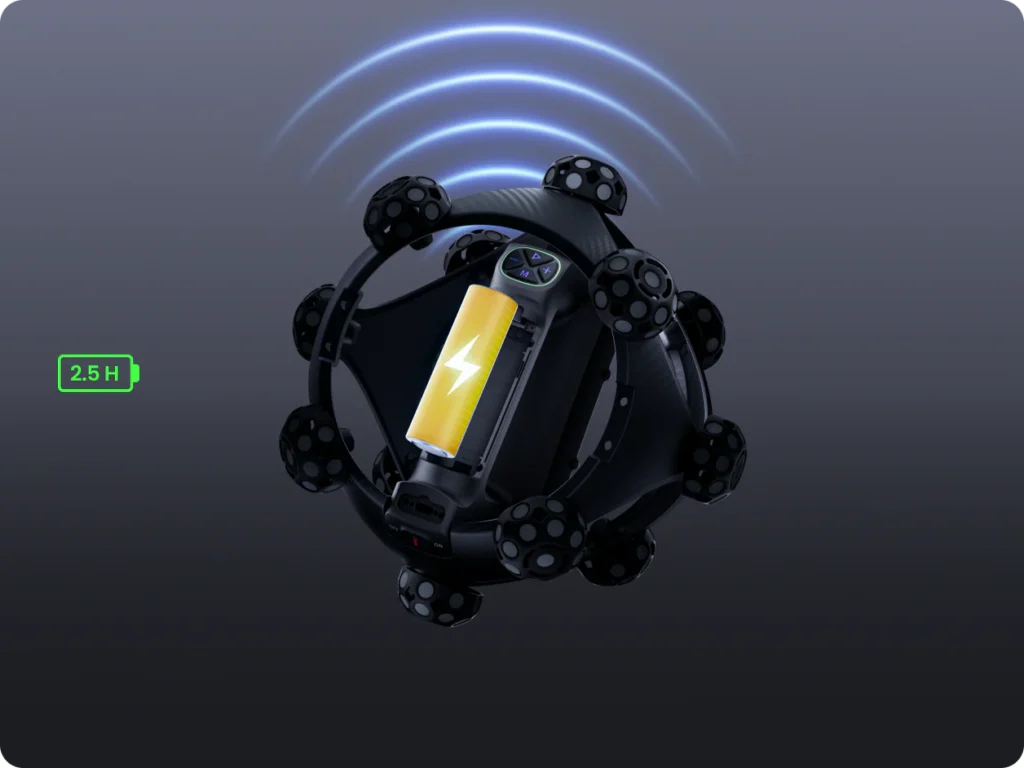

Wireless Wi-Fi 6 Connectivity – Scan without the restrictions of traditional cables and move freely around the workpiece.

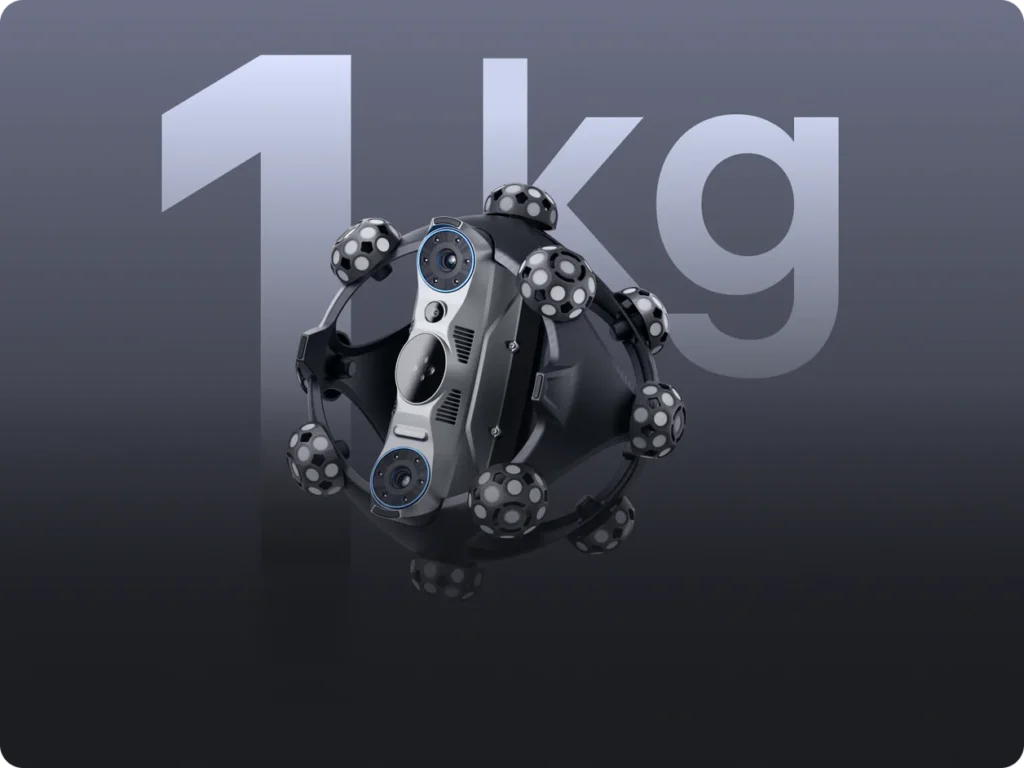

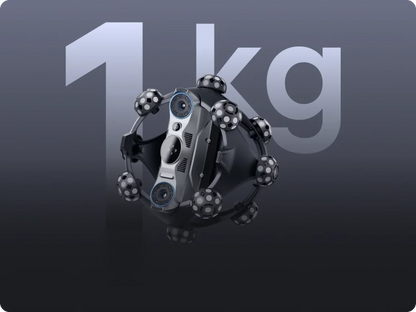

Portable & Lightweight – The handheld scanner weighs just 1 kg, while the tracker weighs 1.5 kg, with the complete system designed for convenient transportation.
Scan Small to Large Objects – Recommended scanning range from approximately 10 mm to 4 m.
Deep-Hole Scanning – Single blue-laser mode captures narrow areas, deep holes, grooves, and other difficult-to-reach features.

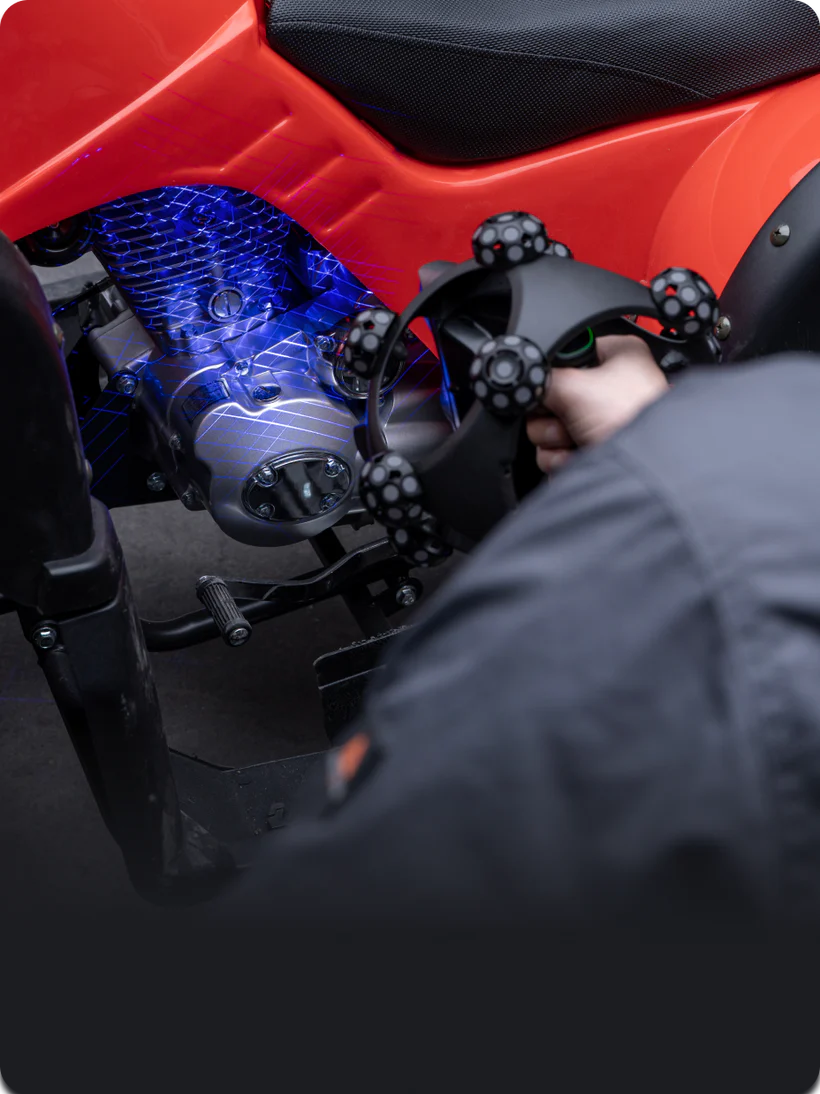

Dark & Reflective Surface Scanning – Blue-laser technology enables direct scanning of challenging surfaces without requiring markers or scanning sprays.

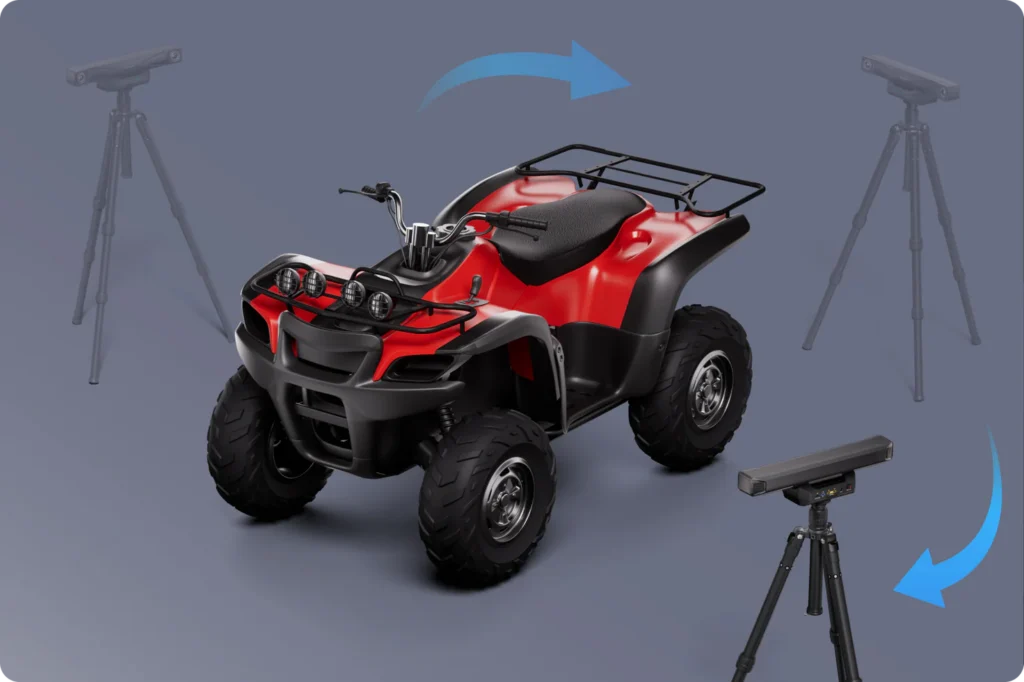

Wireless Multi-Station Scanning – Reposition the tracker around large workpieces while maintaining accurate frame alignment through shared reference points.
Real-Time Temperature Monitoring – Built-in temperature sensors and active thermal stabilization help maintain scanning consistency.
Detailed Texture Mapping – A high-resolution RGB camera captures surface color and texture for detailed 3D models.
Outdoor Scanning Capability – Designed to provide greater flexibility for on-site and field scanning applications.
Professional 3D Data Processing – Revo Track supports scanning, editing, alignment, processing, and export of professional 3D data.
Three Blue-Laser Scanning Modes
Fine Mode – 30 Blue Cross-Laser Lines Capture detailed surfaces and complex geometry with high precision and scanning speeds of up to 2 million points per second.
Far Mode – 17 Blue Parallel-Laser Lines Designed for efficiently scanning larger, low-feature workpieces with a working distance of up to 500 mm.
Deep Hole Mode – Single Blue Laser Line Capture deep holes, grooves, cavities, and narrow features that can be difficult to reach with conventional scanning methods.
