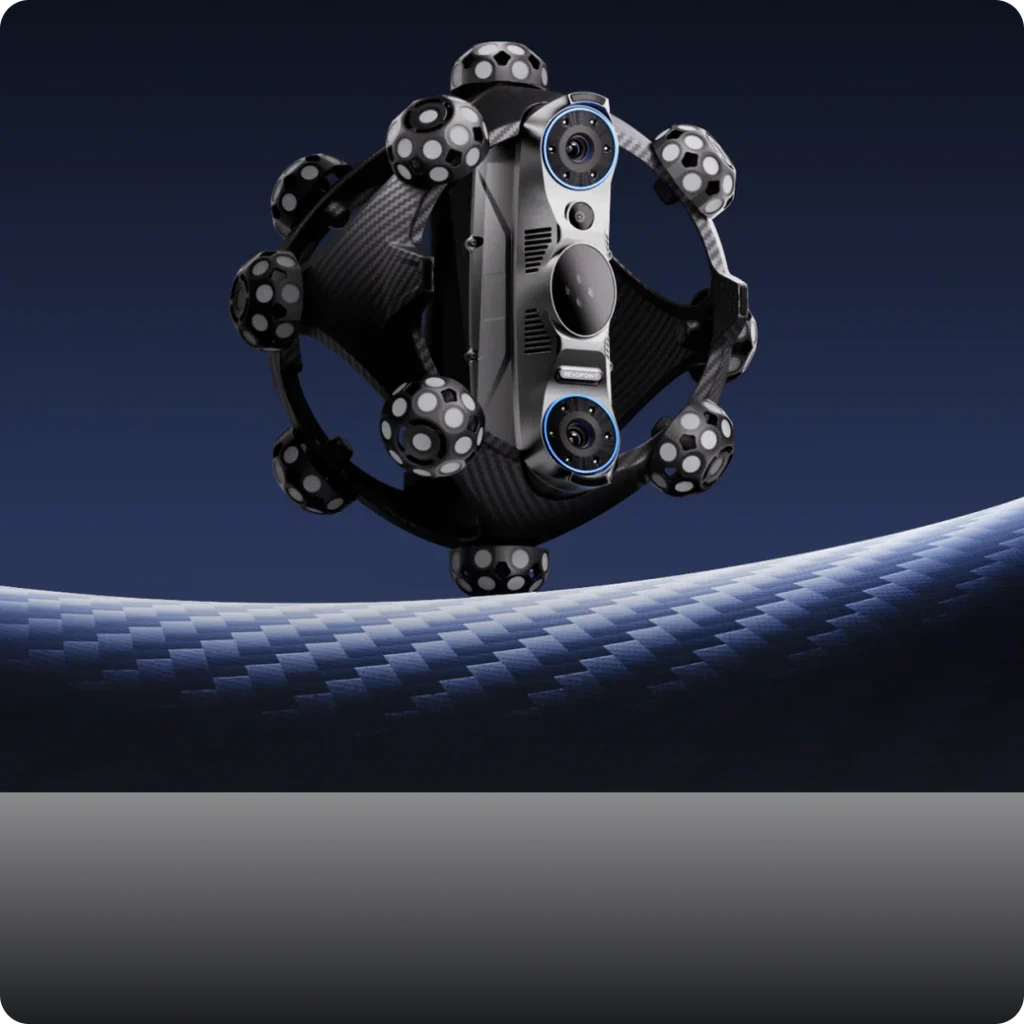

Revopoint Trackit SR (Standard Edition:Wireless Optical Tracking 3D Scanner|Marker Free&Portable

Key Features

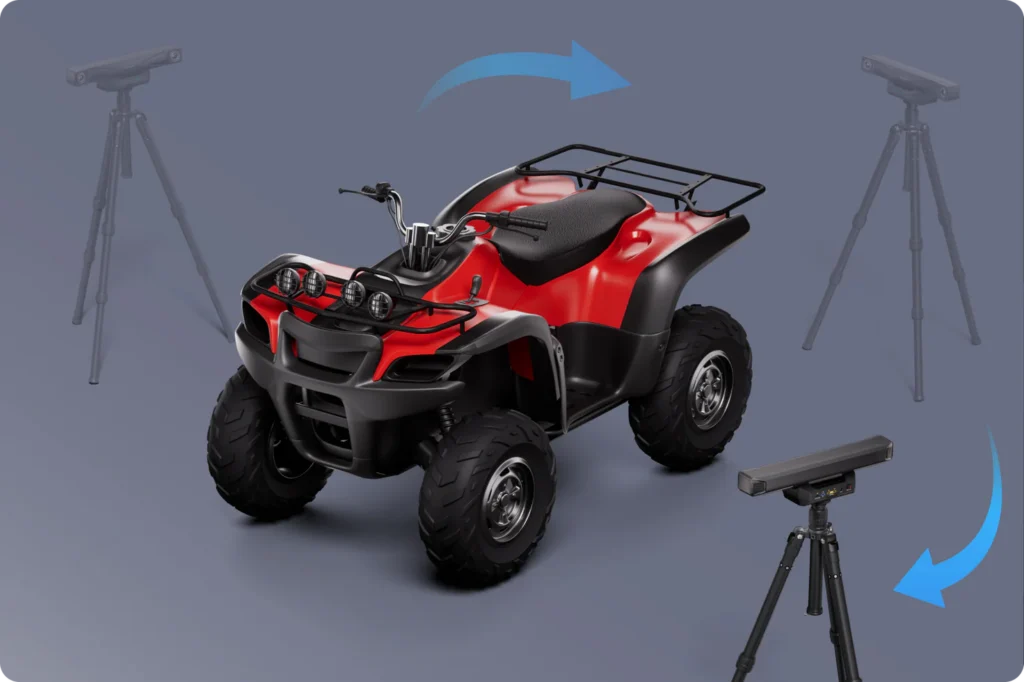

• Marker-Free 3D Scanning – Advanced optical tracking captures the scanner's position in real time, reducing setup time and eliminating the need for markers in Track Scan mode.

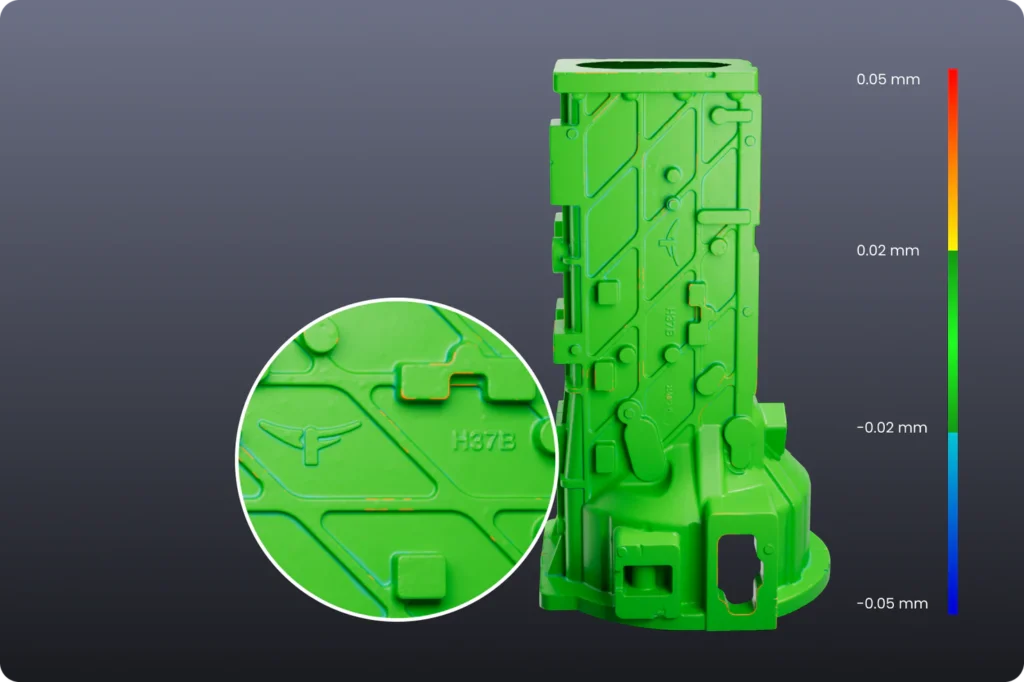

• High Accuracy – Volumetric accuracy of up to 0.025 mm + 0.04 mm × L (m).
• Fast Scanning – Capture up to 2,000,000 points per second for efficient scanning of detailed and large workpieces.
• Three Blue-Laser Scanning Modes – 30 blue cross-line lasers for detailed scanning, 17 parallel laser lines for larger surfaces, and a single-line laser for deep holes and hard-to-reach features.
• Wireless Freedom – Wi-Fi 6 enables wireless connection between the scanner, tracker, and PC, providing a cable-free scanning workflow.
• Wide Scanning Range – Recommended part sizes from approximately 10 mm to 4 m.

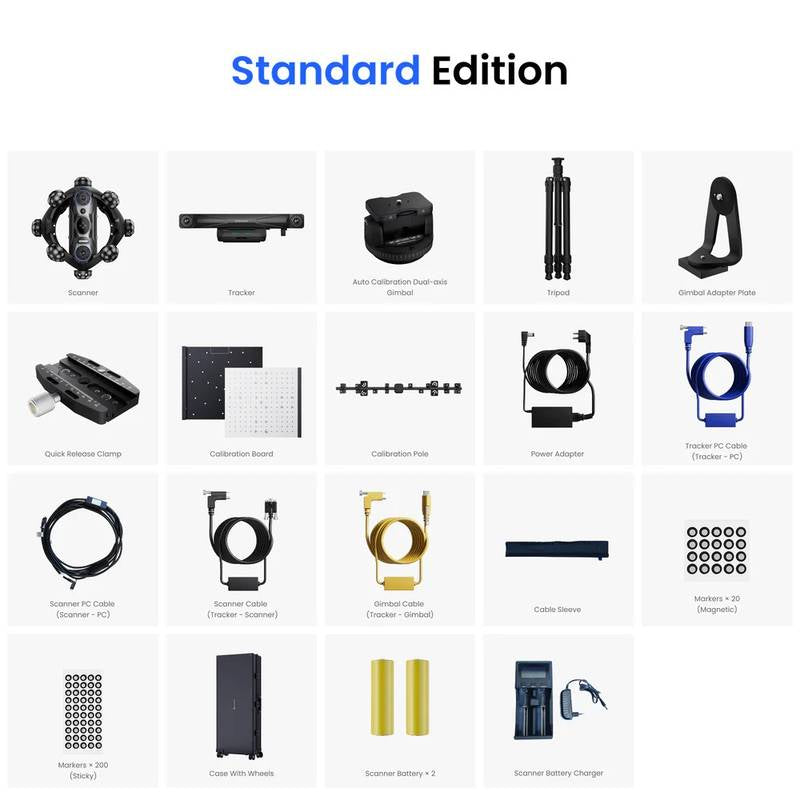

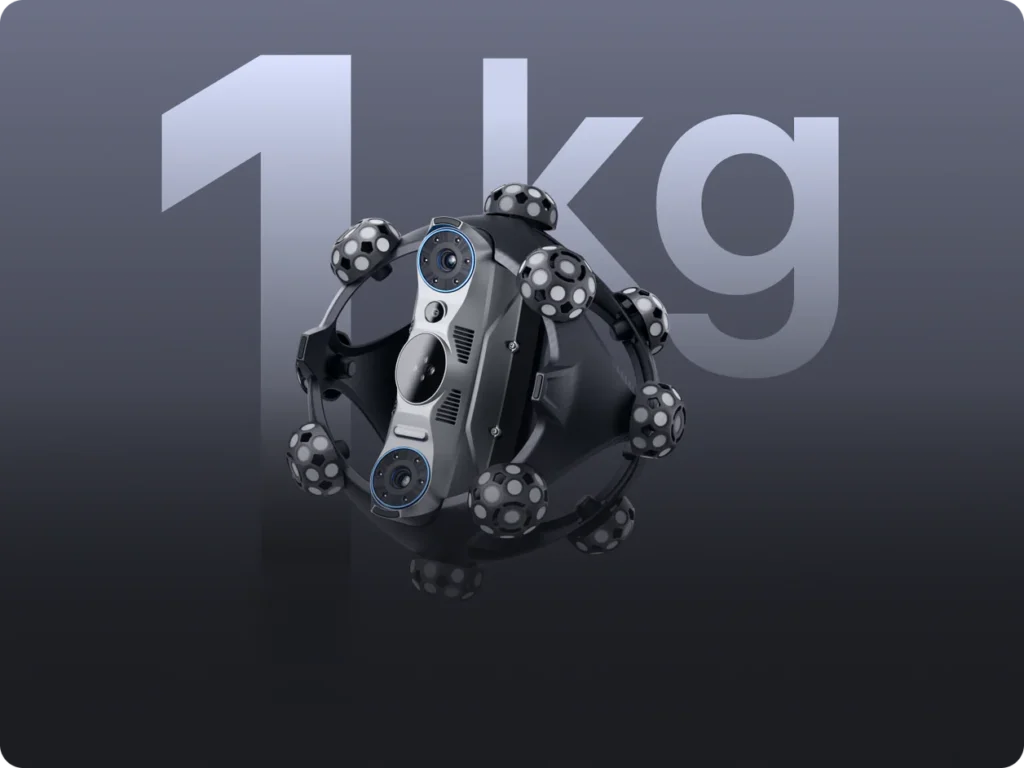

• Portable Design – The scanner weighs only 1 kg, while the tracker weighs 1.5 kg. The complete system and accessories can be transported in the included wheeled carrying case.
• Outdoor Scanning – Designed for greater flexibility in on-site scanning applications.

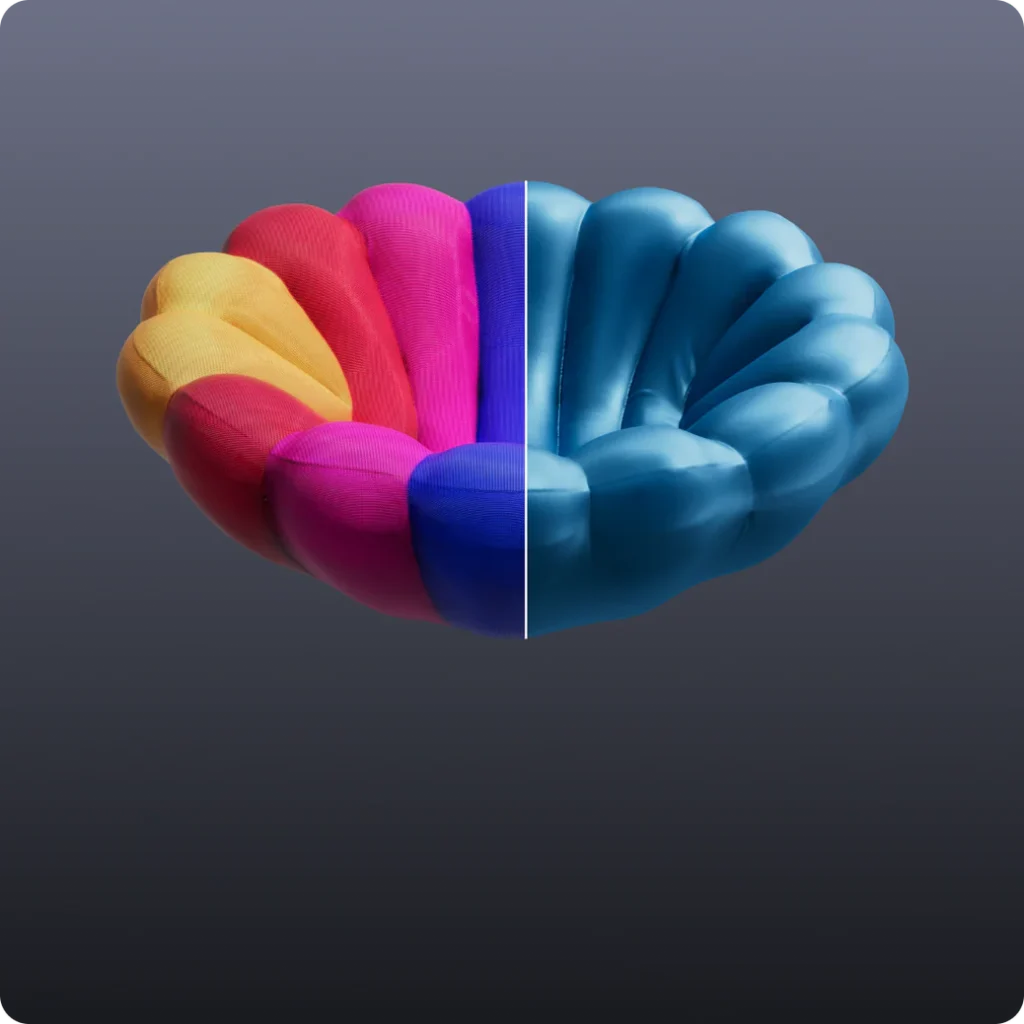

• Detailed Texture Capture – A high-resolution RGB camera captures surface textures for realistic 3D models.
• Temperature Monitoring – Built-in temperature monitoring and rapid thermal stabilization help maintain scanning consistency.
• Efficient Calibration – Automated calibration features simplify setup and help reduce preparation time.
• Professional 3D Data Output – Supports PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats.
• Revo Track Software – Dedicated software for 3D scanning, editing, processing, calibration, and model merging.

Three Scanning Modes

Fine Mode – 30 Blue Cross-Laser Lines
Designed for capturing fine details and complex geometry with scanning speeds of up to 2 million points per second.

Far Mode – 17 Blue Parallel-Laser Lines
Ideal for efficiently capturing larger, low-feature workpieces with a working distance of up to 500 mm.

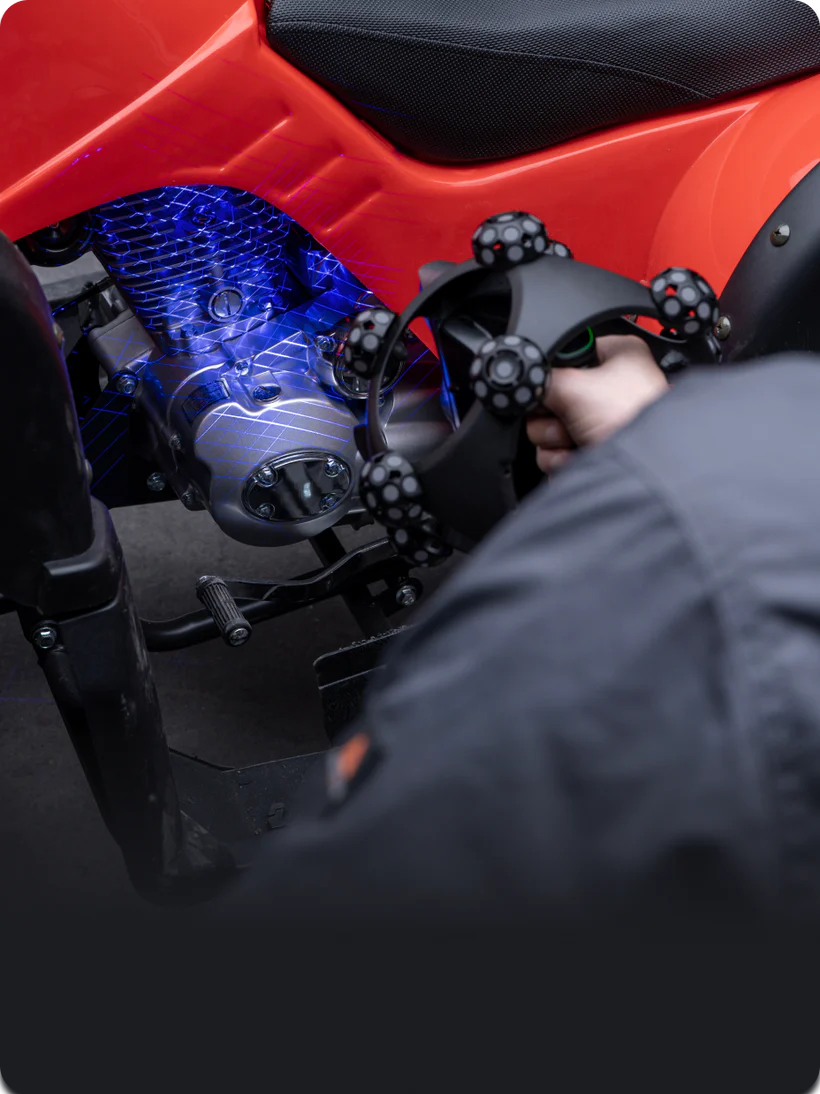

Deep Hole Mode – Single Blue Laser Line
Designed to capture deep holes, cavities, crevices, and other difficult-to-reach areas.

Wireless & Portable

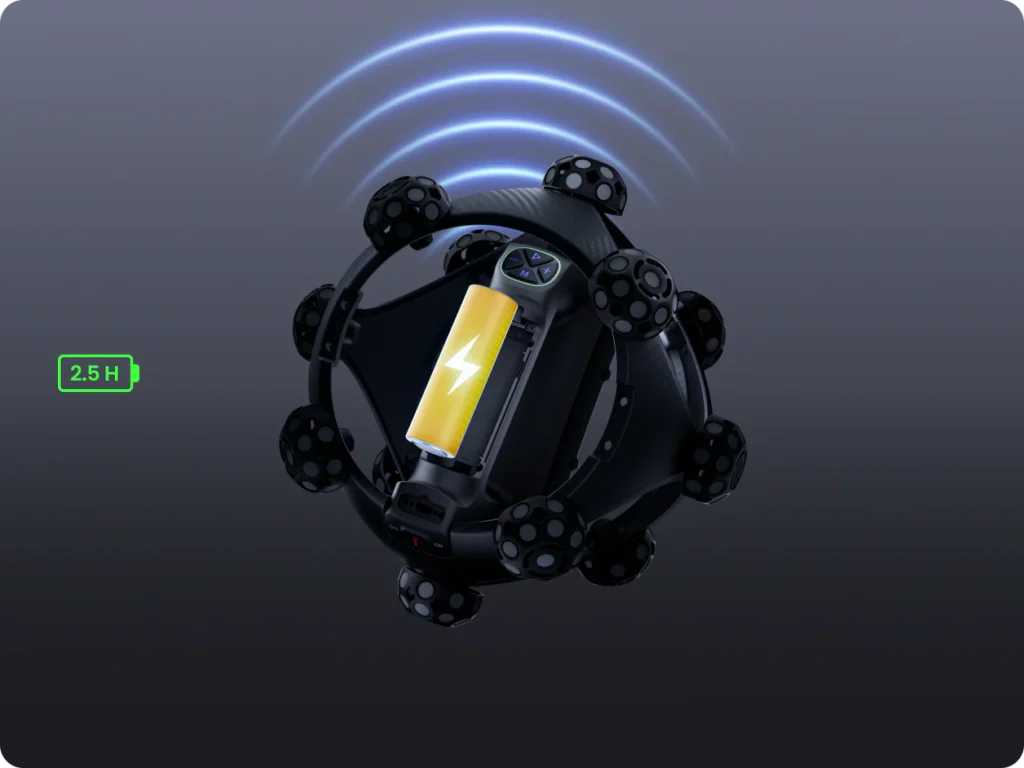

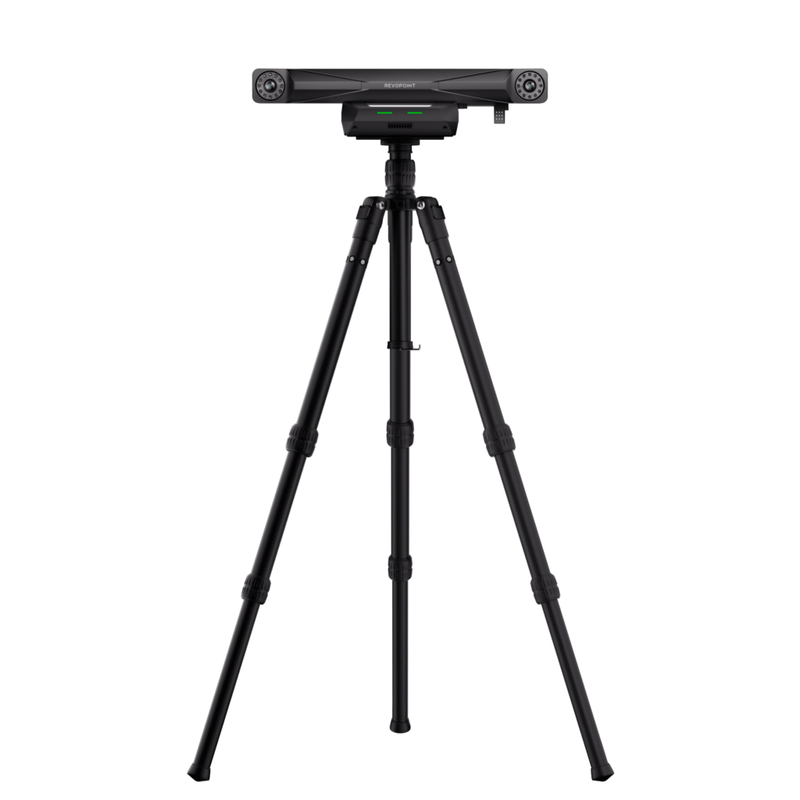

Trackit SR combines a lightweight handheld scanner with a wireless optical tracker. The scanner supports Wi-Fi 6 connectivity and uses a swappable battery with up to 2.5 hours of battery life, allowing greater freedom of movement during scanning.

Ideal Applications

• Reverse engineering
• Quality inspection
• Product development
• Industrial design
• Automotive components
• Aerospace parts
• Large workpiece digitization
• Engineering measurement
• 3D modeling
• Surface and texture capture
