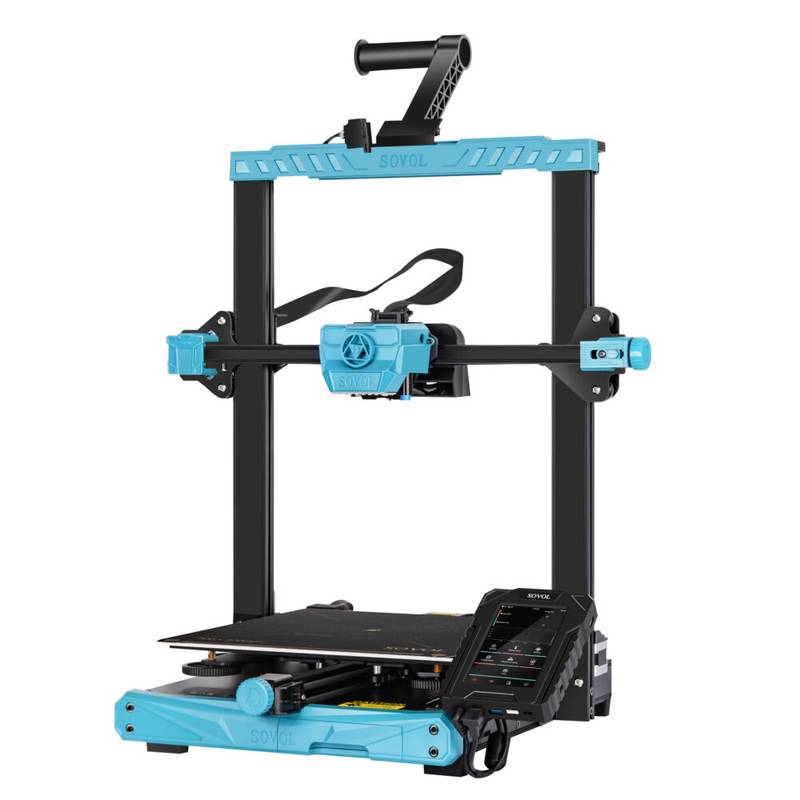

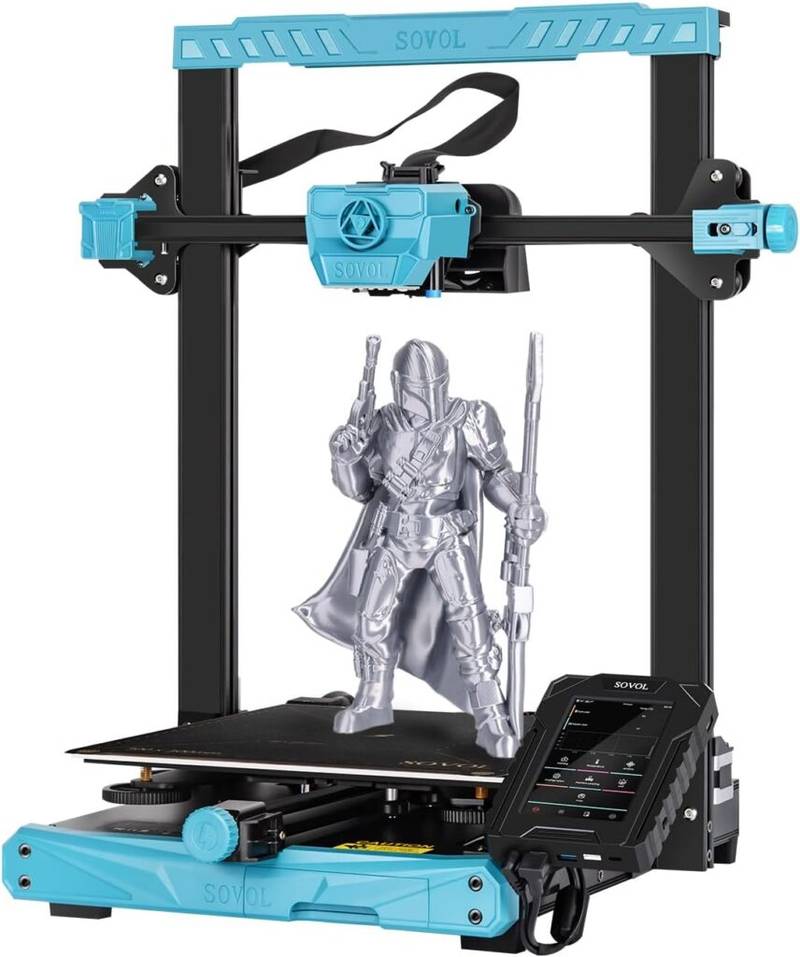

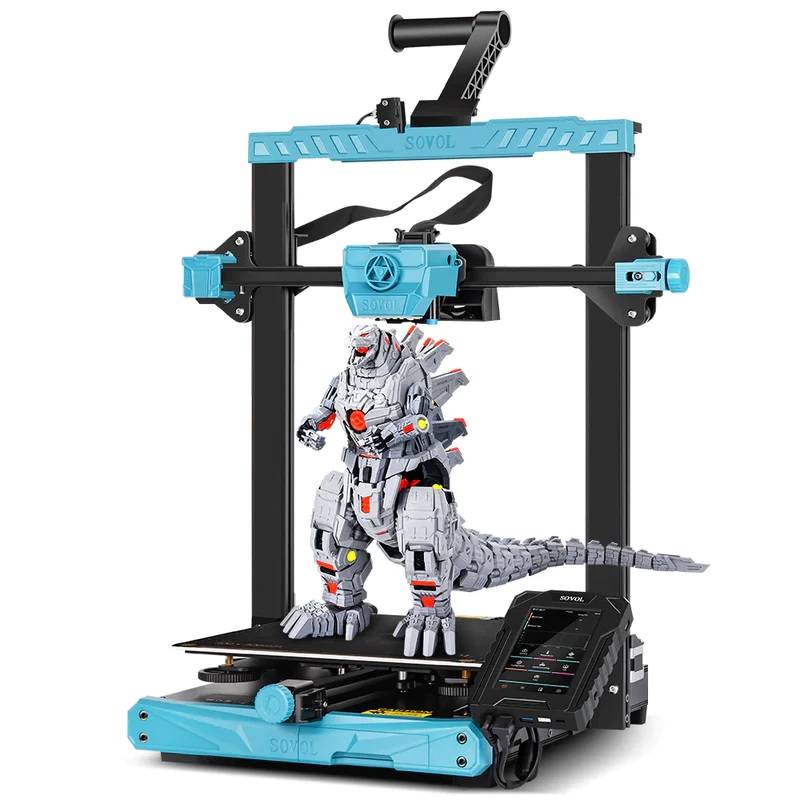

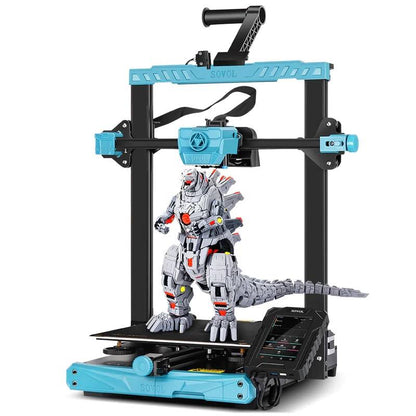

The Sovol SV07 Plus is a large-format, open-frame, high-speed Klipper FDM 3D printer. Its main attraction is getting a 300 × 300 × 350 mm build volume and 500 mm/s headline speed at a relatively low price.

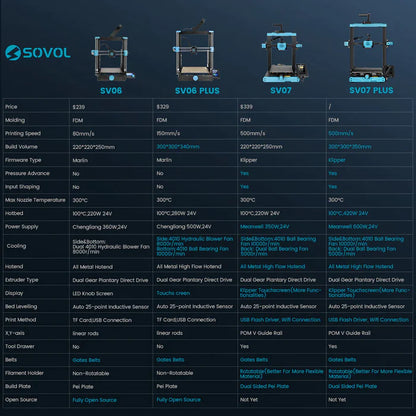

Key features

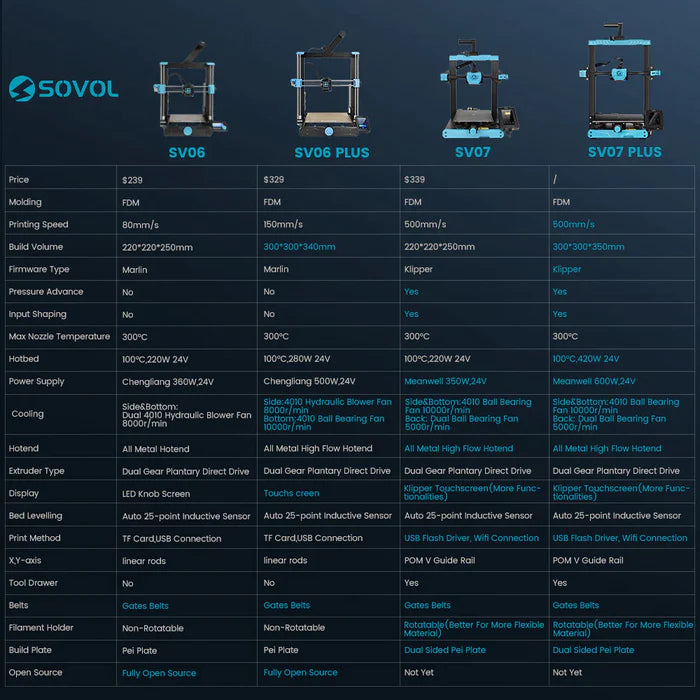

Feature
SV07 Plus
Build volume
300 × 300 × 350 mm
Max speed
500 mm/s
Recommended speed
250 mm/s
Firmware
Klipper
Hotend
All-metal high-flow
Max nozzle temp.
300°C
Bed temperature
Up to 100°C
Extruder
Planetary dual-gear direct drive
Bed leveling
25-point automatic leveling
Z alignment
G34 Auto-Z Align
Cooling
Triple-fan cooling

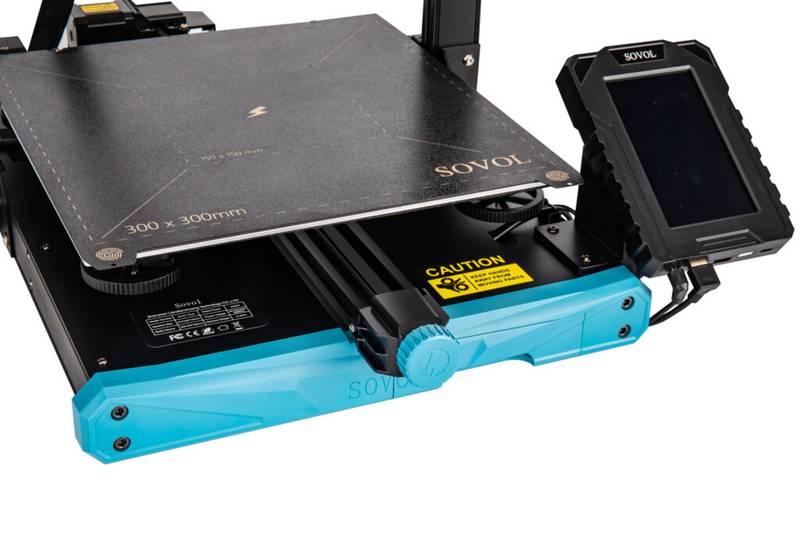

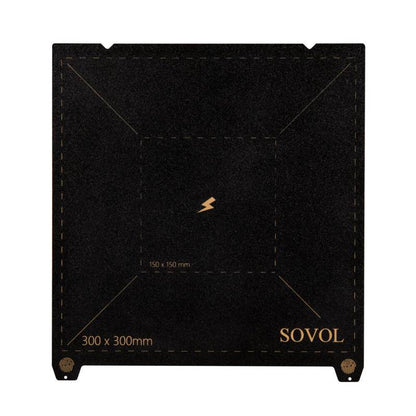

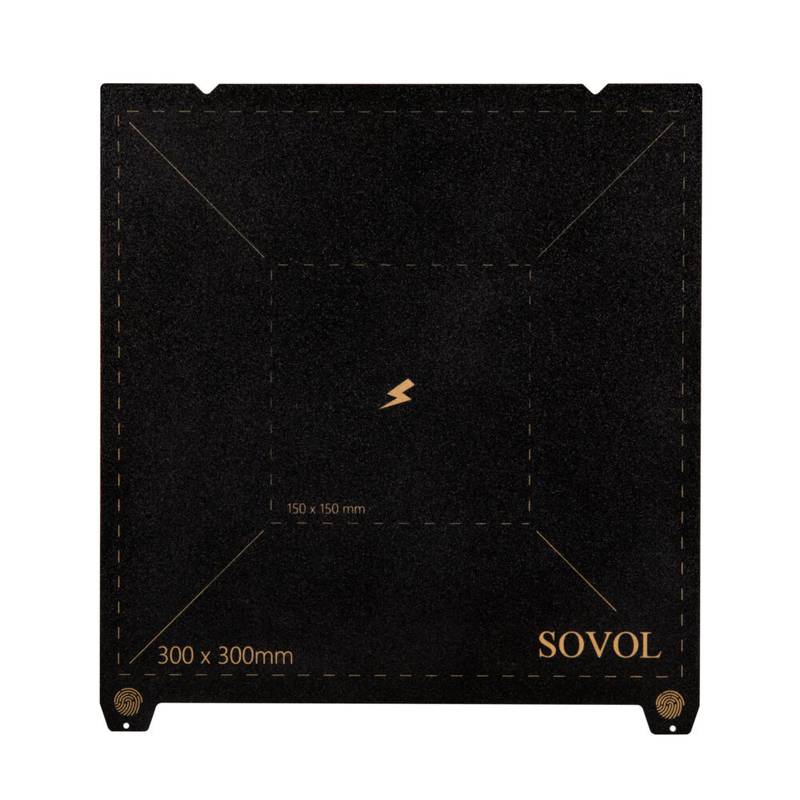

Build plate
Reversible magnetic PEI

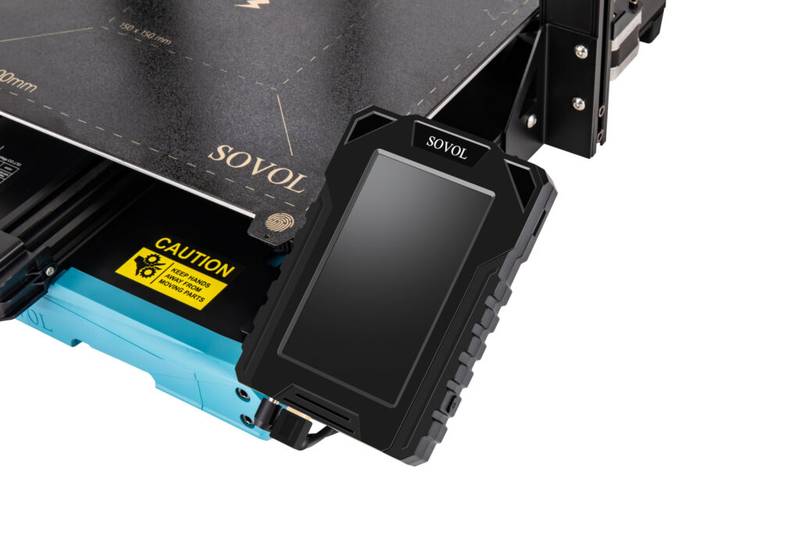

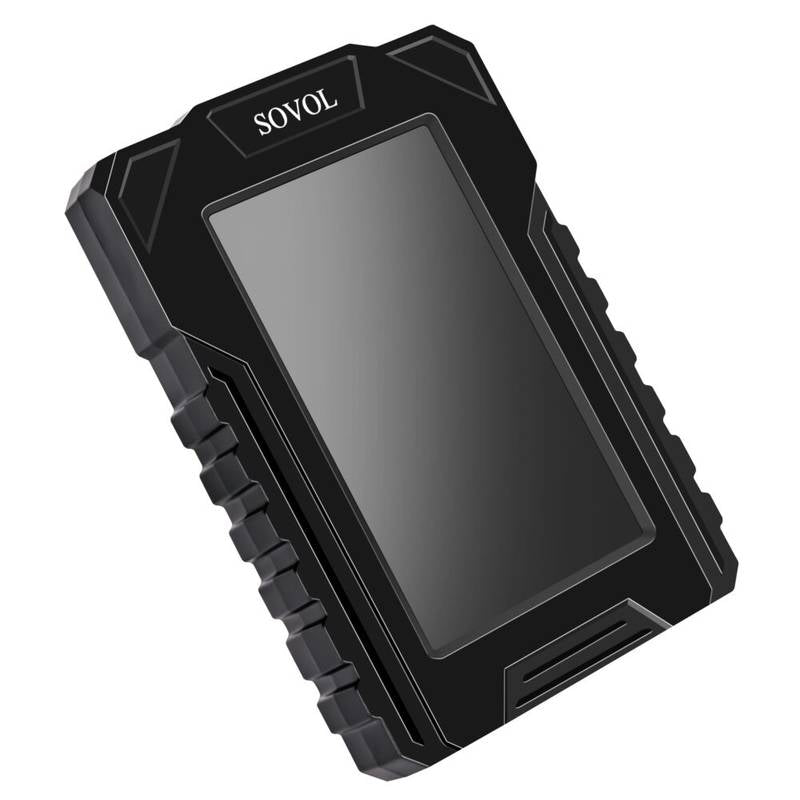

Screen
5-inch Klipper touchscreen
Connectivity
Wi-Fi, USB, USB-C
Power supply
600W Mean Well
Filament sensor
Yes
Z axis
Dual Z
Accuracy
±0.1 mm
Main advantages
1. Large printing area The 300 × 300 × 350 mm volume is considerably larger than the Centauri Carbon's 256³ mm volume, making the SV07 Plus better for larger models and batch printing.
2. Klipper + high-speed printing Klipper provides Input Shaping and Pressure Advance, allowing the machine to run at up to 500 mm/s. Sovol recommends 250 mm/sfor normal printing rather than treating 500 mm/s as the everyday speed.

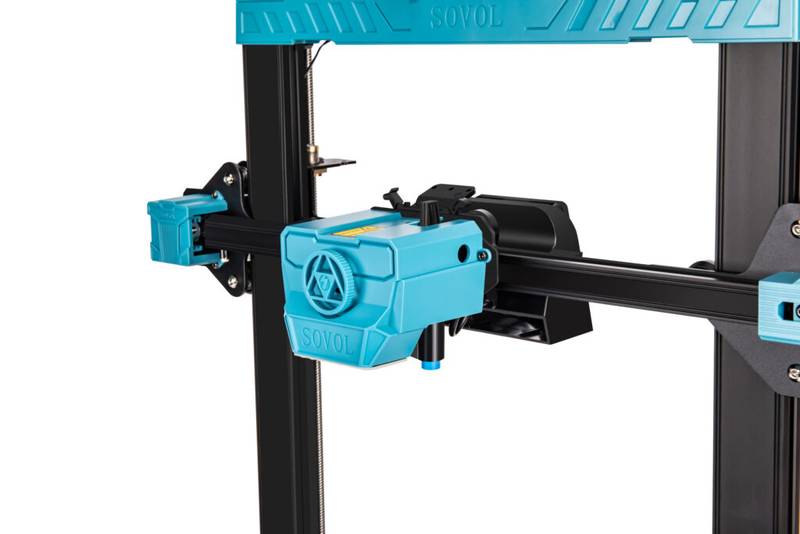

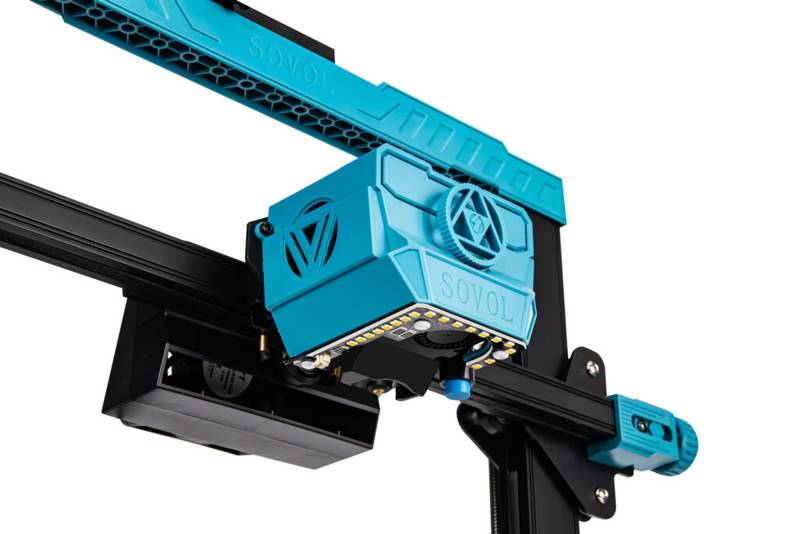

3. Direct-drive extruder The planetary dual-gear direct-drive system is particularly useful for TPU and other flexible filaments, while providing good extrusion control.

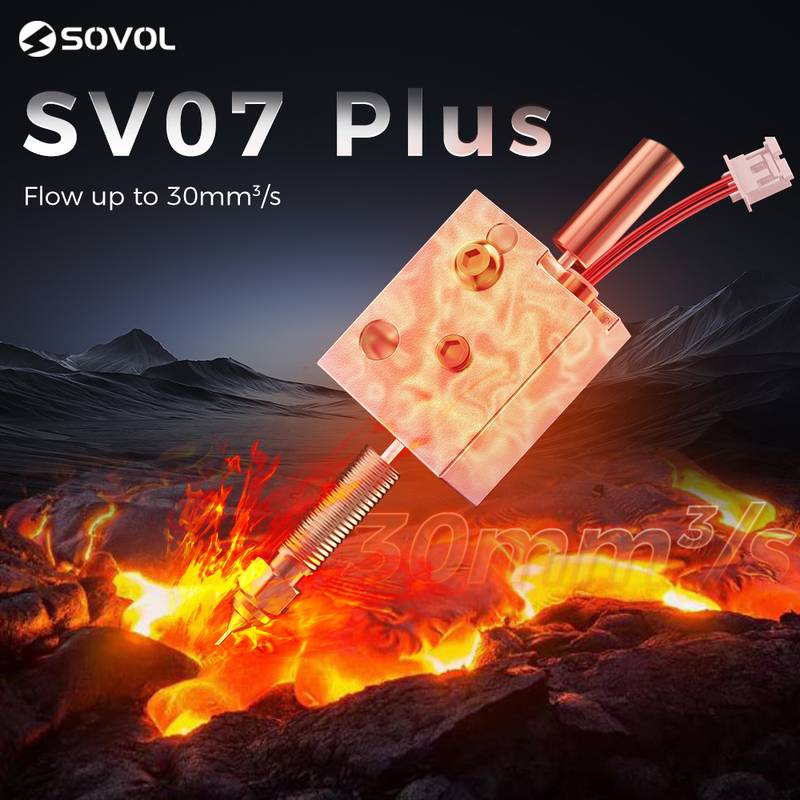

4. 300°C all-metal hotend The high-flow hotend supports higher-temperature materials and is designed to maintain extrusion at high speeds. Sovol lists PLA, PETG, TPU, ABS and carbon-fiber materials among supported materials.
5. Automatic leveling + G34 The printer uses 25-point automatic bed leveling, while G34 Auto-Z Align automatically synchronizes the X-axis using its dual-Z system.
