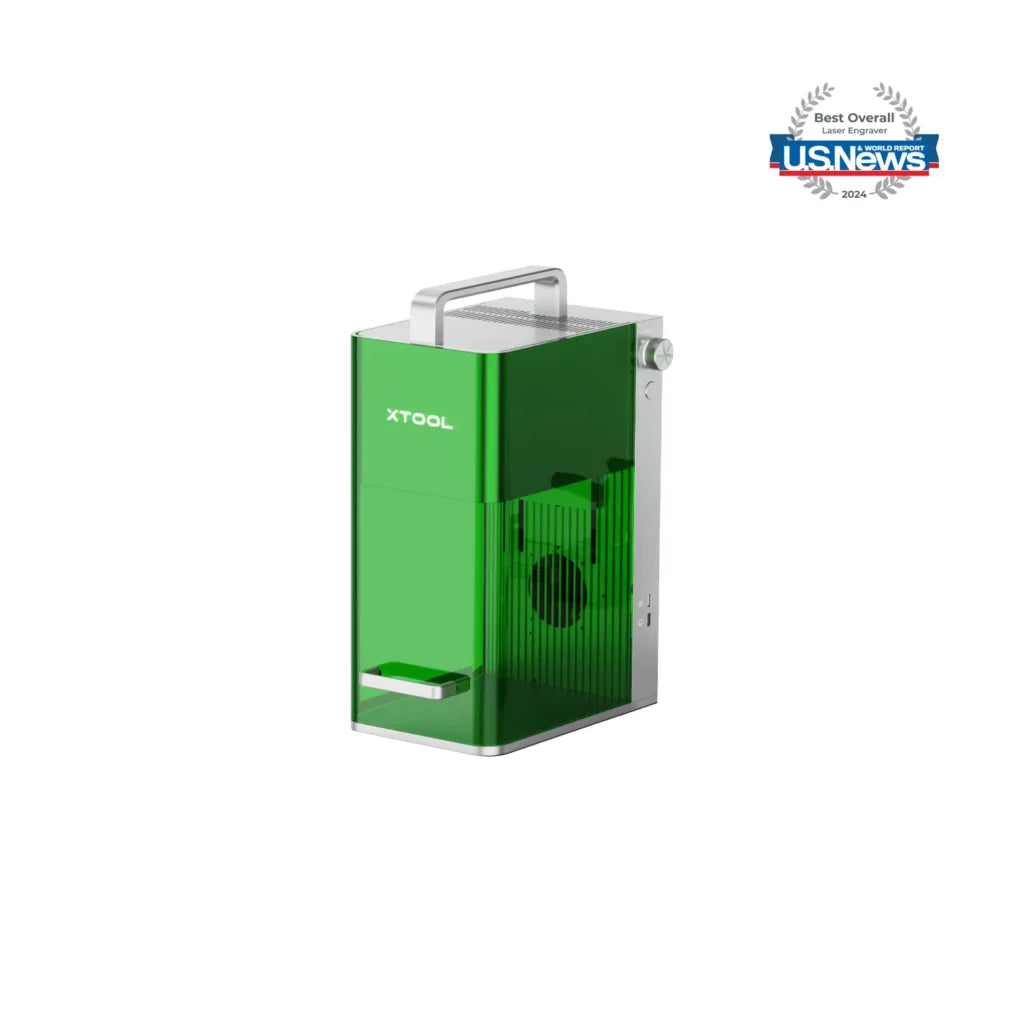

The xTool F1 is a compact, enclosed dual-laser engraver designed for fast personalization and small-business production.
Key features
Dual laser system: 10W 455 nm blue diode laser + 2W 1064 nm infrared (IR) laser, allowing you to work with a much wider range of materials without changing laser heads.
Ultra-fast engraving: Maximum processing speed of 4,000 mm/s, making it particularly suitable for batch personalization and quick customer orders.
Fine engraving: xTool specifies engraving accuracy of up to 0.00199 mm, with a diode laser spot size of 0.08 × 0.06 mm and IR spot size of 0.03 × 0.03 mm.
Compact and portable: Measures approximately 179 × 235 × 334 mmand weighs 4.6 kg, so it can be moved relatively easily between workspaces or taken to events.
115 × 115 mm working area: The standard engraving field is 115 × 115 mm, making it best suited to small products such as jewelry, keychains, cards, coasters and personalized gifts.
Auto + manual focusing: You can enter material thickness for automatic focusing or adjust focus manually.
Live preview/framing: Lets you preview where the design will be engraved before starting, which helps with positioning small items accurately.

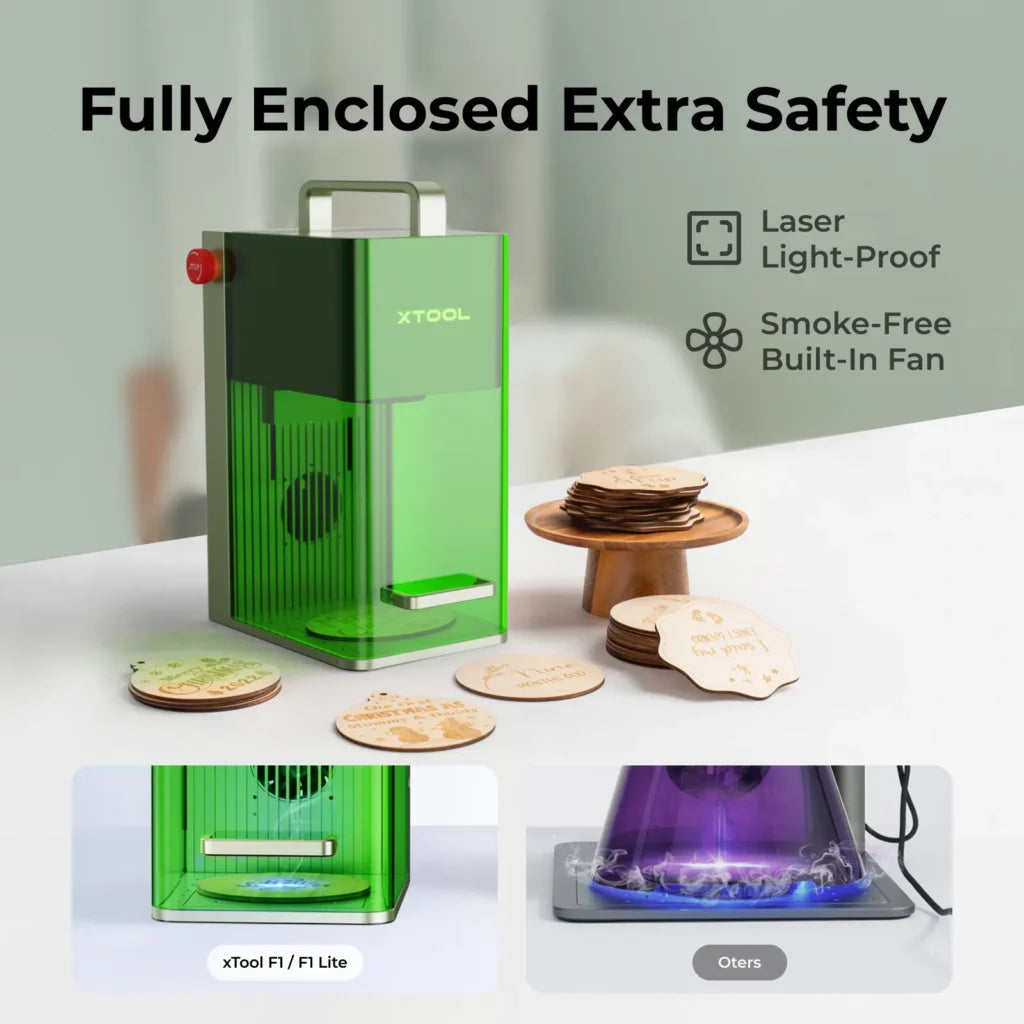

Enclosed protective design: The integrated enclosure shields the laser and helps contain smoke. It also provides a connection for smoke extraction/purification.
Wide material range: The diode laser can work with materials such as wood, leather, paper, MDF, fabric, some acrylic, glass, ceramics and slate. The IR laser is particularly useful for metals and certain plastics/black acrylic.
Cutting capability: Depending on material and settings, the 10W diode can cut materials such as wood, leather and dark acrylic. xTool's current FAQ lists up to 8 mm basswood and 6 mm black acrylic under specified conditions.
Rotary engraving support: Optional rotary accessories can be used for cylindrical objects, spheres and rings, including tumblers, mugs, bottles and jewelry.
Software compatibility: Works with xTool Creative Space (XCS) and is compatible with LightBurn.
