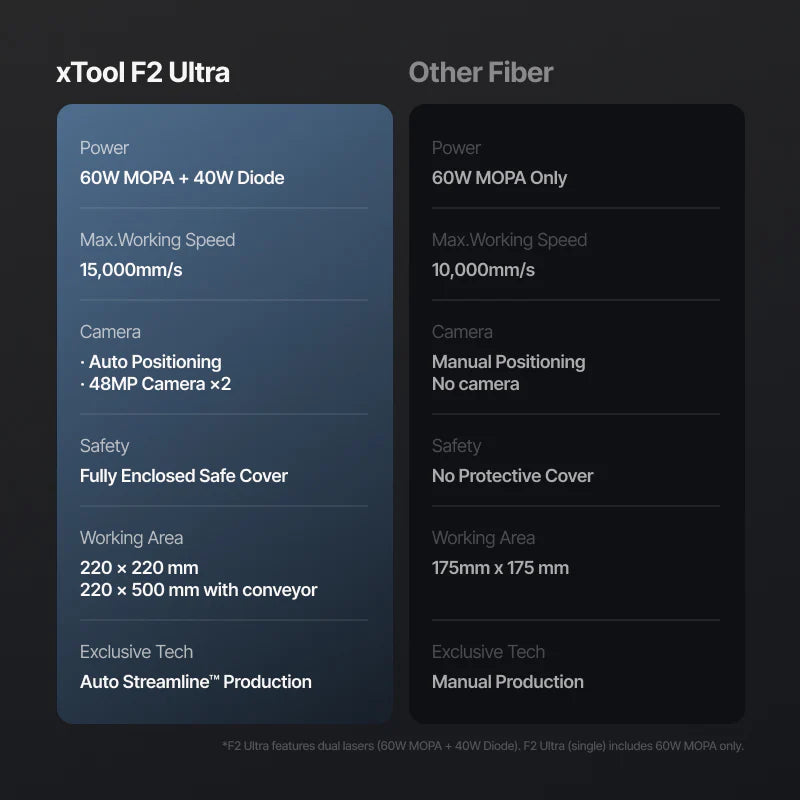

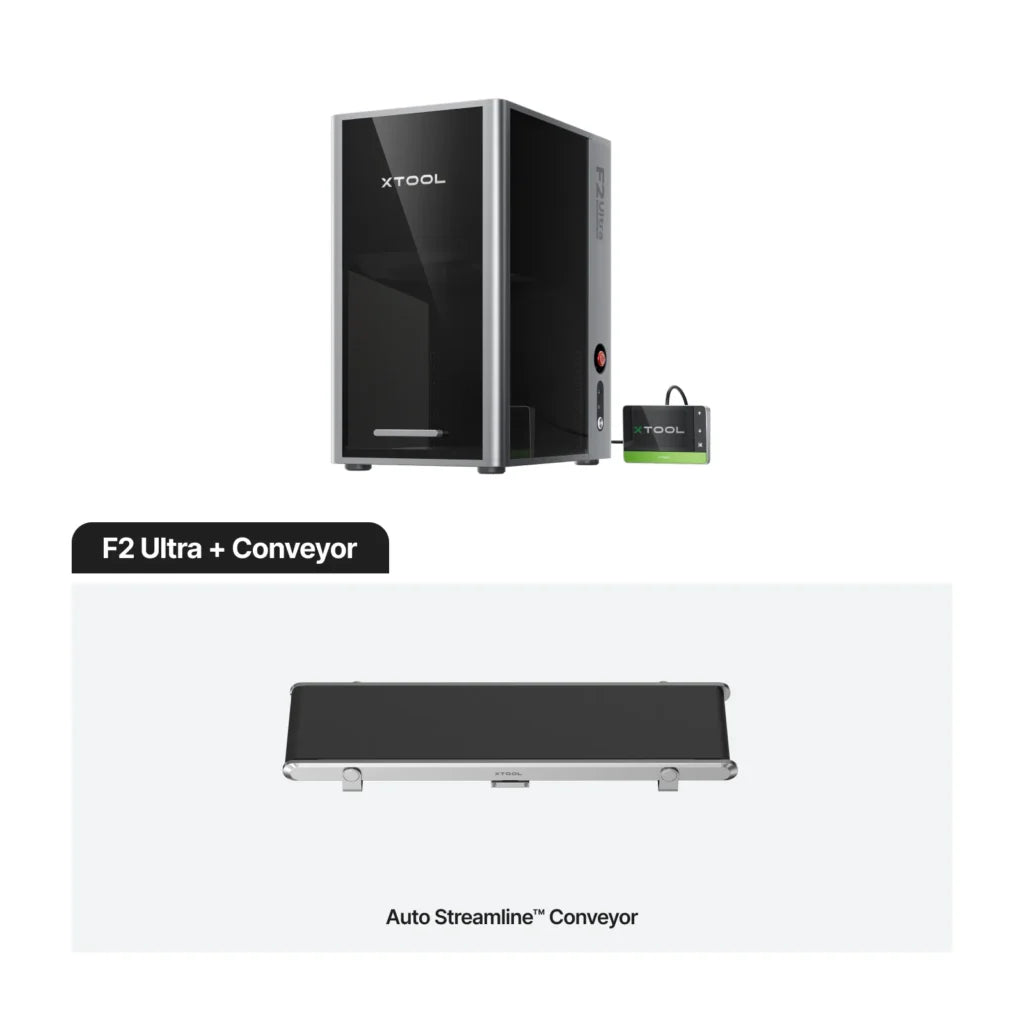

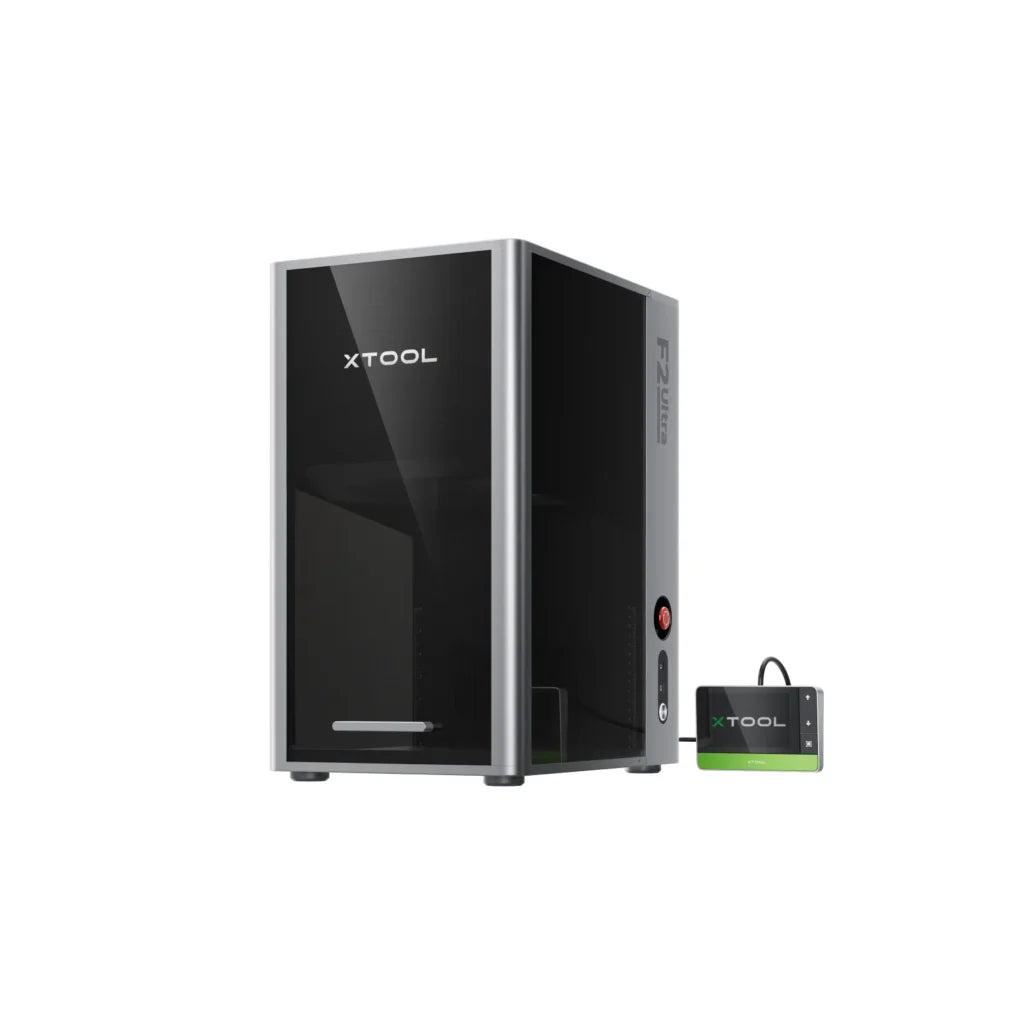

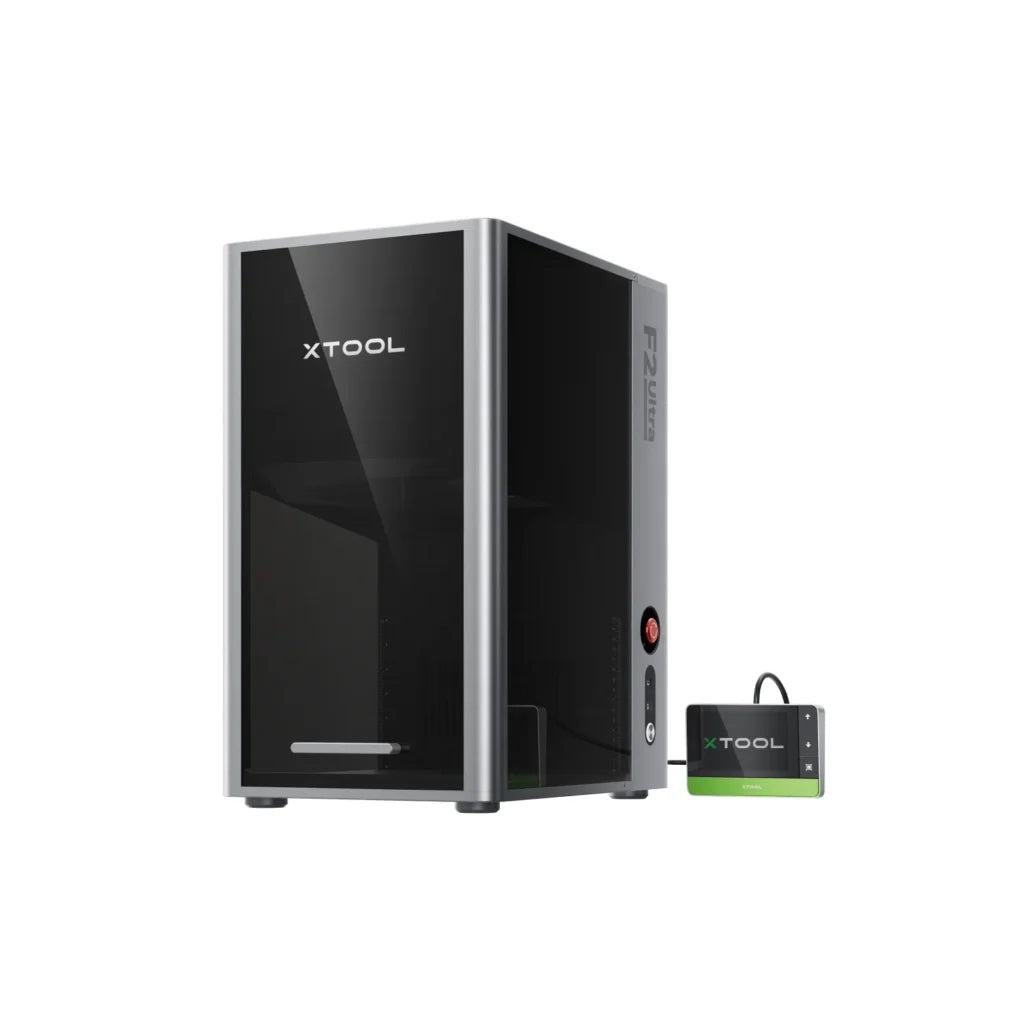

The xTool F2 Ultra + Conveyor combines a 60W MOPA infrared laser + 40W blue-diode laser with an automatic conveyor system, expanding the standard 220 × 220 mm work area to 220 × 500 mm (8.6 × 19.6 in).
Main features
60W MOPA fiber laser — High-power metal engraving, deep engraving, embossing and color marking.
100+ metal colors — xTool claims 100+ consistent colors on materials such as stainless steel and titanium.
40W blue diode laser — For wood, leather, MDF, paper, fabric, dark acrylic, glass, ceramic, slate and other compatible non-metals.

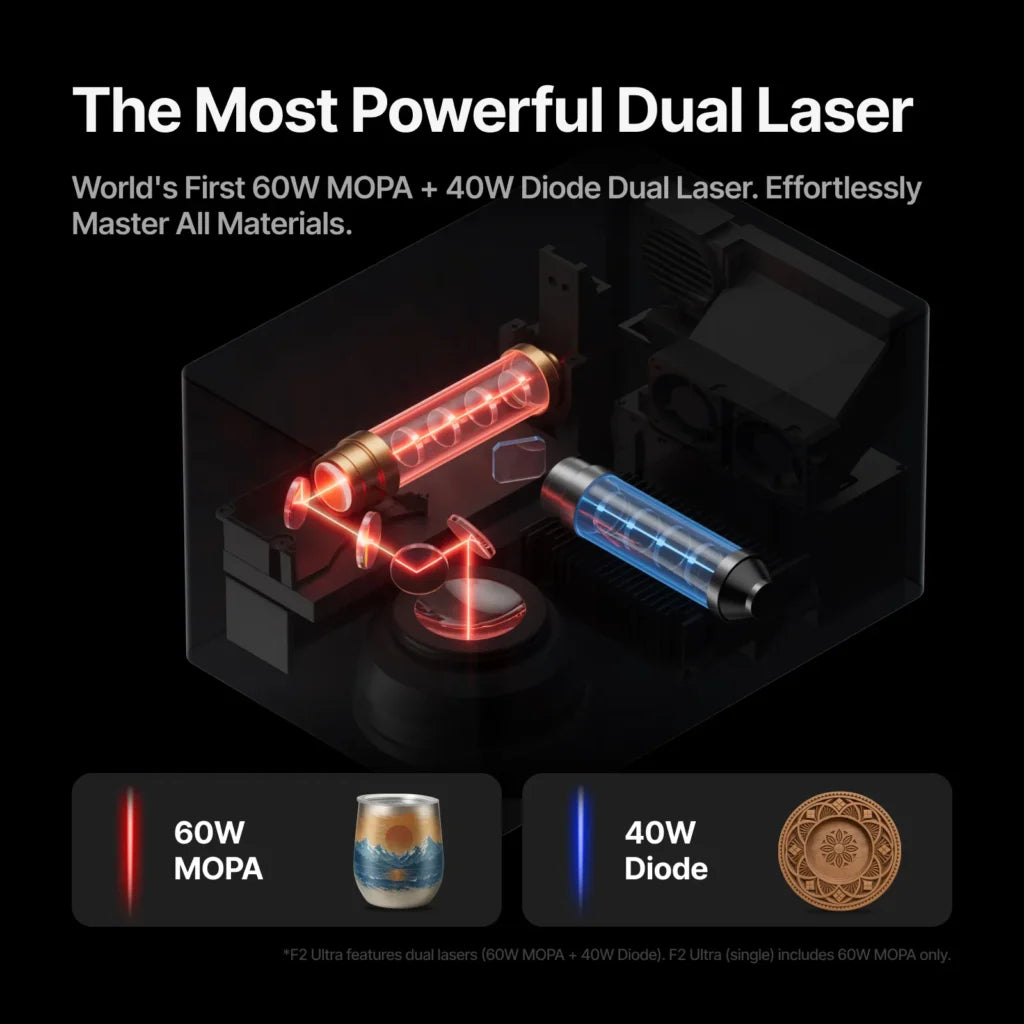

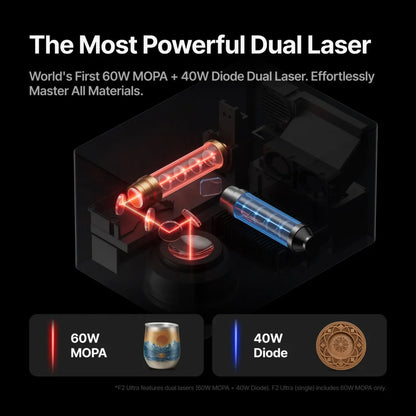

Dual-laser versatility — One machine handles both metal-focused MOPA work and non-metal engraving/cutting.

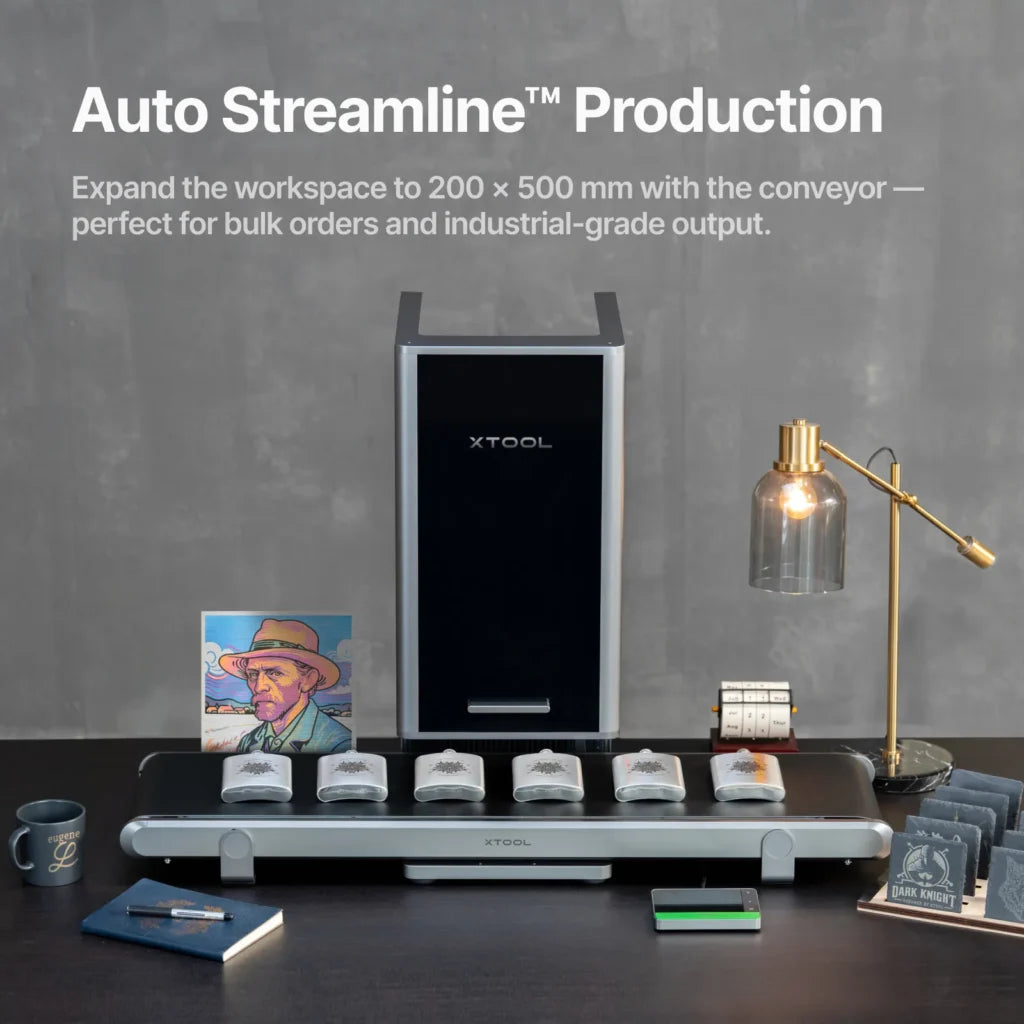

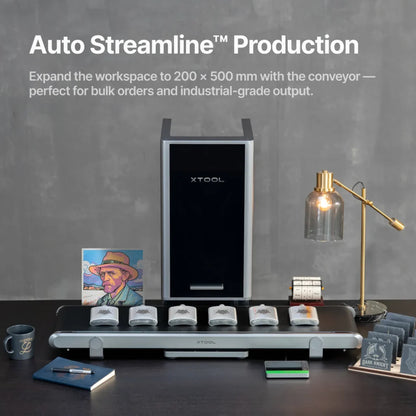

Conveyor working area: 220 × 500 mm — Compared with the standard 220 × 220 mm internal area, the conveyor gives a substantially longer processing zone.
15,000 mm/s maximum speed — Designed for high-throughput engraving and production work.

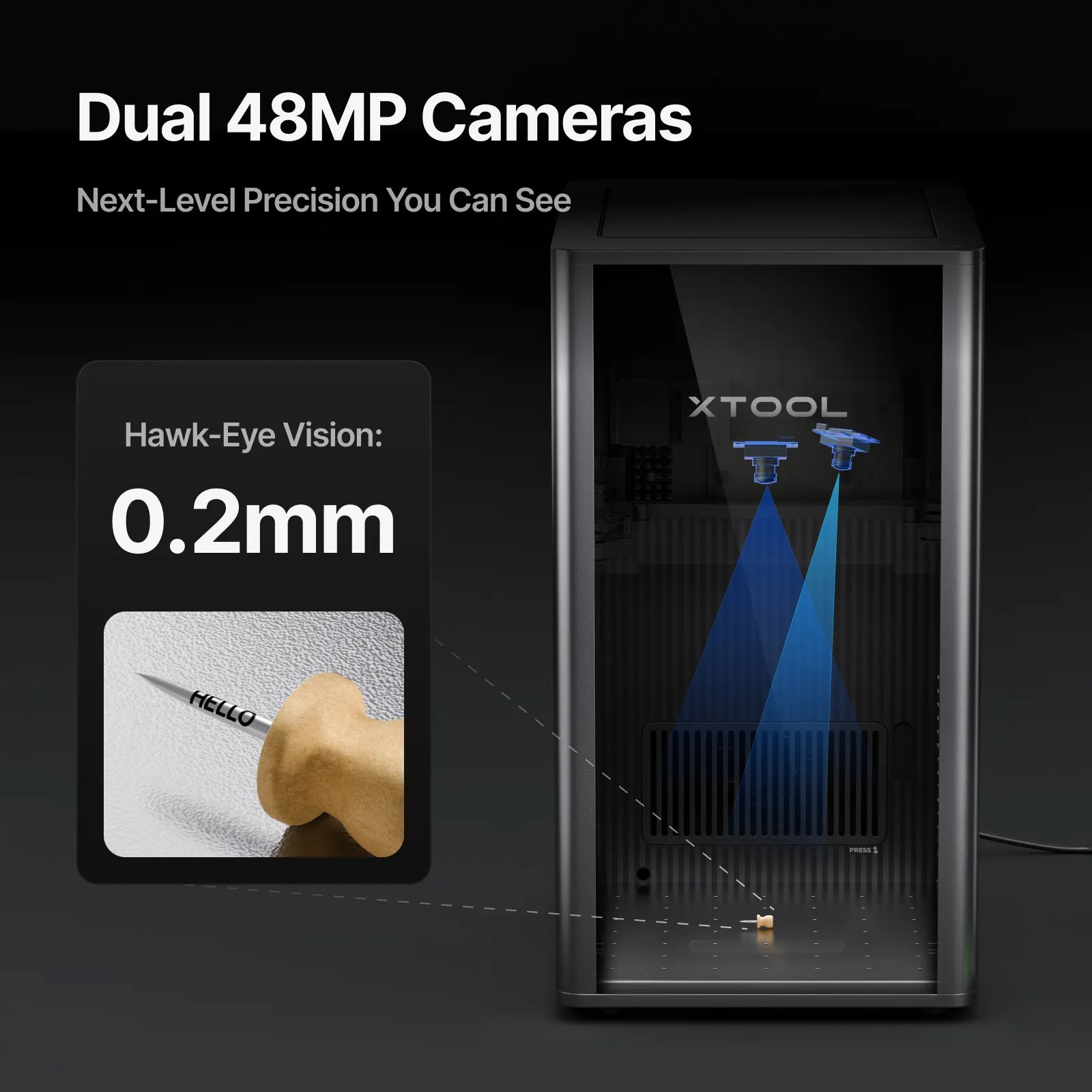

48MP dual cameras — High-resolution camera positioning for accurate alignment, including small objects; xTool specifies 0.2 mm positioning precision.
Fine laser spots — 40W diode: 0.08 × 0.10 mm; 60W MOPA: 0.03 × 0.03 mm.
Metal cutting — xTool specifies up to 2 mm brass, 2 mm stainless steel and 1 mm aluminum, depending on conditions/settings.
Wood/acrylic cutting — Up to 23 mm basswood and 20 mm acrylic in multiple passes according to xTool's specifications.
Rotary engraving — Supports rotary engraving up to 150 mm diameter.
150 mm maximum processing height — Useful for thicker workpieces and certain rotary applications.
Autofocus — Automatic focusing simplifies setup.
Enclosed design — Enclosed construction, eye-protection cover and fire-safety stop. xTool classifies the machine as Class 4 laser safety.

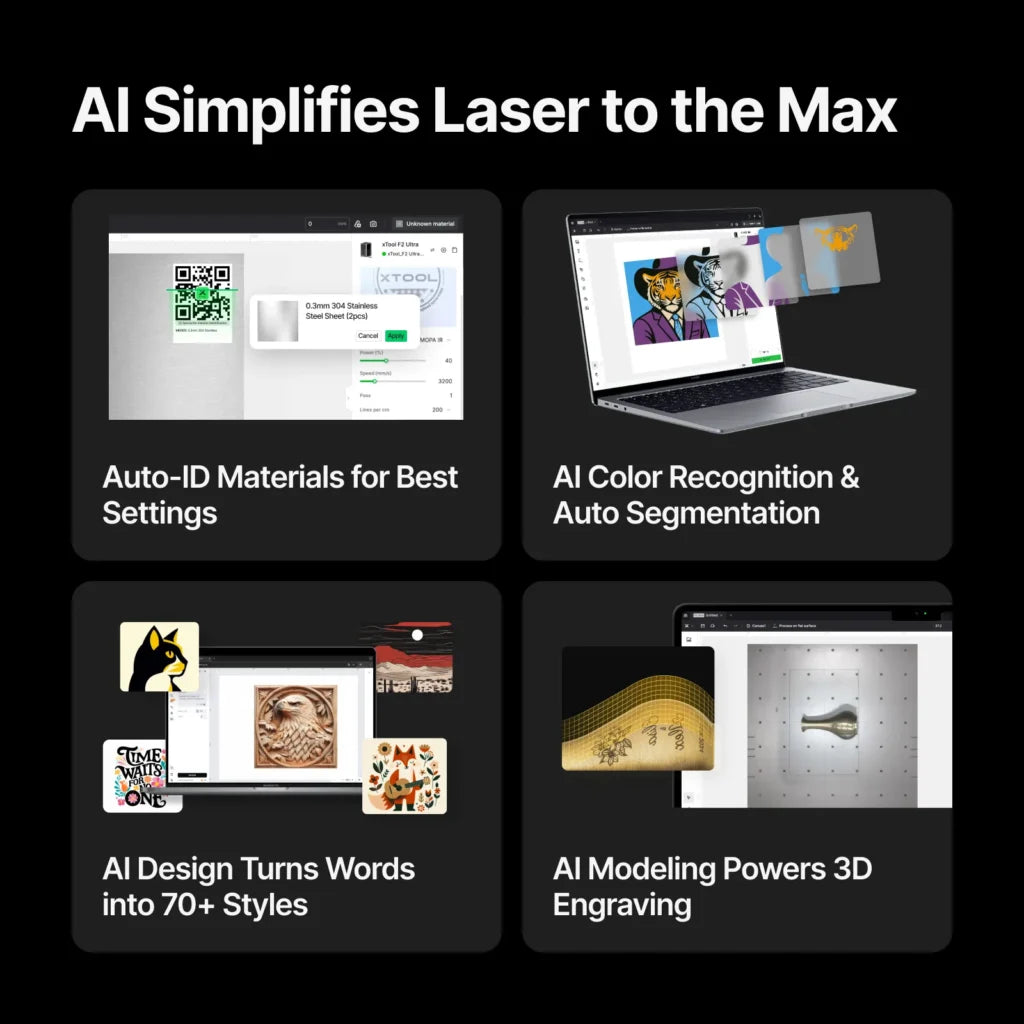

Smart software — xTool Studio includes material presets and AI-assisted material recognition.
Connectivity — USB, Wi-Fi and IP connectivity; compatible with Windows and macOS.
Pre-assembled — xTool lists the F2 Ultra as pre-assembled.
