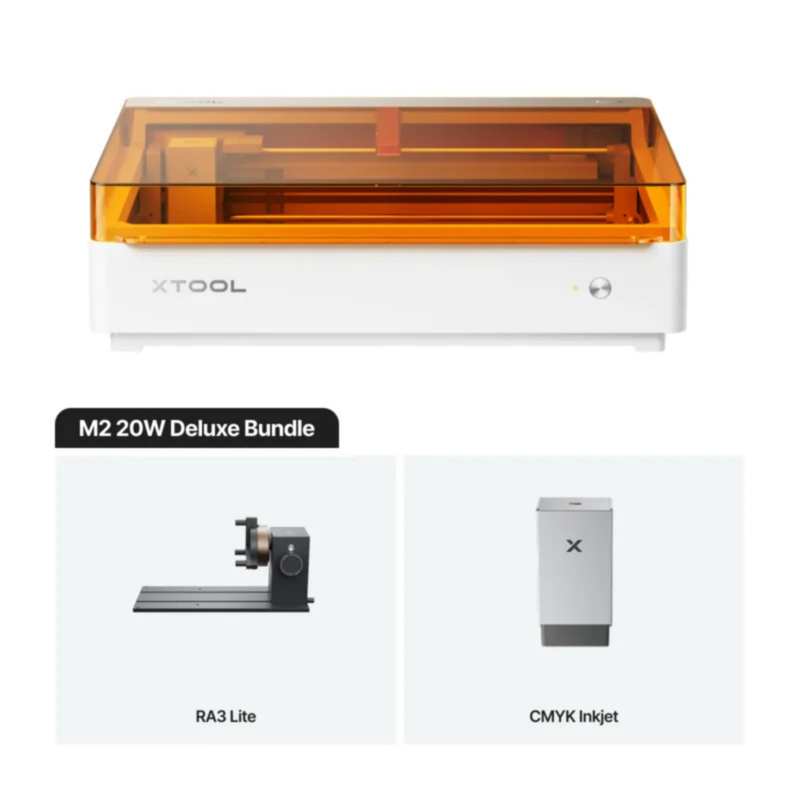

XTool M2 Color Craft Laser Cuter& Engraver 20W Deluxe Bundle

Powerful 20W Laser

• 20W blue-diode laser for stronger cutting performance.
• Laser working area: 426 × 320 mm (16.7 × 12.5 in).
• Maximum processing speed: 600 mm/s.
• Laser spot size: approximately 0.06 × 0.08 mm.
• Up to 10 mm basswood in one pass under specified conditions.
• Up to 8 mm black acrylic in one pass under specified conditions.
• Suitable for wood, acrylic, leather, paper, cardboard, bamboo and other compatible materials.

 Full-Color CMYK Printing

The Deluxe Bundle includes the CMYK inkjet capability, allowing the M2 to print colorful designs directly onto compatible materials.

• Cyan, Magenta, Yellow + Black printing.
• Up to 1200 DPI print resolution.
• Supports full-color artwork with true black.
• Suitable for paper, wood, boards, fabric and similar materials.
• Water-based ink.
• xTool states approximately 400 pages per cartridge at 5% coverage, although actual yield varies with print density and artwork.

Print + Cut Workflow

One of the biggest advantages of the Deluxe package is the combination of CMYK printing and 20W laser cutting.

You can:

Design → Print in CMYK → Position automatically → Laser cut

• Full-color stickers
• Labels
• Product tags
• Cake toppers
• Printed ornaments
• Custom packaging
• Acrylic decorations
• Personalized gifts
• Wooden printed products

The built-in cameras help align the print and cutting operations.

Dual-Camera Smart Positioning

The M2 has built-in cameras for easier material positioning and preview.

• 5MP panoramic camera
• 2MP close-range camera
• Camera-based positioning
• Autofocus
• Positioning precision up to approximately 0.2 mm
• Ranging precision approximately 0.1 mm with probe.

This is particularly useful when you are placing designs on irregularly positioned materials.

Modular System

The M2 isn't limited to the included 20W laser.

The platform can work with:

• 20W blue-diode laser — included
• 10W blue-diode laser — alternative
• CMYK inkjet module — included with the Print & Cut/Deluxe configurations
• 3W IR laser module — optional add-on for different engraving applications.

Rotary Engraving Support

The M2 supports compatible rotary accessories such as the xTool RA3 Lite, enabling 360° engraving on:

• Tumblers
• Cups
• Bottles
• Cylindrical objects
• Spherical objects

Maximum supported rotary diameter is listed at 100 mm.

Class 1 Enclosed Design

The M2 uses an enclosed desktop design intended for safer operation, with safety mechanisms that stop laser operation when the enclosure is opened during processing.

This makes it much more suitable for a home, studio, classroom or small-business environment than an open-frame laser.

Easy Crafting Workflow

The M2 is designed as a pre-assembled machine, reducing setup time. It also uses xTool's software ecosystem, templates and camera positioning to simplify the workflow.
