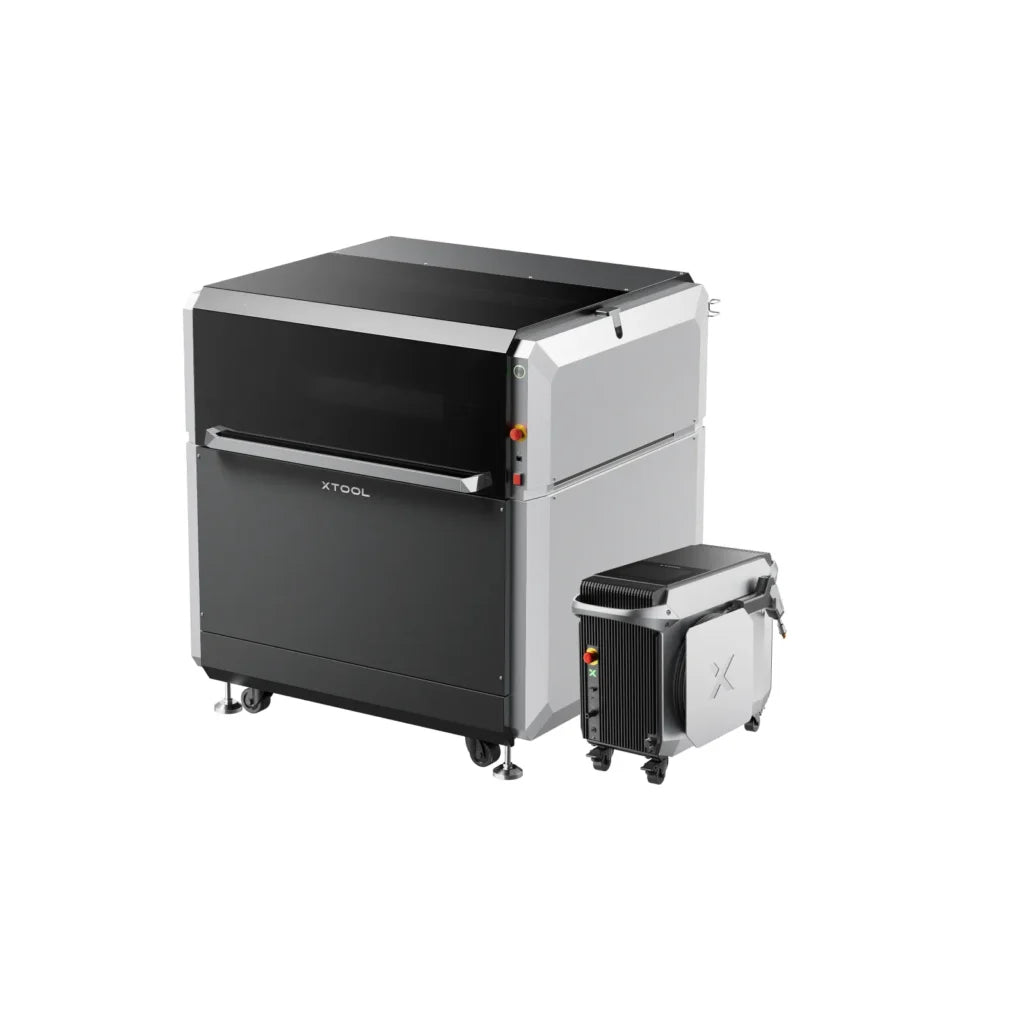

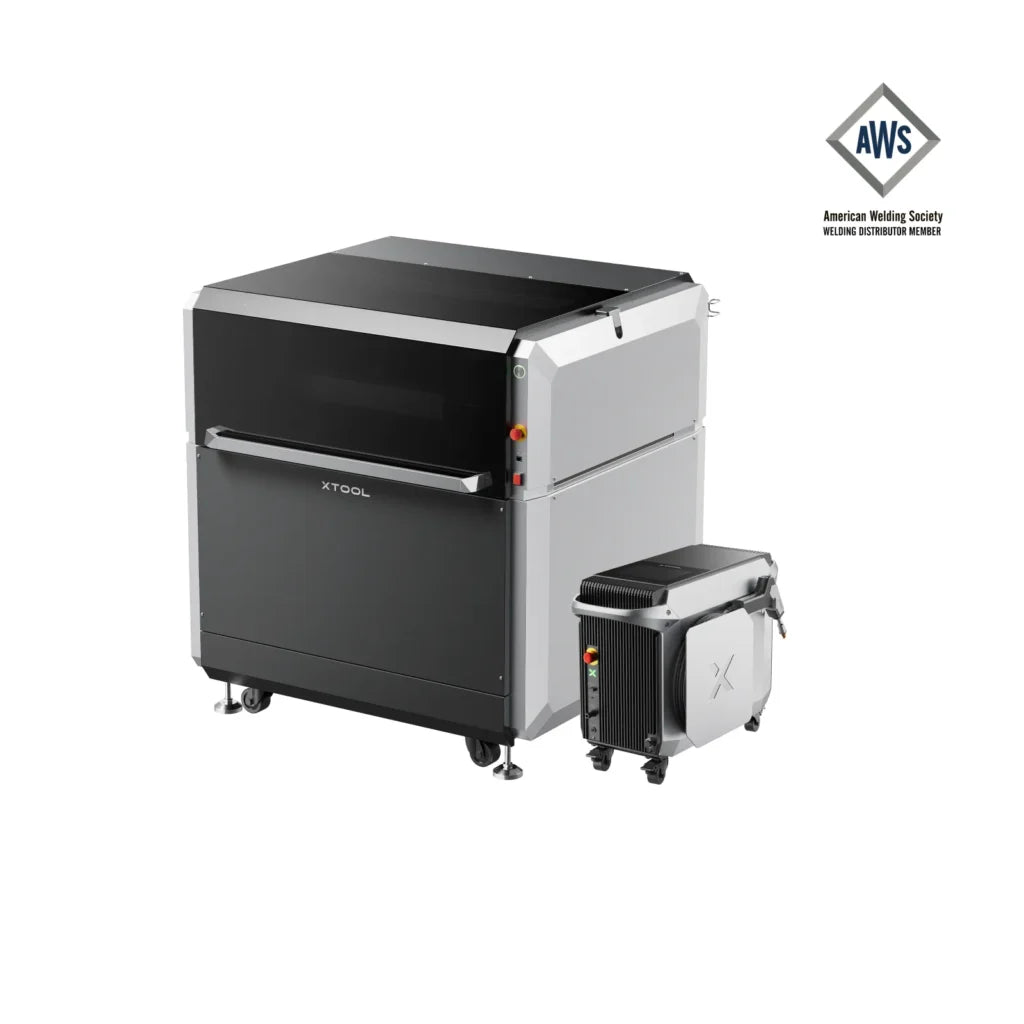

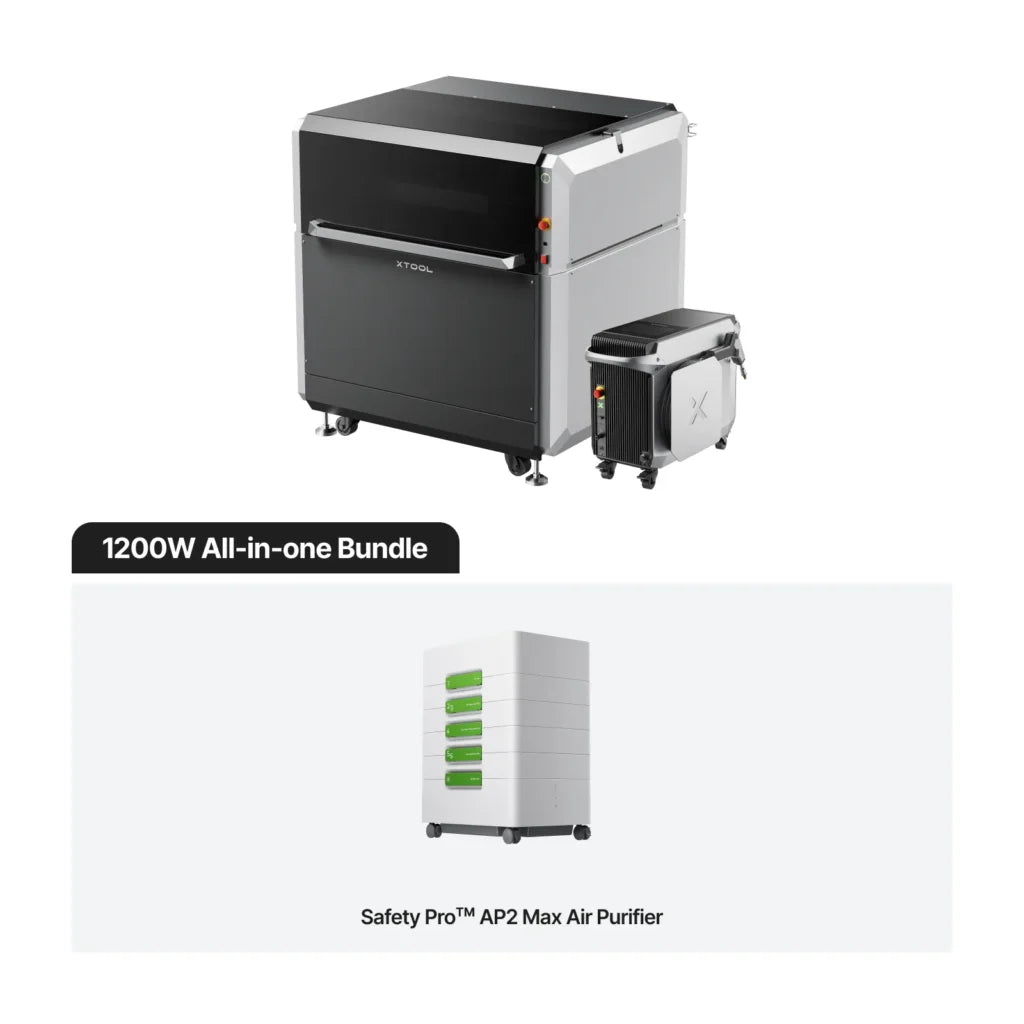

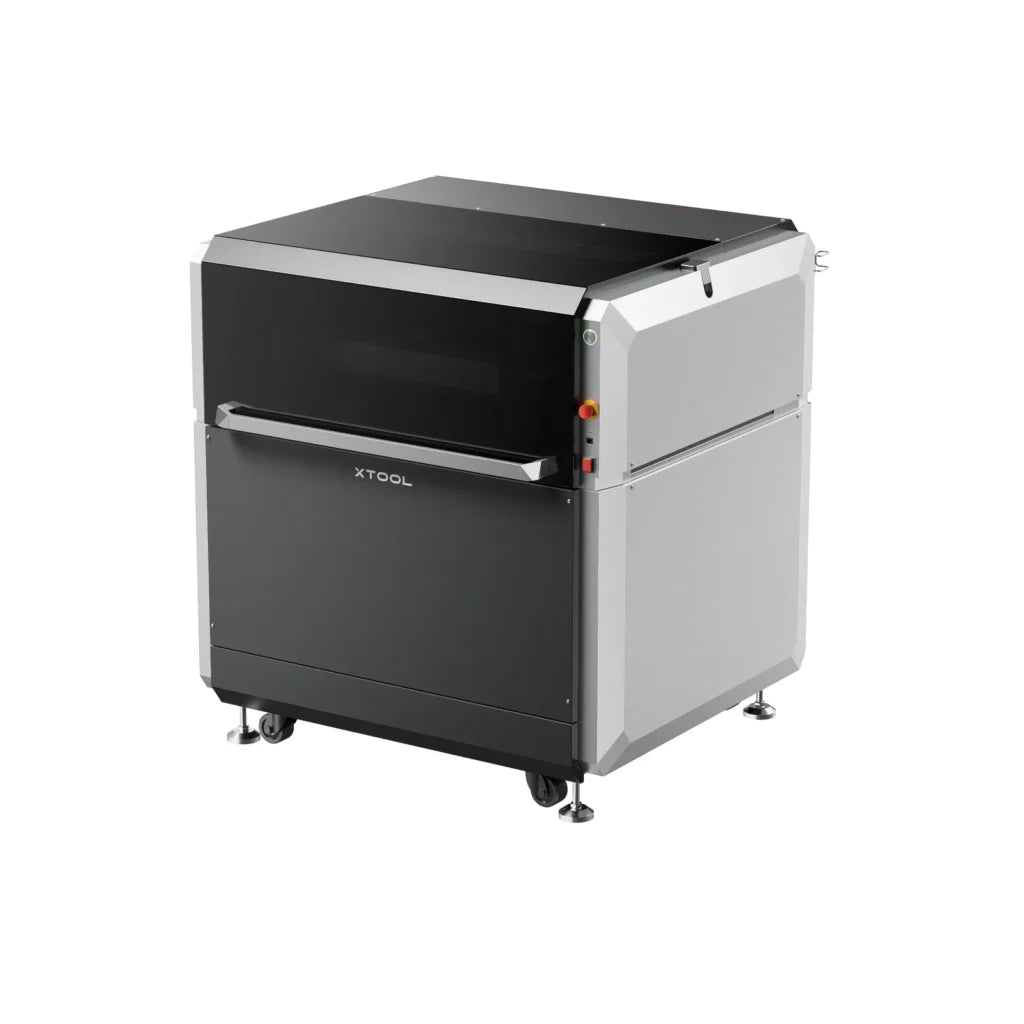

The xTool MetalFab 1200W All-in-One Fiber Laser Welding Machine & CNC Laser Cutter Combines laser welding and CNC laser cuttingin one system.
1. 1200W Fiber Laser
- 1200W laser output
- 1080 ± 10 nm wavelength
- Supports Continuous Wave (CW) and Modulated Wave (MW) operation
- Forced-air cooling for the laser module
- Designed for industrial-grade metal processing.

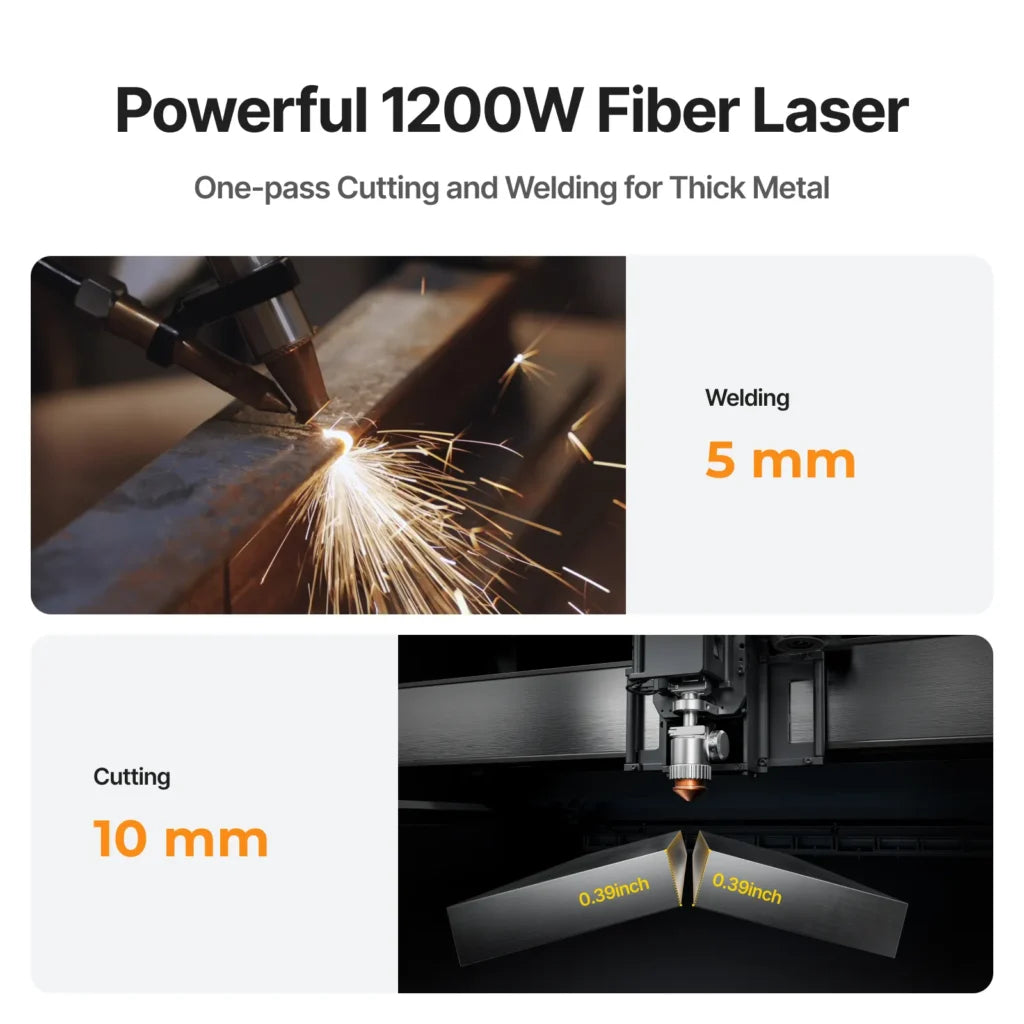

2. Powerful Laser Welding
The 1200W version can weld metals including:
- Stainless steel
- Carbon/low-alloy steel
- Galvanized steel
- Aluminum alloys
- Brass
- Titanium and other compatible alloys
xTool specifies welding capability up to approximately 5 mm for several common metals, depending on material and conditions.
3. CNC Laser Cutting
When combined with the MetalFab CNC Cutter, the 1200W system can achieve approximately:
4. Up to 0.1 mm Cutting Precision
xTool claims processing accuracy of up to 0.1 mm under optimized conditions, with a narrow laser kerf for detailed metal cutting.

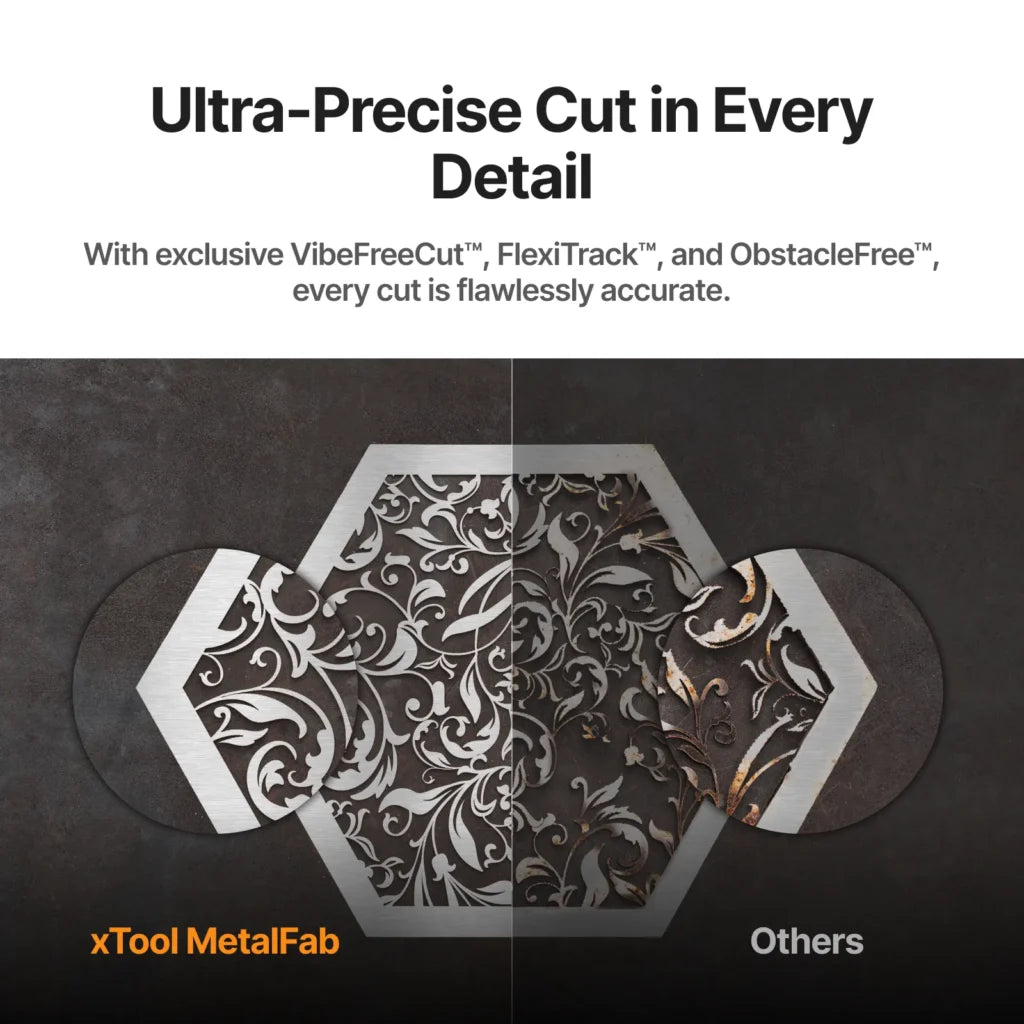

5. VibeFreeCut
A motion-control system designed to minimize vibration during CNC cutting, helping maintain:
- Cleaner edges
- Better dimensional accuracy
- More consistent cuts
6. FlexiTrack
The system continuously monitors the distance between the cutting head and workpiece and automatically adjusts the Z-axis to maintain the appropriate focus.

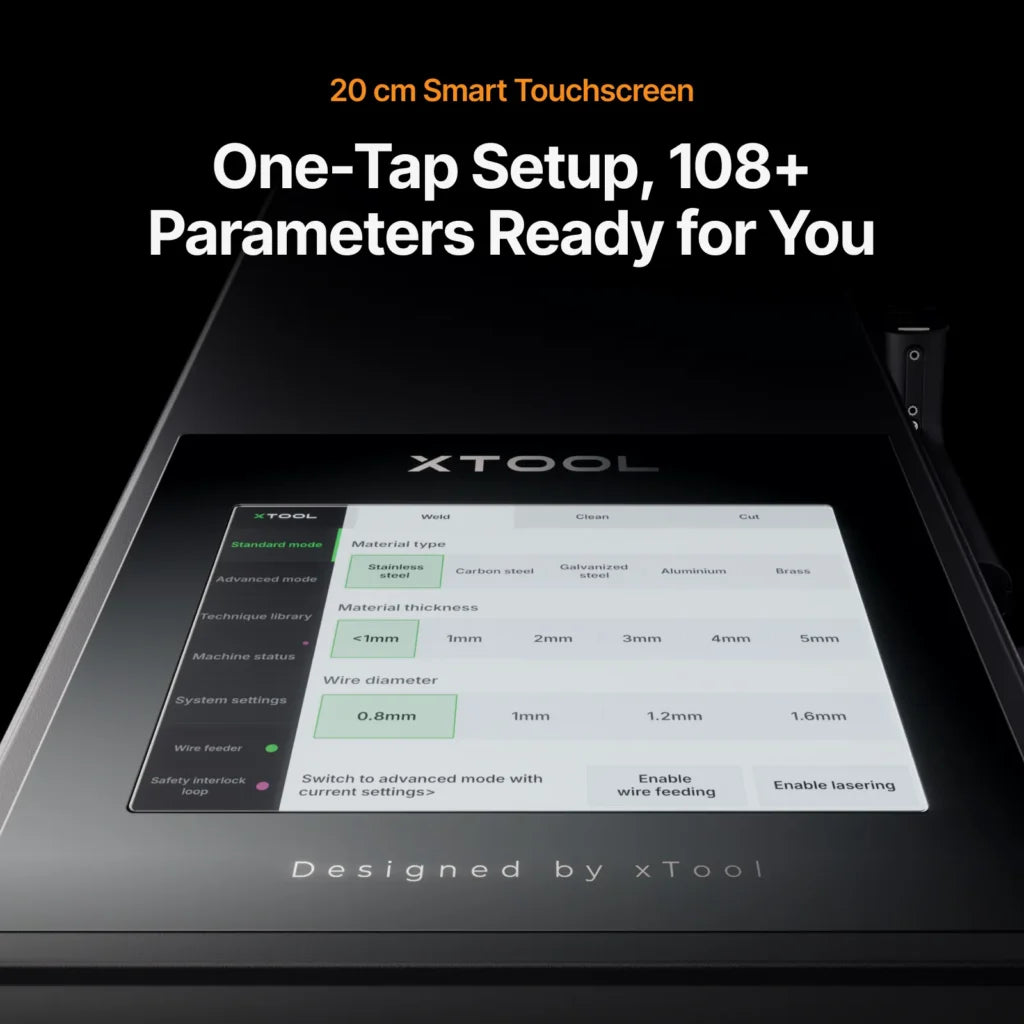

7. Built-in Parameter Assistance
The MetalFab ecosystem provides software-assisted material and processing parameters, reducing the amount of manual trial and error when setting up cutting and welding jobs.
8. External Wire Feeder
The 1200W model includes a dedicated wire feeder supporting:
-
0.8 / 1.0 / 1.2 / 1.6 mm wire
- Up to 15 kg spool weight
- Wire feeding speed of 2–100 mm/s.

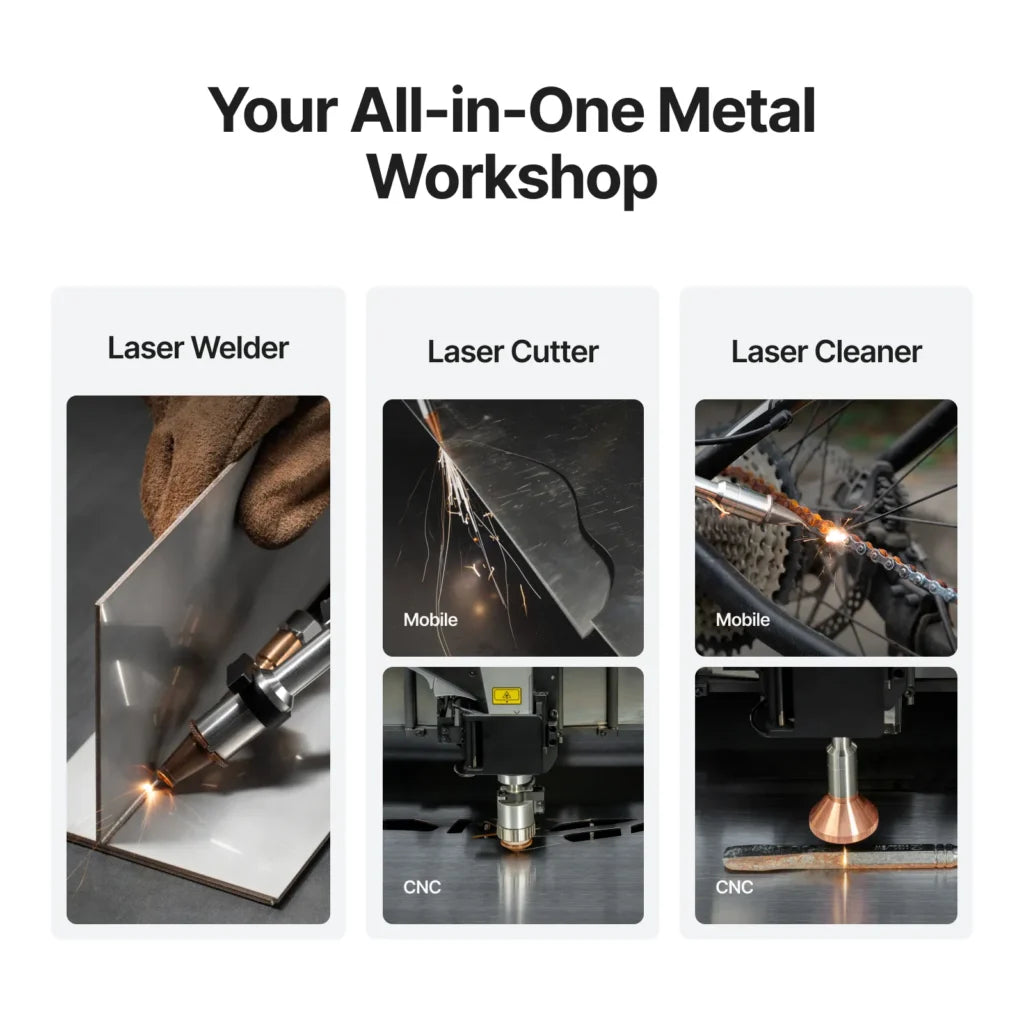

9. CNC + Handheld Welding in One System
The key selling point is that one laser source can be used for handheld welding and, with the CNC Cutter, automated sheet-metal cutting rather than requiring separate welding and cutting machines.

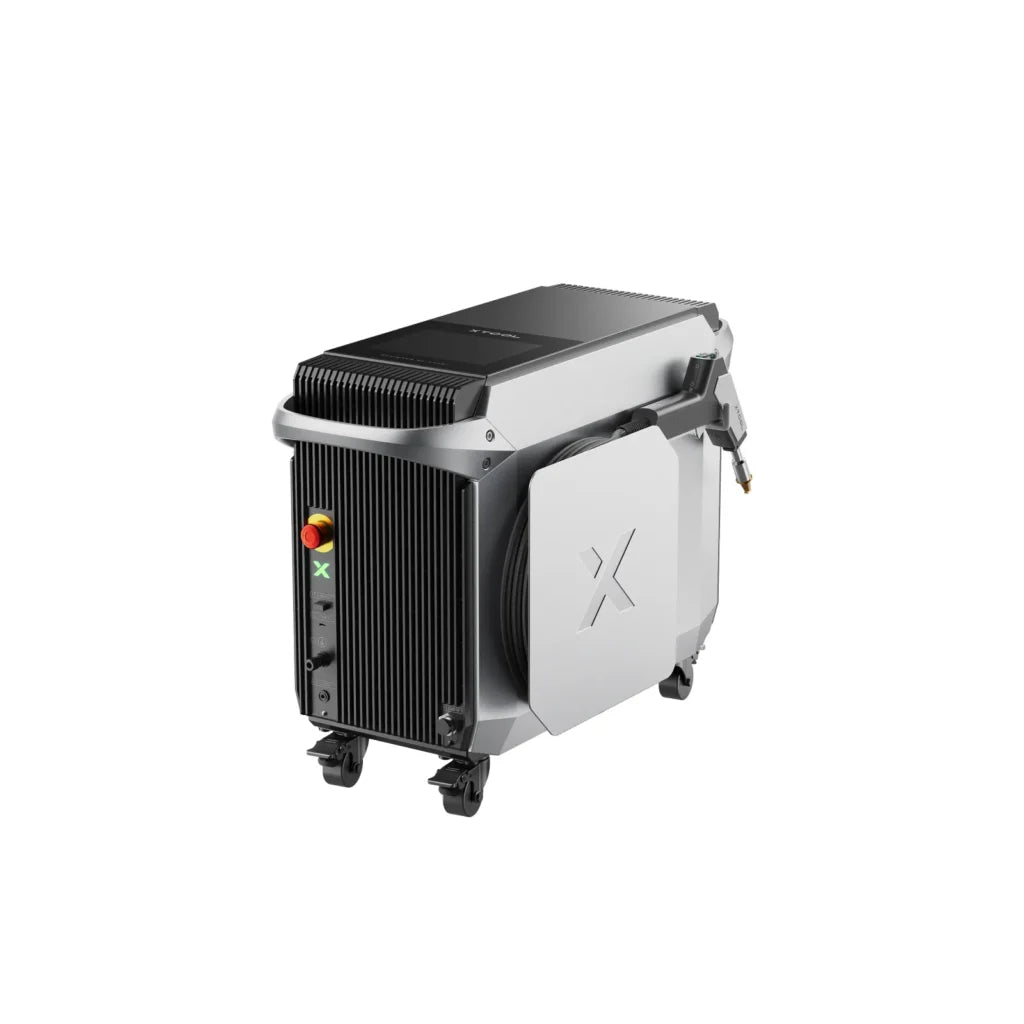

10. Electrical & Physical Specifications
For the 1200W laser welder:
-
Rated voltage: 200–240 V
-
Full-load current: 21 A
-
Rated power: 4200 W
-
Main unit: 327 × 728 × 512 mm
-
Main-unit weight: 38.2 kg
-
Laser head cable: 5 m.
11. Safety Features
The system includes features such as:
- Emergency-stop button
- Safety circuit loop
- USB key lock
- Grip-sensing button on the welding
